Type 01314 - Actuated Globe Valve

Datasheet ID: CR_01314

Field of application

chevron-down

Applications:

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)

Description

chevron-down

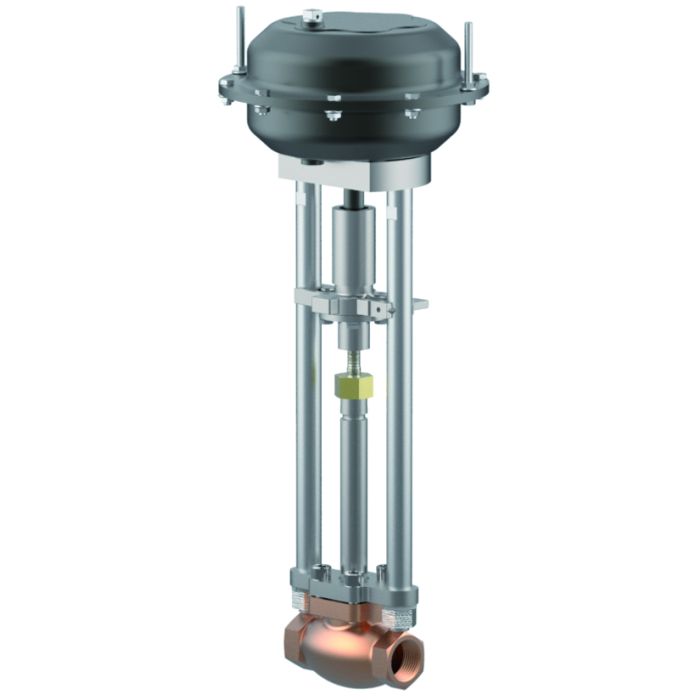

Cryogenic-Globe Valves with Pneumatic Actuator, PN50

Bronze body and stainless steel topwork (internal parts bronze)

Actuator - air opens, spring closes or contrary

"¦live loaded¦" gland packing

"¦cleaned and degreased for oxygen service¦" - the actuator is not cleaned and

degreased for oxygen

Part No. 01314.X.*011

Female thread connection (G) acc. to ISO 228/1

Part No. 01314.X.*016

Female thread connection NPT acc. to ANSI B 1.20.1

Available accessories:

· Solenoid valve

· Limit switch

· Electropneumatic positioner etc.

Available options - on request only:

· Actuator “¦cleaned and degreased for oxygen sevice¦”

· Electric actuator · Valve with check disc

Certificates

chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
07/201/1321/Z/0278/17/oD/0002
0045/201/1201/Z/00649/23/oD/001(00)
type-examination for LNG (DIN EN 12567) chevron-down
LNG-Certificate_01XXX_02XXX_03XXX_05XXX_06XXX_08XXX_09XXX_11XX
License of Special Equipment (China) (TS) chevron-down
TSX71000520230057
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
0879-PESR-DD1-23290-4-DE
Pressure Equipment Directive (2014/68/EU) chevron-down
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
Ukraine (Ukraine) chevron-down
UA.276.127.03-26
UA.D.127.04-26

Data sheets

chevron-down
CR_01314_en.pdf

Declarations of Conformity

chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
TTV (DE, EN, ES)
TTV (DE, EN, CN)
TTV (DE, EN, CZ)
TTV (DE, EN, FR)
TTV (DE, EN, IT)
TTV (DE, EN, NL)
TTV (DE, EN, PL)
TTV (DE, EN, RU)
Pressure Equipment Directive (2014/68/EU) chevron-down
001TTV (DE, EN, CN)
001TTV (DE, EN, CZ)
001TTV (DE, EN, ES)
001TTV (DE, EN, FR)
001TTV (DE, EN, IT)
001TTV (DE, EN, NL)
001TTV (DE, EN, PL)
001TTV (DE, EN, RU)
002TTV (DE, EN, CN)
002TTV (DE, EN, CZ)
002TTV (DE, EN, ES)
002TTV (DE, EN, FR)
002TTV (DE, EN, IT)
002TTV (DE, EN, NL)
002TTV (DE, EN, PL)
002TTV (DE, EN, RU)
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
002TTV (EN)
More Information
Type (Series) 01314
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
SKU CR_01314

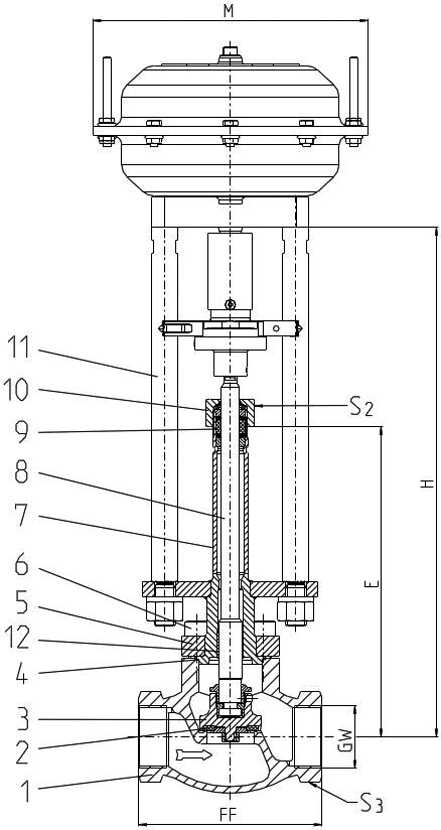

Materials

Materials

DIN EN

ASTM

1

Body

CC491K

B 62 UNS C83600

2

Valve seal

PTFE / Carbon filled (25%)

3

Disc

CW614N

B 283 UNS C38500

4

Bonnet gasket

PTFE

5

Headpiece

1.4301

A 276 Grade 304

6

Bolts

1.4301/A2

A 194 B8

7

Elongation tube

1.4541

A 213 TP 321

8

Stem

1.4301

A 276 Grade 304

9

Gland packing

Graphite / PTFE / MICA

10

Gland nut

CW614N

B 283 UNS C38500

11

Pillars

1.4404

A 276 Grade 316L

12

Bush

CW452K

B 159 UNS C51900
Versions

Type 01314 - Standard design

Technical data

Nominal size

DN

10

10

15

20

25

32

40

50

Thread size

GW

1/4

3/8

1/2

3/4

1

1-1/4

1-1/2

2

Dimension code

.X.

0200

0300

0400

0600

1000

1200

1400

2000

Face-to-face dimension

FF

60

60

85

85

115

115

140

160

Height

H

370

370

370

370

375

405

420

425

Length

E

195

195

195

200

200

230

230

235

Actuator-Ø

M

dependent on actuator

Wrench size across flats

S2

30

30

30

30

30

36

36

36

Wrench size across flats

S3

rund

rund

30

36

41

rund

60

75

Weight w/o actuator

ca. kg

1.6

1.6

2.3

2.7

3.1

4.3

6.2

9.2

*Kvs-Value

m³/h

1.6

2.2

4.3

6.7

11.5

12.1

22.6

37.1

*Cv-Value

gal/min

1.9

2.6

5.0

7.8

13.4

14.1

26.3

43.2
?
