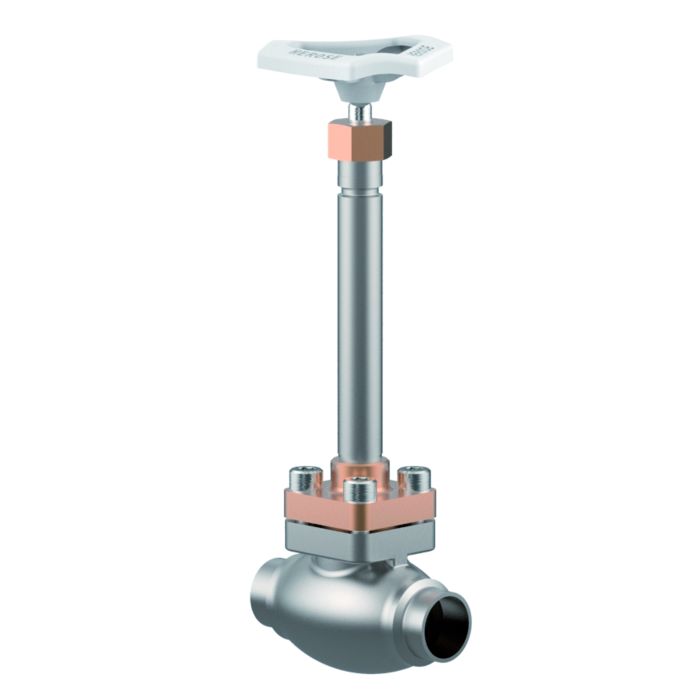

Type 01321 - Globe Valve

Datasheet ID: CR_01321

Field of application

chevron-down

Applications:

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)

Description

chevron-down

Cryogenic-Globe and Globe/Check Valves, PN50 (DN150=PN40)

Stainless steel body and bronze topwork

"¦live loaded¦" gland packing

"¦cleaned and degreased for oxygen service¦"

Part No. 01321.X.001* (H = 270mm)

Part No. 01321.X.002* (H = 370mm)

Part No. 01321.X.501* (H = 270mm) Globe/Check Valve

Part No. 01321.X.502* (H = 370mm) Globe/Check Valve

*Butt weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312

Part No. 01321.X.0014 (H = 270mm)

Part No. 01321.X.0024 (H = 370mm)

Part No. 01321.X.5014 (H = 270mm) Globe/Check Valve

Part No. 01321.X.5024 (H = 370mm) Globe/Check Valve

Socket weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312

Available options - on request only:

· Welded stainless steel stubs acc. to ISO 1127 or ASTM A312 - length FF + 200mm

· Extension H up to 900mm

· Valve with control disc (tapered design)

· Further pipe wall thicknesses

Certificates

chevron-down
type-examination for LNG (DIN EN 12567) chevron-down
LNG-Certificate_01XXX_02XXX_03XXX_05XXX_06XXX_08XXX_09XXX_11XX
Canadian Registration Number (CRN) chevron-down
0C22964.5 - Ontario
0C22964.5N - Nunavut
0C22964.5T - Northwest Territories
0C22964.5Y - Yukon
0C22964.50 - Newfoundland and Labrador
0C22964.51 - British Columbia
0C22964.52 - Alberta
0C22964.53 - Saskatchewan
0C22964.54 - Manitoba
0C22964.56 - Quebec
0C22964.57 - New Brunswick
0C22964.58 - Nova Scotia
0C22964.59 - Prince Edward Island
License of Special Equipment (China) (TS) chevron-down
TSX71000120220016
TSX71000520230057
TS2700G39-2029
Pressure Equipment Directive (2014/68/EU) chevron-down
0045-202-1334-Z-00176-23-D-001(01)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00469/23/D/001(00)
0045/202/1201/Z/00469/23/D/001(00)
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
0879-PESR-B(D)-23290-3-DE
0879-PESR-DD1-23290-4-DE
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
0343/TPED/MUM/PRJ11100541146/3 Iss. 01
0343/TPED/MUM/PRJ11100427971/4 Iss. 02
Transportable Pressure Equipment Regulation 2009 (TPER 2009) chevron-down
0038/UK/TPER/MUM/PRJ11100541146/2
0038/UK/TPER/MUM/PRJ11100427971/2 Iss. 04
Ukraine (Ukraine) chevron-down
UA.276.127.03-26
UA.D.127.04-26

Data sheets

chevron-down
CR_01321_en.pdf

Operating Instructions

chevron-down
HEROSE-Manual-CR_01321-1

Declarations of Conformity

chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
TTV (DE, EN, ES)
TTV (DE, EN, CN)
TTV (DE, EN, CZ)
TTV (DE, EN, FR)
TTV (DE, EN, IT)
TTV (DE, EN, NL)
TTV (DE, EN, PL)
TTV (DE, EN, RU)
Pressure Equipment Directive (2014/68/EU) chevron-down
001TTV (DE, EN, CN)
001TTV (DE, EN, CZ)
001TTV (DE, EN, ES)
001TTV (DE, EN, FR)
001TTV (DE, EN, IT)
001TTV (DE, EN, NL)
001TTV (DE, EN, PL)
001TTV (DE, EN, RU)
002TTV (DE, EN, CN)
002TTV (DE, EN, CZ)
002TTV (DE, EN, ES)
002TTV (DE, EN, FR)
002TTV (DE, EN, IT)
002TTV (DE, EN, NL)
002TTV (DE, EN, PL)
002TTV (DE, EN, RU)
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
002TTV (EN)
003TTV (EN)
More Information
Type (Series) 01321
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
SKU CR_01321

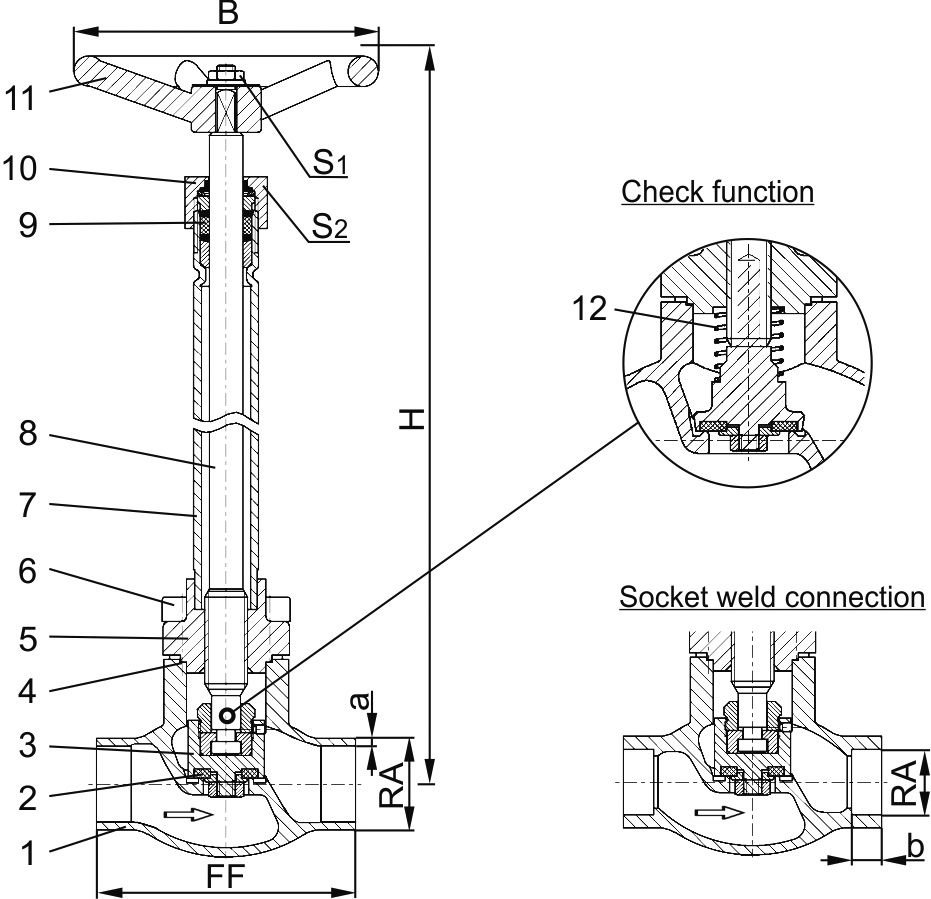

Materials

Materials

DIN EN

ASTM

1

Body

1.4308

A 351 CF8

2

Valve seal up to DN50

PTFE / Carbon filled (25%)

2a

Valve seal from DN65

PTFE

3

Disc up to DN65

CW614N

B 283 UNS C38500

3a

Disc from DN80

CC493K

B 505 UNS C93200

4

Bonnet gasket

PTFE

5

Headpiece

CC493K

B 505 UNS C93200

6

Bolts

1.4301/A2

A 194 B8

7

Elongation tube

1.4541

A 213 TP 321

8

Stem

1.4301

A 276 Grade 304

9

Gland packing

Graphite / PTFE

10

Gland nut

CW614N

B 283 UNS C38500

11

Handwheel

Aluminium alloy

12

Spring

CW452K

B 159 UNS C51900
Versions

Type 01321 - Standard design

Technical data

Nominal size

DN

10

15

15

20

25

32

40

40

50

65

80

100

150

Dimension code

.X.

1012

1517

1521

2026

2533

3238

4042

4048

5060

657x

8088

0114

0168

Face-to-face dimension

FF

70

85

85

100

115

115

130

130

155

205

245

280

400

Height

H

270mm or 370mm

320/370

320/370

370

420

Outside pipe-Ø ISO 1127

RA

12.0

17.2

21.3

26.9

33.7

38.0

42.4

48.3

60.3

76.1

88.9

114.3

168.3

Wall thickness pipe ISO 1127

a

1.0

1.6

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.9

3.2

6.0

7.1

Outside pipe-Ø ASTM A312

RA

13.72

17.15

21.34

26.67

33.40

-

42.16

48.26

60.32

73.02

88.90

114.30

168.27

Wall thickness pipe ASTM A312

a

dimensions acc. to S10 or S40

Socket depth

b

6

10

10

13

13

-

13

13

16

16

16

20

20

Handwheel-Ø

B

100

100

100

100

100

125

125

125

125

200

250

315

360

Wrench size across flats

S1

7

7

7

7

7

10

10

10

10

10

10

12

15

Wrench size across flats

S2

30

30

30

30

30

36

36

36

36

36

36

41

41

Weight

ca. kg

1.4

1.65

1.7

2.1

2.4

3.3

4.7

4.7

5.7

12.7

17.0

24.5

54.0

Kvs-Value

m³/h

1.6

3.8

4.3

6.7

11.5

14.0

20.6

22.6

37.1

71.1

104.0

170.0

350.0

Cv-Value

gal/min

1.9

4.4

5.0

7.8

13.4

16.2

23.9

26.3

43.2

82.9

121.3

198.3

408.4
?
