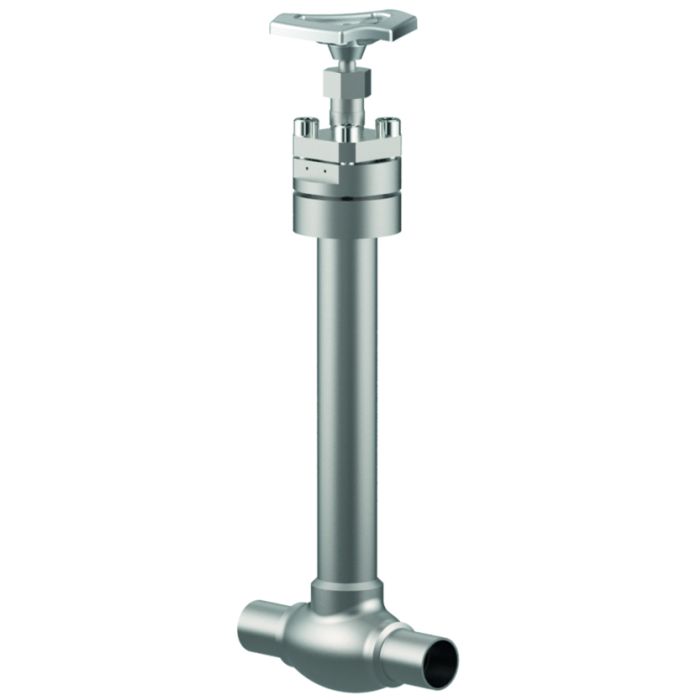

Type 01420 - Top-Entry-Valve T-Model

Datasheet ID: CR_01420_2

Field of application

chevron-down

Applications:

Approved for air gases, vapours and cryogenic liquefied gases.

Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)

Description

chevron-down

Cryogenic-Globe Valves, PN50

Stainless steel body and topwork,

"¦live loaded¦" gland packing

"¦cleaned and degreased for oxygen service¦"

Part No. 01420.X.CD21 (DN15, DN25)

Part No. 01420.X.CD31 (DN40, DN50)

Available options - on request only:

· Extension H and E acc. to customer specification

Certificates

chevron-down
ClassNK (Class Rules) chevron-down
TA22155M
DNV (Class Rules) chevron-down
TAP00000MM Rev. 3
BV (Class Rules) chevron-down
33354/C0 BV
SMS.W.I./11744/C.0
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
0879-PESR-DD1-23290-4-DE
RINA (Class Rules) chevron-down
MAC322723XG
Pressure Equipment Directive (2014/68/EU) chevron-down
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
Transportable Pressure Equipment Regulation 2009 (TPER 2009) chevron-down
0038/UK/TPER/MUM/PRJ11100534357/2
0038/UK/TPER/MUM/PRJ11100427971/2 Iss. 04
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
0343/TPED/MUM/PRJ11100534357/3
0343/TPED/MUM/PRJ11100427971/4 Iss. 02
ABS (Class Rules) chevron-down
25-0381115-PDA
25-0381115-PDA
092776-7471959-006
Ukraine (Ukraine) chevron-down
UA.276.127.03-26
UA.D.127.04-26

Data sheets

chevron-down
CR_01420_2_en.pdf

Operating Instructions

chevron-down
HEROSE-Manual-CR_01420_2-1

Declarations of Conformity

chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
002TTV (EN)
Pressure Equipment Directive (2014/68/EU) chevron-down
002TTV (DE, EN, CN)
002TTV (DE, EN, CZ)
002TTV (DE, EN, ES)
002TTV (DE, EN, FR)
002TTV (DE, EN, IT)
002TTV (DE, EN, NL)
002TTV (DE, EN, PL)
002TTV (DE, EN, RU)
More Information
Type (Series) 01420
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
SKU CR_01420_2
Materials

Materials

DIN EN

ASTM

1

Body

1.4308

A 351 CF8

2

Valve seal

PCTFE

3

Disc

1.4301

A 276 Grade 304

4

Guide bush

PTFE

5

Stem

1.4301

A 276 Grade 304

6

Elongation tube

1.4306

A 312 Grade 304L

7

Headpiece flange

1.4301

A 276 Grade 304

8

Headpiece

1.4301

A 276 Grade 304

9

Bolts

1.4301

A 193 B8

10

Gland packing

Graphite / PTFE

11

Gland nut

1.4305

A 276 Grade 303

12

Handwheel

Aluminium alloy

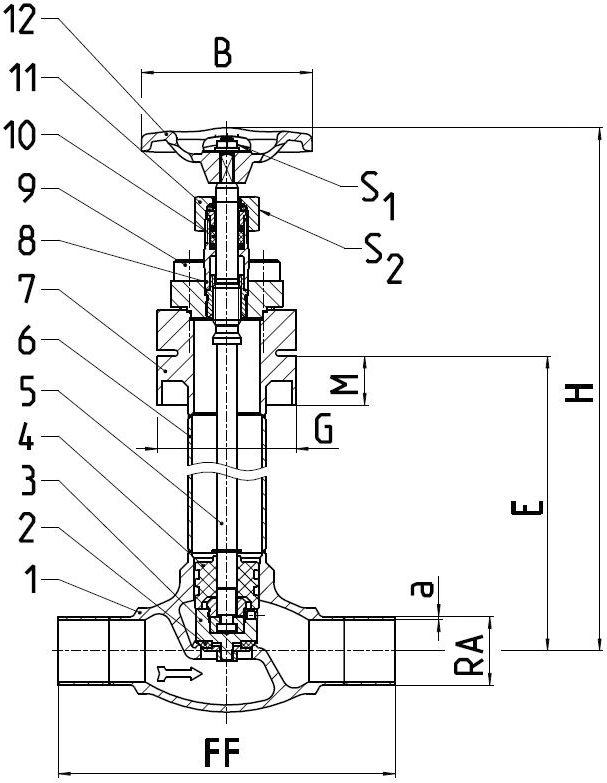

Versions

Type 01420 - T-Model

Technical data

Nominal size

DN

15

25

40

50

Dimension code

.X.

1521

2533

4048

5060

Face-to-face dimension

FF

85

115

130

155

Height

H

401

402

498

519

Handwheel-Ø

B

100

100

200

200

Outside pipe -Ø ASTM A312

RA

21.34

33.70

48.26

60.33

Wall thickness pipe ASTM A312

a

1.6

1.6

1.6

1.6

Length

E

290

290

350

350

Length

G

68

68

109

134.5

Length

M

14

24

18.5

21.5

Wrench size across flats

S1

10

10

13

13

Wrench size across flats

S2

27

27

32

32

Weight

ca. kg

2.2

3.5

7.2

12.4

Kvs-Value

m³/h

4.3

11.5

22.6

37.1

Cv-Value

gal/min

5.0

13.4

26.3

43.2
