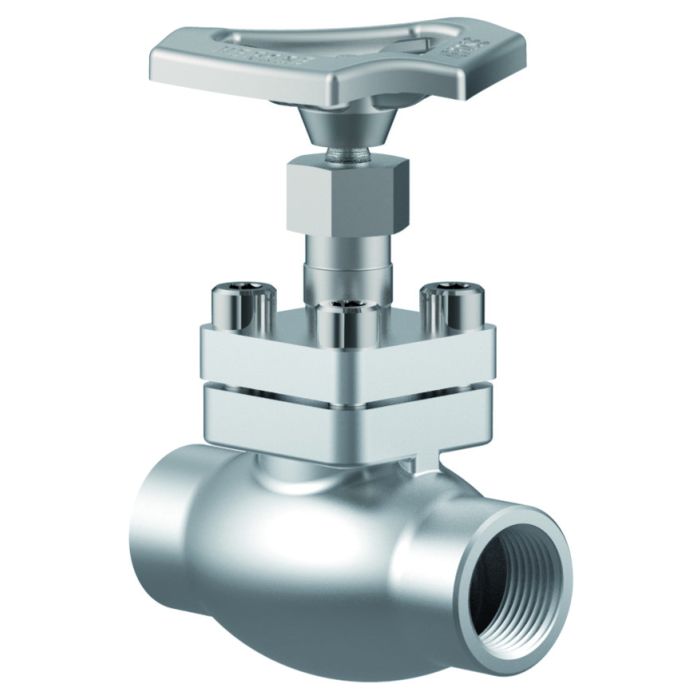

Type 01655 - Globe Valve
The product shown in the picture may differ from the product sold.
Field of application
Applications:
Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.
Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)
Recommended working temperature: -60°C / -76°F (213K) up to +120°C / +248°F (393K)
Description
Cryogenic-Globe and Globe/Check Valves, PN50
“¦Fire safe¦” type test approval acc. to EN ISO 10497
Stainless steel body and topwork,
“¦live loaded¦” gland packing
“¦cleaned and degreased for oxygen service¦"
Part No. 01655.X.0001
Part No. 01655.X.5001 Globe/Check Valve
Female thread connection (G) acc. to ISO 228/1
Part No. 01655.X.0006
Part No. 01655.X.5006 Globe/Check Valve
Female thread connection NPT acc. to ANSI B 1.20.1
Available options - on request only:
· Female thread connection (R) acc. to ISO 7-Rc
· Valve with control disc (tapered design)
Certificates
Transportable Pressure Equipment Directive (2010/35/EU)
type-examination for LNG (DIN EN 12567)
type-examination fire-safe (DIN EN ISO 10497)
Canadian Registration Number (CRN)
ClassNK (Class Rules)
DNV (Class Rules)
License of Special Equipment (China) (TS)
BV (Class Rules)
Pressure Equipment Safety Regulation 2016 (PESR 2016)
Pressure Equipment Directive (2014/68/EU)
Lloyd's Register (Class Rules)
ABS (Class Rules)
Ukraine (Ukraine)
Data sheets
Declarations of Conformity
Transportable Pressure Equipment Directive (2010/35/EU)
Pressure Equipment Safety Regulation 2016 (PESR 2016)
Pressure Equipment Directive (2014/68/EU)
Live Stock: Out-Of Stock pcs (ON STOCK)
| Type (Series) | 01655 |
|---|---|
| Solution | LNG, Air Gases |
| Solution Area | Transport, Storage, Refueling, Processes |
| SKU | CR_01655 |

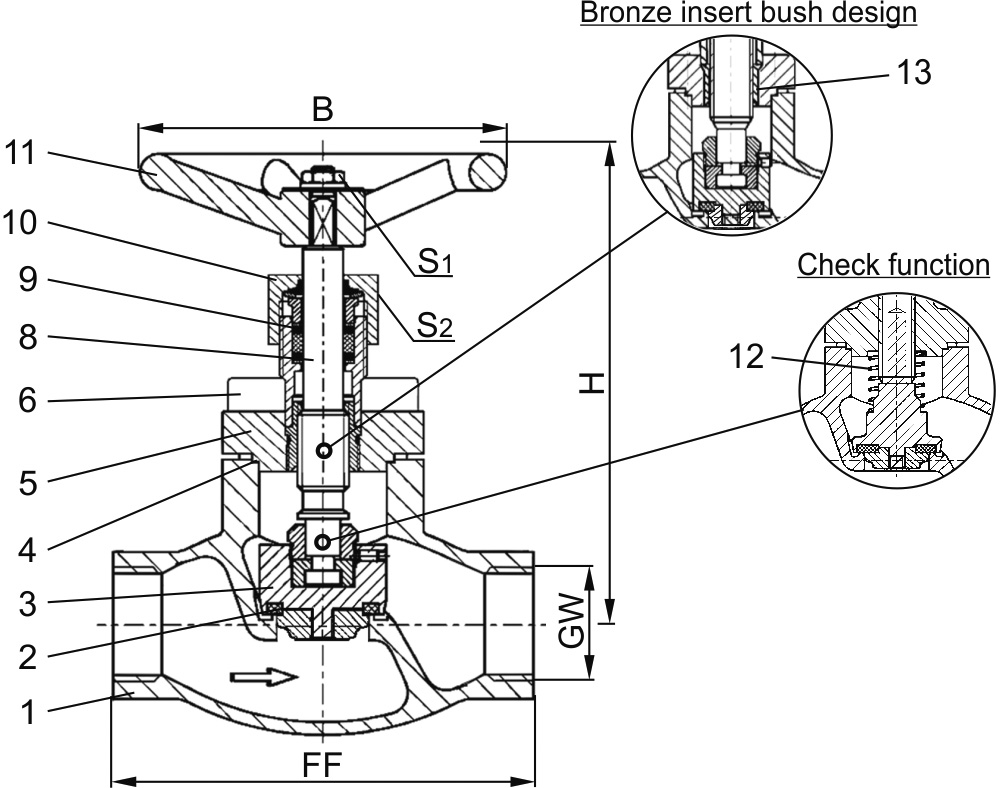

Materials |
DIN EN |
ASTM |
|
|---|---|---|---|
1 |
Body |
1.4308 |
A 351 CF8 |
2 |
Valve seal |
PTFE / Carbon filled (25%) |
|
3 |
Disc |
1.4301 |
A 276 Grade 304 |
4 |
Bonnet gasket |
Graphite |
|
5 |
Headpiece |
1.4301 / 1.4308 |
A 276 Grade 304 / A 351 CF8 |
6 |
Bolts |
1.4301/A2 |
A 194 B8 |
8 |
Stem |
1.4301 |
A 276 Grade 304 |
9 |
Gland packing |
Graphite / PTFE / MICA |
|
10 |
Gland nut |
1.4305 |
A 276 Grade 303 |
11 |
Handwheel |
1.4409 |
A 351 CF3M |
12 |
Spring |
1.4310 |
A 313 Grade 301 |
13 |
Bush |
CW452K |
B 159 UNS C51900 |
Type 01655 - Standard design |
Technical data |
||||||||
|---|---|---|---|---|---|---|---|---|---|
Nominal size |
DN |
10 |
10 |
15 |
20 |
25 |
40 |
40 |
50 |
Thread size |
GW |
1/4 |
3/8 |
1/2 |
3/4 |
1 |
1-1/4 |
1-1/2 |
2 |
Dimension code |
.X. |
0200 |
0300 |
0400 |
0600 |
1000 |
1200 |
1400 |
2000 |
Face-to-face dimension |
FF |
70 |
70 |
85 |
100 |
115 |
130 |
130 |
155 |
Height |
H |
140 |
140 |
140 |
140 |
140 |
175 |
175 |
200 |
Handwheel-Ø |
B |
100 |
100 |
100 |
100 |
100 |
125 |
125 |
125 |
Wrench size across flats |
S1 |
7 |
7 |
7 |
7 |
7 |
10 |
10 |
10 |
Wrench size across flats |
S2 |
30 |
30 |
30 |
30 |
30 |
36 |
36 |
36 |
Weight |
ca. kg |
1.0 |
1.0 |
1.3 |
1.7 |
2.0 |
4.2 |
4.2 |
6.7 |
Kvs-Value |
m³/h |
1.6 |
2.2 |
4.3 |
6.7 |
11.5 |
20.6 |
22.6 |
37.1 |
Cv-Value |
gal/min |
1.9 |
2.6 |
5.0 |
7.8 |
13.4 |
23.9 |
26.3 |
43.2 |
