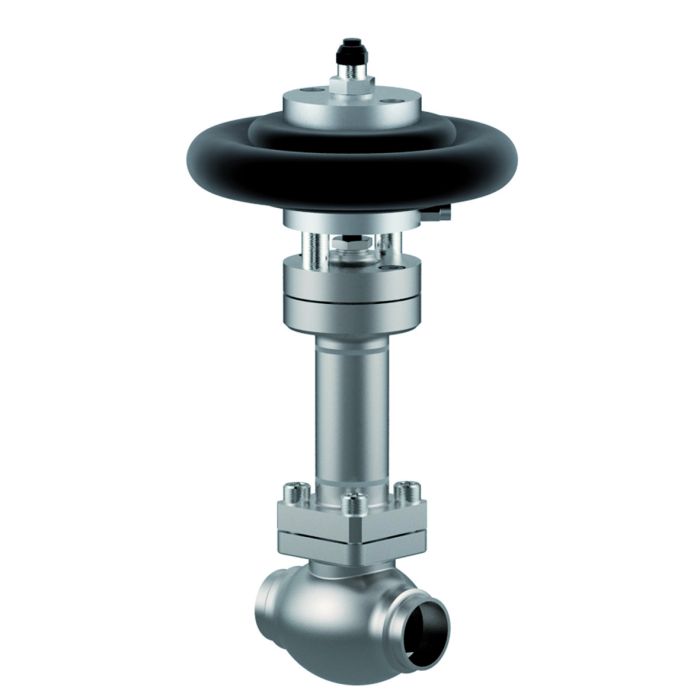

Type 01753 - Actuated Trailervalve

Datasheet ID: CR_01753

Field of application

chevron-down

Applications:

Approved for air gases, vapours and cryogenic liquefied gases incl. H2 and LNG.

Working temperature: -255°C / -427°F (18K) up to +120°C / +248°F (393K)

Ambient temperature actuator: -50°C / -58°F (223K) up to +70°C / +158°F (343K)

Description

chevron-down

Cryogenic-Globe Valves with Pneumatic Actuator, PN50

air pressure for operation 6.0 bar g (maximum 10.0 bar g), push-in connection 8mm

Stainless steel body and topwork,

Actuator - air opens, spring closes

“¦live loaded¦” gland packing

“¦cleaned and degreased for oxygen service¦" - the actuator is not cleaned and degreased for oxygen

maximum working pressure of the valve depending on nominal size

Part No. 01753.X.T0**

* Butt weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312

Part No. 01753.X.T0*4

Socket weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312

Available options - on request only:

· Welded stainless steel stubs acc. to ISO 1127 or ASTM A312 - length FF + 200mm

· Weather protection hood

Certificates

chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
07/201/1321/Z/0277/17/oD/0002
0045/201/1201/Z/00649/23/oD/001(00)
type-examination for LNG (DIN EN 12567) chevron-down
LNG-Certificate_01XXX_02XXX_03XXX_05XXX_06XXX_08XXX_09XXX_11XX
ClassNK (Class Rules) chevron-down
TA22155M
License of Special Equipment (China) (TS) chevron-down
TSX71000120220019
TSX71000520230057
TSF700D36-2029
DNV (Class Rules) chevron-down
TAP00000MM Rev. 3
BV (Class Rules) chevron-down
33354/C0 BV
SMS.W.I./11744/C.0
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
0879-PESR-DD1-23290-4-DE
RINA (Class Rules) chevron-down
MAC322723XG
Pressure Equipment Directive (2014/68/EU) chevron-down
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
Lloyd's Register (Class Rules) chevron-down
LR2508712TA-02
LR2695076QAES
ABS (Class Rules) chevron-down
25-0381115-PDA
25-0381115-PDA
092776-7471959-006

Data sheets

chevron-down
CR_01753_en.pdf

Declarations of Conformity

chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
TTV (DE, EN, ES)
TTV (DE, EN, CN)
TTV (DE, EN, CZ)
TTV (DE, EN, FR)
TTV (DE, EN, IT)
TTV (DE, EN, NL)
TTV (DE, EN, PL)
TTV (DE, EN, RU)
Pressure Equipment Directive (2014/68/EU) chevron-down
001TTV (DE, EN, CN)
001TTV (DE, EN, CZ)
001TTV (DE, EN, ES)
001TTV (DE, EN, FR)
001TTV (DE, EN, IT)
001TTV (DE, EN, NL)
001TTV (DE, EN, PL)
001TTV (DE, EN, RU)
002TTV (DE, EN, CN)
002TTV (DE, EN, CZ)
002TTV (DE, EN, ES)
002TTV (DE, EN, FR)
002TTV (DE, EN, IT)
002TTV (DE, EN, NL)
002TTV (DE, EN, PL)
002TTV (DE, EN, RU)
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
002TTV (EN)
More Information
Type (Series) 01753
Solution H2, LNG, Air Gases
Solution Area Manufacturing, Transport, Storage, Refueling, Processes
SKU CR_01753

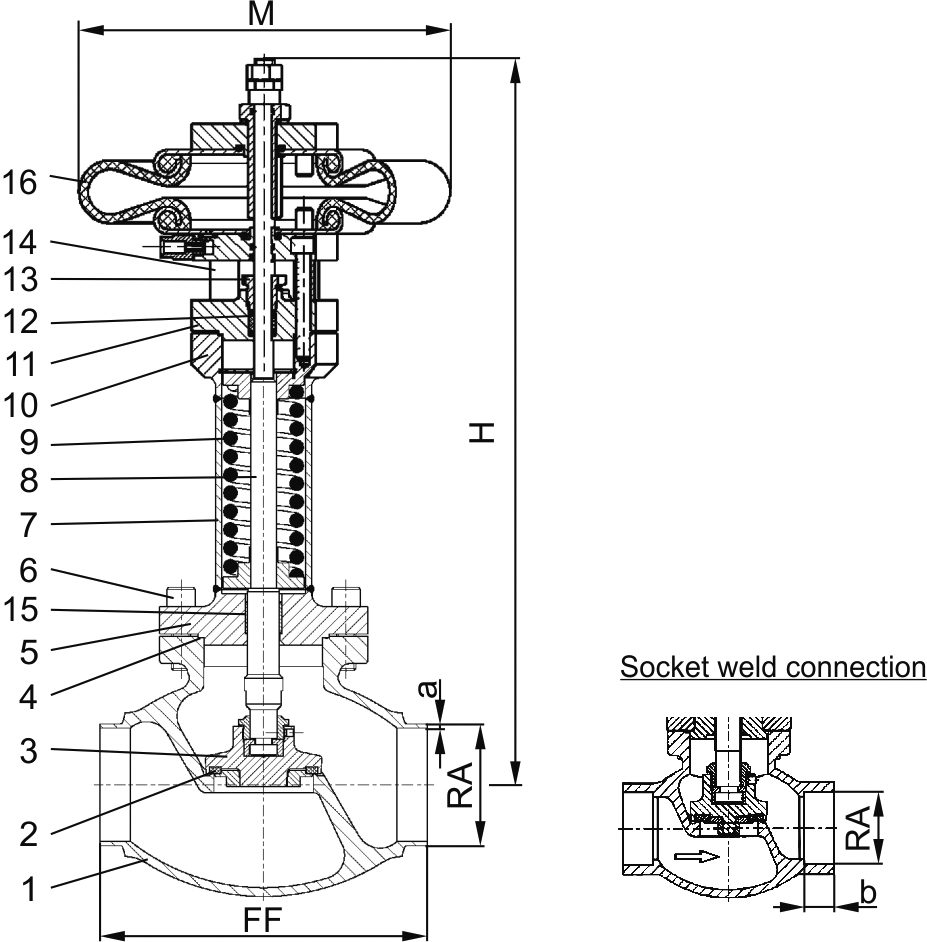

Materials

Materials

DIN EN

ASTM

1

Body

1.4409

A 351 CF3M

2

Valve seal

PCTFE (Kel-F)

3

Disc

1.4404

A 276 Grade 316L

4

Bonnet gasket

Graphite

5

Headpiece

1.4404

A 276 Grade 316L

6

Bolts

1.4571/A4

similar A 194

7

Elongation tube

1.4571

A 213 TP 316Ti

8

Stem

1.4404

A 276 Grade 316L

9

Spring

1.4571

A 313 Grade 316Ti

10

Flange

1.4404

A 276 Grade 316L

11

Headpiece

1.4404

A 276 Grade 316L

12

Gland packing

Graphite / PTFE / MICA

13

Gland nut

1.4571

A 313 Grade 316Ti

14

Pillars

1.4404

A 276 Grade 316L

15

Bush

CW452K

B 159 UNS C51900

16

Actuator

Rubber

Versions

Type 01753 - Standard design

Technical data

Nominal size

DN

20

20

25

40

40

50

65

80

Dimension code

.X.

2021

2026

2533

4042

4048

5060

657x

8088

Face-to-face dimension

FF

100

100

115

130

130

155

205

245

Height

H

443

443

444

441

441

420

448

467

Outside pipe-Ø ISO 1127

RA

21.3

26.9

33.7

42.4

48.3

60.3

76.1

88.9

Wall thickness pipe ISO 1127

a

2.0

2.0

2.0

2.0

2.0

2.0

2.9

3.2

Outside pipe-Ø ASTM A312

RA

21.34

26.67

33.40

42.16

48.26

60.33

73.03

88.90

Wall thickness pipe ASTM A312

a

dimensions acc. to S10 or S40

Socket depth

b

10

10

13

13

13

16

16

16

Actuator-Ø

M

229

229

229

229

229

229

229

229

Weight

ca. kg

7.2

7.2

9.1

10.5

10.5

14.5

17.4

22.5

*Kvs-Value

m³/h

4.3

4.3

11.5

22.6

22.6

37.1

71.1

104.0

*Cv-Value

gal/min

5.0

5.0

13.4

23.9

26.3

43.2

82.9

121.3

Stroke

mm

10

10

14

14

14

14

22

25

Δ P max

bar

50

50

50

16

16

10

3

4

Δ P max with special spring

bar

-

-

-

31

31

18

10

-
?
