Type 01755 - Globe Valve

Datasheet ID: CR_01755

Field of application

chevron-down

Applications:

Approved for air gases, vapours and cryogenic liquefied gases incl. H2 and LNG.

Working temperature: -255°C / -427°F (18K) up to +120°C / +248°F (393K)

Recommended working temperature: -60°C / -76°F (213K) up to +120°C / +248°F (393K)

Description

chevron-down

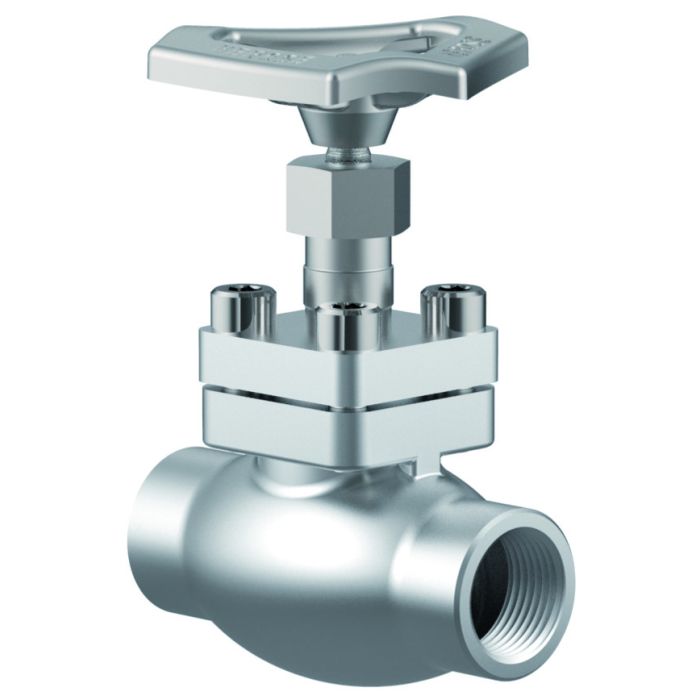

Cryogenic-Globe and Globe/Check Valves, PN50

Stainless steel body and topwork,

“¦live loaded¦” gland packing

“¦cleaned and degreased for oxygen service¦"

Part No. 01755.X.0001

Part No. 01755.X.5001 Globe/Check Valve

Female thread connection (G) acc. to ISO 228/1

Part No. 01755.X.0006

Part No. 01755.X.5006 Globe/Check Valve

Female thread connection NPT acc. to ANSI B 1.20.1

Available options - on request only:

· Female thread connection (R) acc. to ISO 7-Rc

· Valve with control disc (tapered design)

Certificates

chevron-down
ClassNK (Class Rules) chevron-down
TA22155M
DNV (Class Rules) chevron-down
TAP00000MM Rev. 3
TAP00000MM Rev. 3
BV (Class Rules) chevron-down
33354/C0 BV
SMS.W.I./11744/C.0
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
0879-PESR-DD1-23290-4-DE
Pressure Equipment Directive (2014/68/EU) chevron-down
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00469/23/D/001(00)
0045/202/1201/Z/00469/23/D/001(00)
Lloyd's Register (Class Rules) chevron-down
LR2508712TA-02
LR2695076QAES
ABS (Class Rules) chevron-down
25-0381115-PDA
25-0381115-PDA
092776-7471959-006
Ukraine (Ukraine) chevron-down
UA.276.127.03-26
UA.D.127.04-26

Data sheets

chevron-down
CR_01755_en.pdf

Operating Instructions

chevron-down
HEROSE-Manual-CR_01755-1

Declarations of Conformity

chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
002TTV (EN)
Pressure Equipment Directive (2014/68/EU) chevron-down
002TTV (DE, EN, CN)
002TTV (DE, EN, CZ)
002TTV (DE, EN, ES)
002TTV (DE, EN, FR)
002TTV (DE, EN, IT)
002TTV (DE, EN, NL)
002TTV (DE, EN, PL)
002TTV (DE, EN, RU)
More Information
Type (Series) 01755
Solution H2, LNG, Air Gases
Solution Area Manufacturing, Transport, Storage, Refueling, Processes
SKU CR_01755

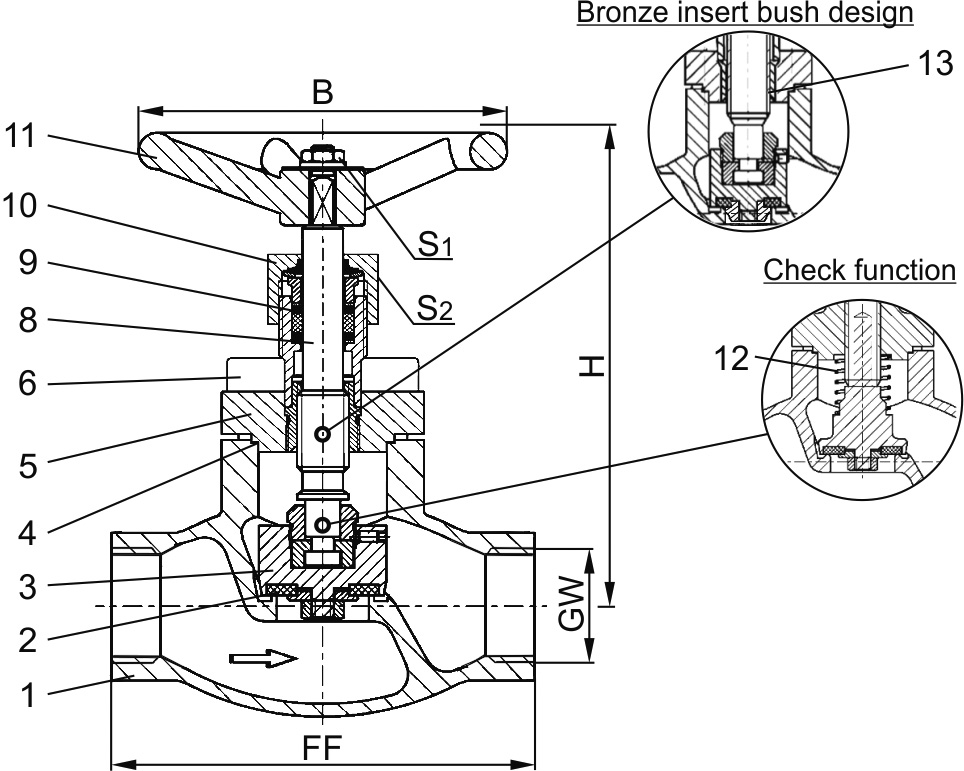

Materials

Materials

DIN EN

ASTM

1

Body

1.4409

A 351 CF3M

2

Valve seal

PCTFE (Kel-F)

3

Disc

1.4404

A 276 Grade 316L

4

Bonnet gasket

Graphite

5

Headpiece

1.4404

A 276 Grade 316L

6

Bolts

1.4571/A4

similar A 194 B8T

8

Stem

1.4404

A 276 Grade 316L

9

Gland packing

Graphite / PTFE / MICA

10

Gland nut

1.4404

A 276 Grade 316L

11

Handwheel

1.4409

A 351 CF3M

12

Spring

1.4571

A 313 Grade 316Ti

13

Bush

CW452K

B 159 UNS C51900
Versions

Type 01755 - Standard design

Technical data

Nominal size

DN

10

10

15

20

25

40

40

50

Thread size

GW

1/4

3/8

1/2

3/4

1

1-1/4

1-1/2

2

Dimension code

.X.

0200

0300

0400

0600

1000

1200

1400

2000

Face-to-face dimension

FF

70

70

85

100

115

130

130

155

Height

H

140

140

140

140

140

175

175

200

Handwheel-Ø

B

100

100

100

100

100

125

125

125

Wrench size across flats

S1

7

7

7

7

7

10

10

10

Wrench size across flats

S2

30

30

30

30

30

36

36

36

Weight

ca. kg

1.0

1.0

1.3

1.7

2.0

4.2

4.2

6.7

Kvs-Value

m³/h

1.6

2.2

4.3

6.7

11.5

20.6

22.6

37.1

Cv-Value

gal/min

1.9

2.6

5.0

7.8

13.4

23.9

26.3

43.2
