Type 02411 - Globe Valve

Datasheet ID: CR_02411_1

Field of application

chevron-down

Applications:

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)

Description

chevron-down

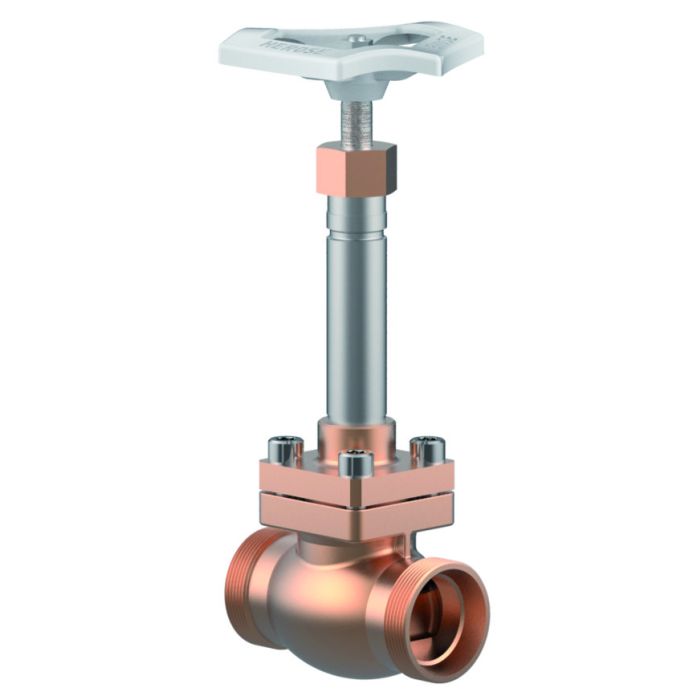

Cryogenic-Globe and Globe/Check Valves, PN50

Bronze body and topwork,

"¦live loaded¦" gland packing

"¦cleaned and degreased for oxygen service¦"

Part No. 02411.X.0011 (H=270mm)

Part No. 02411.X.0021 (H=370mm)

Part No. 02411.X.5011 (H=270mm) Globe/Check Valve

Part No. 02411.X.5021 (H=370mm) Globe/Check Valve

Male thread for union connection

Available options - on request only:

· Extension H up to 900mm

· Valve with control disc (tapered design)

Certificates

chevron-down
type-examination for LNG (DIN EN 12567) chevron-down
LNG-Certificate_01XXX_02XXX_03XXX_05XXX_06XXX_08XXX_09XXX_11XX
License of Special Equipment (China) (TS) chevron-down
TSX71000120220016
TSX71000520230057
TS2700G39-2029
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
0879-PESR-DD1-23290-4-DE
Pressure Equipment Directive (2014/68/EU) chevron-down
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00469/23/D/001(00)
0045/202/1201/Z/00469/23/D/001(00)
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
0343/TPED/MUM/PRJ11100541146/3 Iss. 01
0343/TPED/MUM/PRJ11100427971/4 Iss. 02
Transportable Pressure Equipment Regulation 2009 (TPER 2009) chevron-down
0038/UK/TPER/MUM/PRJ11100541146/2
0038/UK/TPER/MUM/PRJ11100427971/2 Iss. 04
Ukraine (Ukraine) chevron-down
UA.276.127.03-26
UA.D.127.04-26

Data sheets

chevron-down
CR_02411_1_en.pdf

Operating Instructions

chevron-down
HEROSE-Manual-CR_02411_1-1

Declarations of Conformity

chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
TTV (DE, EN, ES)
TTV (DE, EN, CN)
TTV (DE, EN, CZ)
TTV (DE, EN, FR)
TTV (DE, EN, IT)
TTV (DE, EN, NL)
TTV (DE, EN, PL)
TTV (DE, EN, RU)
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
002TTV (EN)
Pressure Equipment Directive (2014/68/EU) chevron-down
002TTV (DE, EN, CN)
002TTV (DE, EN, CZ)
002TTV (DE, EN, ES)
002TTV (DE, EN, FR)
002TTV (DE, EN, IT)
002TTV (DE, EN, NL)
002TTV (DE, EN, PL)
002TTV (DE, EN, RU)
More Information
Type (Series) 02411
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
SKU CR_02411_1

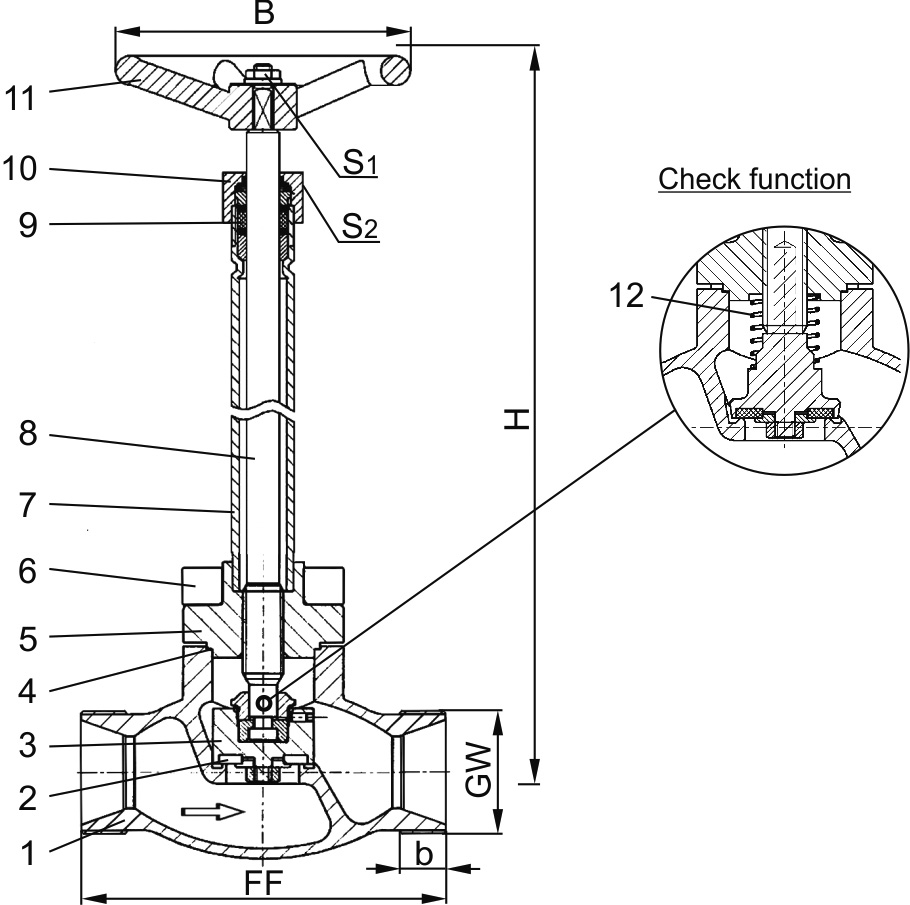

Materials

Materials

DIN EN

ASTM

1

Body

CC491K

B 62 UNS C83600

2

Valve seal

PTFE / Carbon filled (25%)

3

Disc

CW614N

B 283 UNS C38500

4

Bonnet gasket

PTFE

5

Headpiece

CC493K

B 505 UNS C93200

6

Bolts

1.4301/A2

A 194 B8

7

Elongation tube

1.4541

A 213 TP 321

8

Stem

1.4301

A 276 Grade 304

9

Gland packing

Graphite / PTFE

10

Gland nut

CW614N

B 283 UNS C38500

11

Handwheel

Aluminium alloy

12

Spring

CW452K

B 159 UNS C51900
Versions

Type 02411 - Standard design

Technical data

Nominal size

DN

10

20

32

40

50

Dimension code

.X.

0100

0200

0320

0400

0500

Face-to-face dimension

FF

60

85

115

140

160

Height

H

270 mm or 370 mm

Union thread

GW

M26x1.5

M40x2.0

M55x2.0

M65x2.0

M78x2.0

Thread length

b

10

11

14

17

20

Handwheel-Ø

B

100

100

125

125

125

Wrench size across flats

S1

7

7

10

10

10

Wrench size across flats

S2

30

30

36

36

36

Weight

ca. kg

1.4

2.1

3.3

4.7

7.2

Kvs-Value

m³/h

2.2

6.7

12.1

22.6

37.1

Cv-Value

gal/min

2.6

7.8

14.1

26.3

43.2
