HEROSE Type 02411 - Globe Valve

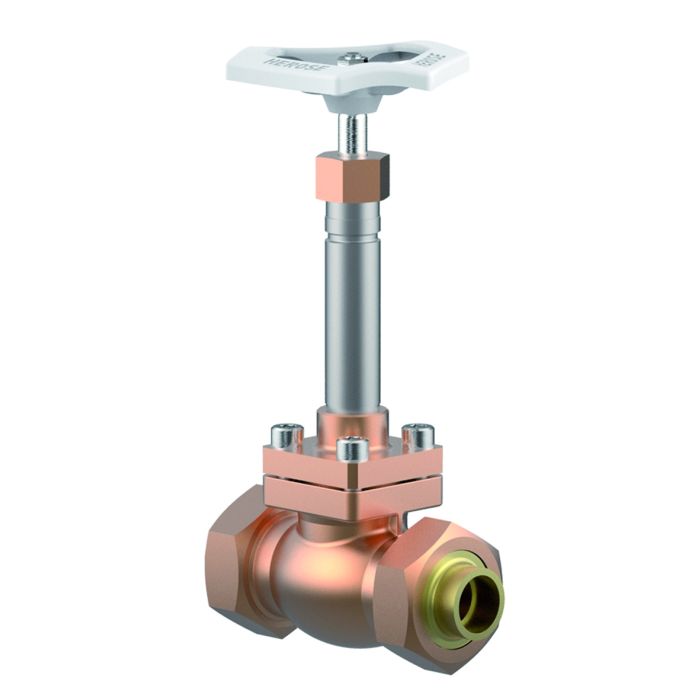

The product shown in the picture may differ from the product sold.

Type 02411 - Globe Valve

Datasheet ID: CR_02411_2

Field of application

Applications:

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)

Description

Cryogenic-Globe and Globe/Check Valves, PN50

Bronze body and topwork,

"¦live loaded¦" gland packing

"¦cleaned and degreased for oxygen service¦"

Part No. 02411.X.0018 (H=270mm)

Part No. 02411.X.0028 (H=370mm)

Part No. 02411.X.5018 (H=270mm) Globe/Check Valve

Part No. 02411.X.5028 (H=370mm) Globe/Check Valve

Completed with union type braze fittings for copper pipes acc. to DIN EN 12449 or ASTM B88

Available options - on request only:

· Extension H up to 900mm

· Valve with control disc (tapered design)

Certificates

type-examination for LNG (DIN EN 12567)

LNG-Certificate_01XXX_02XXX_03XXX_05XXX_06XXX_08XXX_09XXX_11XX

License of Special Equipment (China) (TS)

TSX71000120220016

TSX71000520230057

TS2700G39-2029

Pressure Equipment Safety Regulation 2016 (PESR 2016)

0879-PESR-DD1-23290-4-DE

Pressure Equipment Directive (2014/68/EU)

0045/202/1201/Z/00366/23/D/001(00)

0045/202/1201/Z/00469/23/D/001(00)

Transportable Pressure Equipment Directive (2010/35/EU)

0343/TPED/MUM/PRJ11100541146/3 Iss. 01

0343/TPED/MUM/PRJ11100427971/4 Iss. 02

Transportable Pressure Equipment Regulation 2009 (TPER 2009)

0038/UK/TPER/MUM/PRJ11100541146/2

0038/UK/TPER/MUM/PRJ11100427971/2 Iss. 04

Ukraine (Ukraine)

UA.276.127.03-26

UA.D.127.04-26

Data sheets

CR_02411_2_en.pdf

Operating Instructions

HEROSE-Manual-CR_02411_2-1

Declarations of Conformity

Transportable Pressure Equipment Directive (2010/35/EU)

TTV (DE, EN, ES)

TTV (DE, EN, CN)

TTV (DE, EN, CZ)

TTV (DE, EN, FR)

TTV (DE, EN, IT)

TTV (DE, EN, NL)

TTV (DE, EN, PL)

TTV (DE, EN, RU)

Pressure Equipment Safety Regulation 2016 (PESR 2016)

002TTV (EN)

Pressure Equipment Directive (2014/68/EU)

002TTV (DE, EN, CN)

002TTV (DE, EN, CZ)

002TTV (DE, EN, ES)

002TTV (DE, EN, FR)

002TTV (DE, EN, IT)

002TTV (DE, EN, NL)

002TTV (DE, EN, PL)

002TTV (DE, EN, RU)

More Information
Materials
Versions
Product Variants

More Information

Type (Series)	02411
Solution	LNG, Air Gases
Solution Area	Transport, Storage, Refueling, Processes
SKU	CR_02411_2

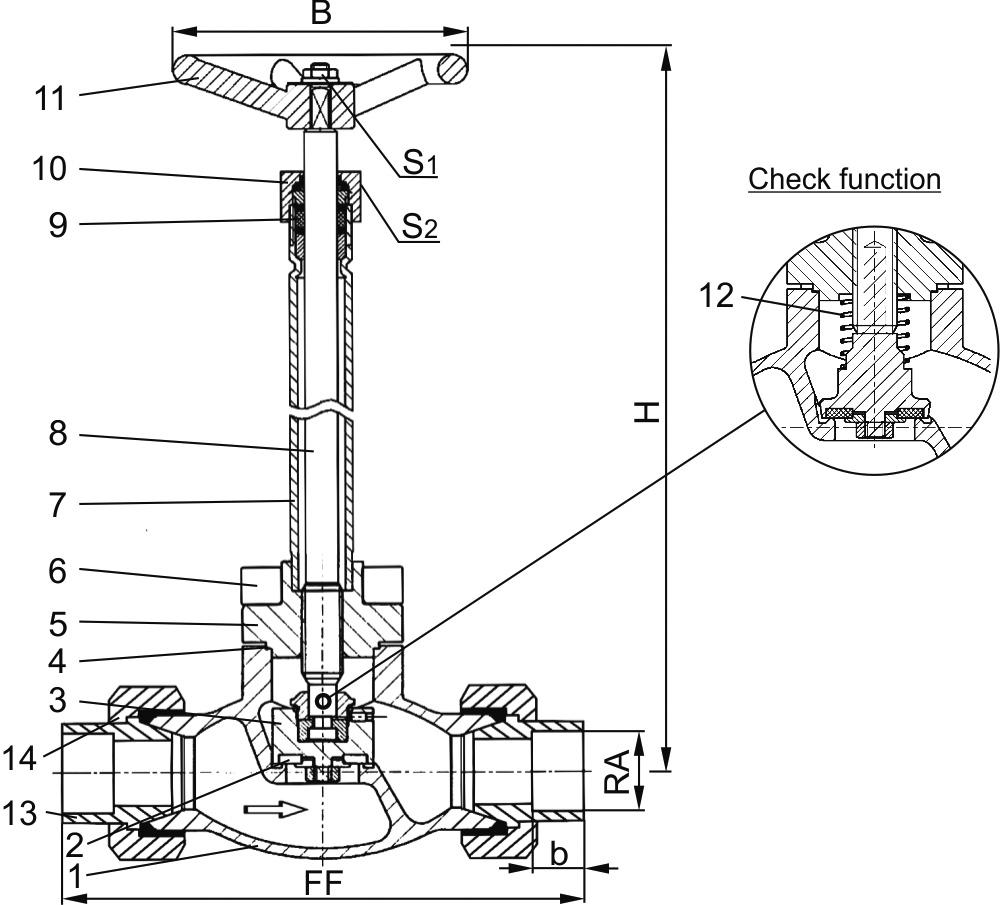

Materials

Materials		DIN EN	ASTM
1	Body	CC491K	B 62 UNS C83600
2	Valve seal	PTFE / Carbon filled (25%)
3	Disc	CW614N	B 283 UNS C38500
4	Bonnet gasket	PTFE
5	Headpiece	CC493K	B 505 UNS C93200
6	Bolts	1.4301/A2	A 194 B8
7	Elongation tube	1.4541	A 213 TP 321
8	Stem	1.4301	A 276 Grade 304
9	Gland packing	Graphite / PTFE
10	Gland nut	CW614N	B 283 UNS C38500
11	Handwheel	Aluminium alloy
12	Spring	CW452K	B 159 UNS C51900
13	Braze fitting	CC493K	B 505 UNS C93200
14	Union nut	CC493K	B 505 UNS C93200

Versions

Type 02411 - Standard design	Technical data
Nominal size	DN	10	10	20	20	32	32	40	50
Dimension code	.X.	1012	1015	1518	2022	2528	3235	4042	5054
Face-to-face dimension	FF	98	98	132	132	171	171	230	230
Height	H		270 mm or 370 mm
Outside pipe-Ø	RA	12.0	15.0	18.0	22.0	28.0	35.0	42.0	54.0
Socket depth	b	11	11	14	14	17	17	17	17
Handwheel-Ø	B	100	100	100	100	125	125	125	125
Wrench size across flats	S₁	7	7	7	7	10	10	10	10
Wrench size across flats	S₂	30	30	30	30	36	36	36	36
Weight	ca. kg	1.5	1.5	2.8	2.8	4.5	4.5	6.8	10.0
Kvs-Value	m³/h	1.6	2.2	4.3	6.7	11.5	12.1	22.6	37.1
Cv-Value	gal/min	1.9	2.6	5.0	7.8	13.4	14.1	26.3	43.2
