Type 03252 - Bellow Sealed Globe Valve

Datasheet ID: CR_03252_1

Field of application

chevron-down

Applications:

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)

Leak rate:: 10-6 mbar ltr / sec outside, 10-4 mbar ltr / sec seat

Description

chevron-down

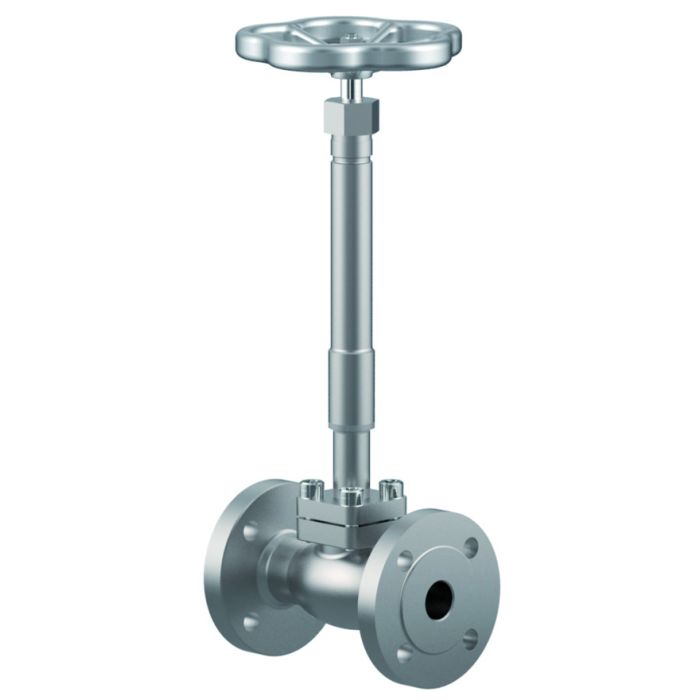

Cryogenic-Bellow Sealed Globe Valve, PN40

Stainless steel body and topwork,

"¦live loaded¦" gland packing

"¦cleaned and degreased for oxygen service¦"

Part No. 03252.X.0022

Flanged connection acc. to DIN EN 1092-1 PN40

Available options - on request only:

· Extension H up to 900mm

· Valve with control disc (tapered design)

Certificates

chevron-down
ClassNK (Class Rules) chevron-down
TA22155M
DNV (Class Rules) chevron-down
TAB00000KD Rev.2
BV (Class Rules) chevron-down
33353/C0 BV
SMS.W.I./11744/C.0
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
0879-PESR-DD1-23290-4-DE
RINA (Class Rules) chevron-down
MAC322723XG
Pressure Equipment Directive (2014/68/EU) chevron-down
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
Lloyd's Register (Class Rules) chevron-down
LR2508712TA-02
LR2695076QAES
ABS (Class Rules) chevron-down
25-0381115-PDA
25-0381115-PDA
Ukraine (Ukraine) chevron-down
UA.276.127.03-26
UA.D.127.04-26

Data sheets

chevron-down
CR_03252_1_en.pdf

Operating Instructions

chevron-down
HEROSE-Manual-CR_03252_1-1

Declarations of Conformity

chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
002TTV (EN)
Pressure Equipment Directive (2014/68/EU) chevron-down
002TTV (DE, EN, CN)
002TTV (DE, EN, CZ)
002TTV (DE, EN, ES)
002TTV (DE, EN, FR)
002TTV (DE, EN, IT)
002TTV (DE, EN, NL)
002TTV (DE, EN, PL)
002TTV (DE, EN, RU)
More Information
Type (Series) 03252
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
SKU CR_03252_1

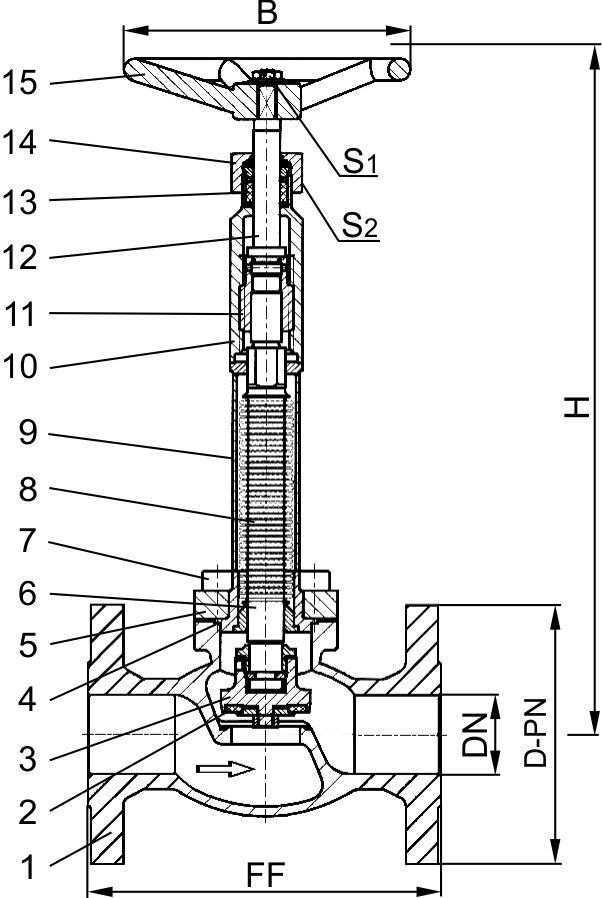

Materials

Materials

DIN EN

ASTM

1

Body

1.4308

A 351 CF8

2

Valve seal

PTFE / Carbon filled (25%)

3

Disc

1.4301

A 276 Grade 304

4

Bonnet gasket

PTFE

5

Headpiece

1.4301

A 276 Grade 304

6

Bellow stem

1.4571

A 276 Grade 316Ti

7

Bolts

1.4301/A2

A 194 B8

8

Bellow

1.4571

A 276 Grade 316Ti

9

Elongation tube

1.4541

A 213 TP 321

10

Headpiece

1.4301

A 276 Grade 304

11

Bush

CW452K

B 159 UNS C51900

12

Stem

1.4301

A 276 Grade 304

13

Gland packing

Graphite / PTFE / MICA

14

Gland nut

1.4305

A 276 Grade 303

15

Handwheel

Aluminium alloy

Versions

Type 03252 - Standard design

Technical data

Nominal size

DN

15

20

25

40

50

Dimension code - Flange EN 1092-1 PN40

.X.

0150

0200

0250

0400

0500

Flange-Ø

D-PN

95

105

115

150

165

Face-to-face dimension

FF

140

150

160

200

230

Height

H

380

380

380

380

380

Handwheel-Ø

B

150

150

150

150

150

Wrench size across flats

S1

7

7

7

10

10

Wrench size across flats

S2

30

30

30

36

36

Weight

ca. kg

3.5

5.0

5.2

10.1

13.8

Kvs-Value

m³/h

4.3

6.7

11.5

22.6

37.1

Cv-Value

gal/min

5.0

7.8

13.4

26.3

43.2
