Type 03323 - Actuated Globe Valve

Datasheet ID: CR_03323_1

Field of application

chevron-down

Applications:

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)

Description

chevron-down

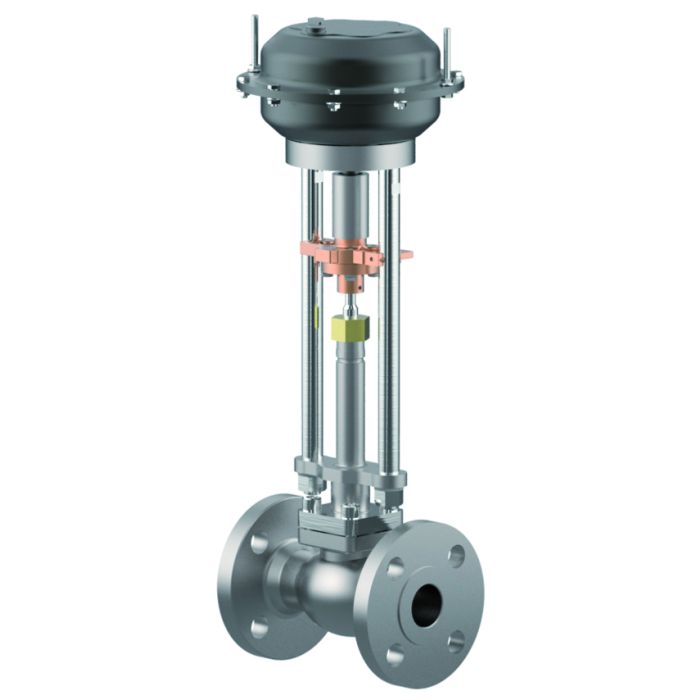

Cryogenic-Globe Valves with Pneumatic Actuator, PN16

Stainless steel body and topwork

Actuator - air opens, spring closes or contrary

"¦live loaded¦" gland packing

"¦cleaned and degreased for oxygen service¦" - the actuator is not cleaned

and degreased for oxygen

Part No. 03323.X.*014

Flanged connection acc. to DIN EN 1092-1 PN16

Available accessories:

· Solenoid valve

· Limit switch

· Electropneumatic positioner etc.

Available options - on request only:

· Actuator - "¦cleaned and degreased for oxygen service¦"

· Electric actuator

· Valve with check disc

· Valve with control disc (tapered design)

Certificates

chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
07/201/1321/Z/0278/17/oD/0002
0045/201/1201/Z/00649/23/oD/001(00)
type-examination for LNG (DIN EN 12567) chevron-down
LNG-Certificate_01XXX_02XXX_03XXX_05XXX_06XXX_08XXX_09XXX_11XX
Pressure Equipment Directive (2014/68/EU) chevron-down
0045-202-1334-Z-00176-23-D-001(01)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
0879-PESR-B(D)-23290-3-DE
0879-PESR-DD1-23290-4-DE
License of Special Equipment (China) (TS) chevron-down
TSX71000520230057

Data sheets

chevron-down
CR_03323_1_en.pdf

Declarations of Conformity

chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
TTV (DE, EN, ES)
TTV (DE, EN, CN)
TTV (DE, EN, CZ)
TTV (DE, EN, FR)
TTV (DE, EN, IT)
TTV (DE, EN, NL)
TTV (DE, EN, PL)
TTV (DE, EN, RU)
Pressure Equipment Directive (2014/68/EU) chevron-down
001TTV (DE, EN, CN)
001TTV (DE, EN, CZ)
001TTV (DE, EN, ES)
001TTV (DE, EN, FR)
001TTV (DE, EN, IT)
001TTV (DE, EN, NL)
001TTV (DE, EN, PL)
001TTV (DE, EN, RU)
002TTV (DE, EN, CN)
002TTV (DE, EN, CZ)
002TTV (DE, EN, ES)
002TTV (DE, EN, FR)
002TTV (DE, EN, IT)
002TTV (DE, EN, NL)
002TTV (DE, EN, PL)
002TTV (DE, EN, RU)
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
002TTV (EN)
003TTV (EN)
More Information
Type (Series) 03323
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
SKU CR_03323_1

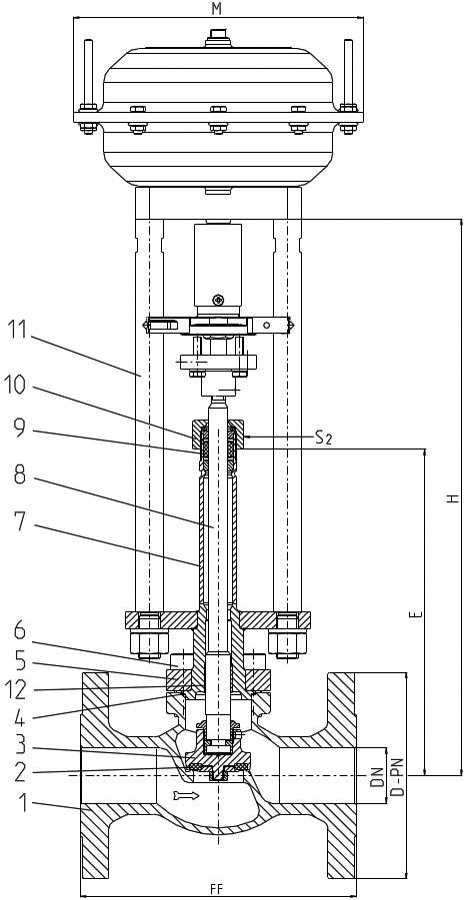

Materials

Materials

DIN EN

ASTM

1

Body

1.4308

A 351 CF8

2

Valve seal up to DN50

PTFE / Carbon filled (25%)

2a

Valve seal from DN65

PTFE

3

Disc

CW614N

B 283 UNS C38500

4

Bonnet gasket

PTFE

5

Headpiece

1.4301

A 276 Grade 304

6

Bolts

1.4301/A2

A 194 B8

7

Elongation tube

1.4541

A 213 TP 321

8

Stem

1.4301

A 276 Grade 304

9

Gland packing

Graphite / PTFE / MICA

10

Gland nut

CW614N

B 283 UNS C38500

11

Pillars

1.4404

A 276 Grade 316L

12

Bush

CW452K

B 159 UNS C51900
Versions

Type 03323 - Standard design

Technical data

Nominal size

DN

15

20

25

40

50

65

80

100

150

Dimension code - Flange EN 1092-1 PN16

.X.

0150

0200

0250

0400

0500

0650

0800

1000

1500

Flange-Ø

D-PN

95

105

115

150

165

185

200

220

285

Face-to-face dimension

FF

140

150

160

200

230

295

310

350

510

Height

H

370

370

375

420

425

510

575

635

685

Length

E

195

200

200

230

235

300

300

300

350

Actuator-Ø

M

dependent on actuator

Wrench size across flats

S2

30

30

30

36

36

36

36

41

41

Weight w/o actuator

ca. kg

4.6

6.5

8.5

12.0

16.0

30.0

36.0

53.0

87.0

*Kvs-Value

m³/h

4.3

6.7

11.5

22.6

37.1

71.1

104.0

170.0

350.0

*Cv-Value

gal/min

5.0

7.8

13.4

26.3

43.2

82.9

121.3

198.3

408.4

Stroke

mm

10

7

9

11

15

23

23

30

40
?
