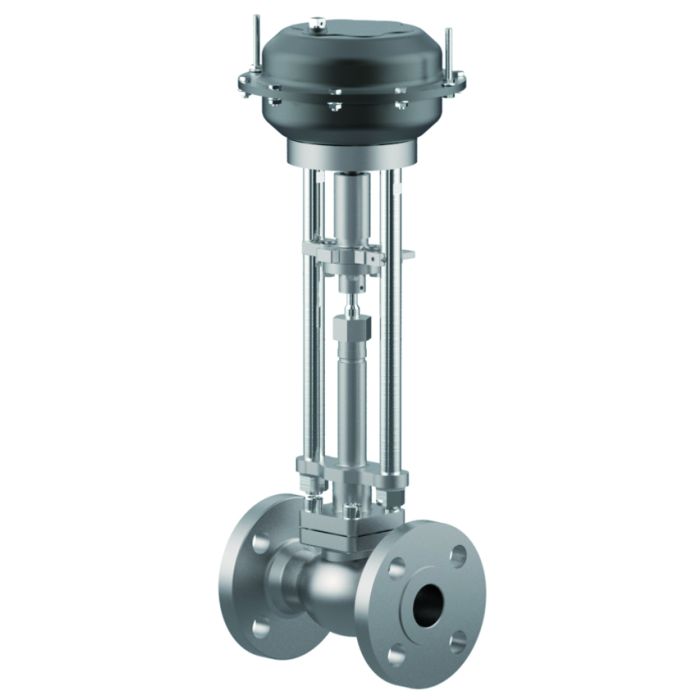

Type 03343 - Actuated Globe Valve
The product shown in the picture may differ from the product sold.
Field of application
Applications:
Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.
Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)
Description
Cryogenic-Globe Valves with Pneumatic Actuator, class 150
Stainless steel body and topwork
Actuator - air opens, spring closes or contrary
"¦live loaded¦" gland packing
"¦cleaned and degreased for oxygen service¦" - the actuator is not cleaned
and degreased for oxygen
Part No. 03343.X.*011
Flanged connection acc. to ASME B16.5 class 150
Available accessories:
· Solenoid valve
· Limit switch
· Electropneumatic positioner etc.
Available options - on request only:
· Actuator - "¦cleaned and degreased for oxygen service¦"
· Electric actuator
· Valve with check disc
· Valve with control disc (tapered design)
Certificates
Transportable Pressure Equipment Directive (2010/35/EU)
type-examination for LNG (DIN EN 12567)
Canadian Registration Number (CRN)
ClassNK (Class Rules)
License of Special Equipment (China) (TS)
DNV (Class Rules)
Pressure Equipment Directive (2014/68/EU)
Pressure Equipment Safety Regulation 2016 (PESR 2016)
BV (Class Rules)
RINA (Class Rules)
Lloyd's Register (Class Rules)
ABS (Class Rules)
Ukraine (Ukraine)
Data sheets
Declarations of Conformity
Transportable Pressure Equipment Directive (2010/35/EU)
Pressure Equipment Directive (2014/68/EU)
Pressure Equipment Safety Regulation 2016 (PESR 2016)
Live Stock: Out-Of Stock pcs (ON STOCK)
| Type (Series) | 03343 |
|---|---|
| Solution | LNG, Air Gases |
| Solution Area | Transport, Storage, Refueling, Processes |
| SKU | CR_03343_4 |

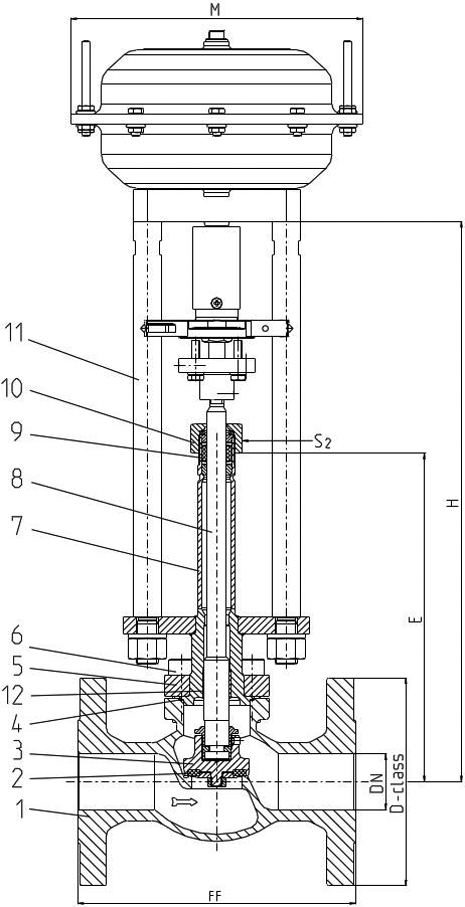

Materials |
DIN EN |
ASTM |
|
|---|---|---|---|
1 |
Body |
1.4308 |
A 351 CF8 |
2 |
Valve seal up to DN50 |
PTFE / Carbon filled (25%) |
|
2a |
Valve seal from DN65 |
PTFE |
|
3 |
Disc |
1.4301 |
A 276 Grade 304 |
4 |
Bonnet gasket |
PTFE |
|
5 |
Headpiece |
1.4301 |
A 276 Grade 304 |
6 |
Bolts |
1.4301/A2 |
A 194 B8 |
7 |
Elongation tube |
1.4541 |
A 213 TP 321 |
8 |
Stem |
1.4301 |
A 276 Grade 304 |
9 |
Gland packing |
Graphite / PTFE / MICA |
|
10 |
Gland nut |
1.4305 |
A 276 Grade 303 |
11 |
Pillars |
1.4404 |
A 276 Grade 316L |
12 |
Bush |
CW452K |
B 159 UNS C51900 |
Type 03343 - Standard design |
Technical data |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|
Nominal size |
DN |
15 |
20 |
25 |
40 |
50 |
65 |
80 |
100 |
150 |
Dimension code - Flange ASME B16.5 class 150 |
.X. |
0400 |
0600 |
1000 |
1400 |
2000 |
2400 |
3000 |
4000 |
6000 |
Flange-Ø |
D-class |
90 |
100 |
110 |
125 |
150 |
180 |
190 |
230 |
280 |
Face-to-face dimension |
FF |
140 |
150 |
160 |
200 |
230 |
290 |
310 |
350 |
577 |
Height |
H |
370 |
370 |
370 |
420 |
425 |
510 |
575 |
635 |
685 |
Length |
E |
195 |
200 |
200 |
230 |
235 |
300 |
300 |
300 |
300 |
Actuator-Ø |
M |
dependent on actuator |
||||||||
Wrench size across flats |
S2 |
30 |
30 |
30 |
36 |
36 |
36 |
36 |
41 |
41 |
Weight w/o actuator |
ca. kg |
4.6 |
6.5 |
8.5 |
12.0 |
16.0 |
30.0 |
36.0 |
53.0 |
87.0 |
*Kvs-Value |
m³/h |
4.3 |
6.7 |
11.5 |
22.6 |
37.1 |
71.1 |
104.0 |
170.0 |
350.0 |
*Cv-Value |
gal/min |
5.0 |
7.8 |
13.4 |
26.3 |
43.2 |
82.9 |
121.3 |
198.3 |
408.4 |
Stroke |
mm |
10 |
7 |
9 |
11 |
15 |
23 |
23 |
30 |
40 |
Selected portfolio
The products shown here represent only a selection of our portfolio.
We offer numerous other variations as well as customized solutions.
Are you looking for a specific configuration, size, or specification?
