Type 03741 - Globe Valve, DIN EN Flanges

Datasheet ID: CR_03741_1

Field of application

chevron-down

Applications:

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -255°C / -427°F (18K) up to +120°C / +248°F (393K)

Description

chevron-down

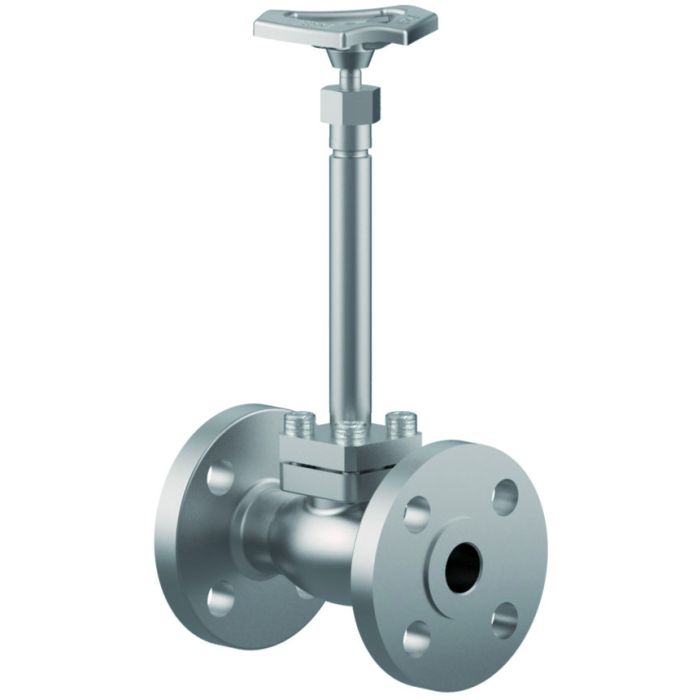

Cryogenic-Globe and Globe/Check Valves, PN16

Stainless steel body and topwork,

"¦live loaded¦" gland packing

"¦cleaned and degreased for oxygen service¦"

Part No. 03741.X.0014 (H = 270mm)

Part No. 03741.X.0024 (H = 370mm)

Part No. 03741.X.5014 (H = 270mm) Globe/Check Valve

Part No. 03741.X.5024 (H = 370mm) Globe/Check Valve

Flanged connection acc. to DIN EN 1092-1 PN16

Available options - on request only:

· Extension H up to 900mm

· Valve with control disc (tapered design)

Certificates

chevron-down
type-examination for LNG (DIN EN 12567) chevron-down
LNG-Certificate_DN200-01XXX_03XXX
ClassNK (Class Rules) chevron-down
TA22155M
DNV (Class Rules) chevron-down
TAP00000MM Rev. 3
Pressure Equipment Directive (2014/68/EU) chevron-down
0045-202-1334-Z-00176-23-D-001(01)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00469/23/D/001(00)
0045/202/1201/Z/00469/23/D/001(00)
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
0879-PESR-B(D)-23290-3-DE
0879-PESR-DD1-23290-4-DE
BV (Class Rules) chevron-down
33354/C0 BV
SMS.W.I./11744/C.0
RINA (Class Rules) chevron-down
MAC322723XG
Lloyd's Register (Class Rules) chevron-down
LR2508712TA-02
LR2695076QAES
ABS (Class Rules) chevron-down
25-0381115-PDA
25-0381115-PDA
092776-7471959-006

Data sheets

chevron-down
CR_03741_1_en.pdf

Declarations of Conformity

chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
001TTV (DE, EN, CN)
001TTV (DE, EN, CZ)
001TTV (DE, EN, ES)
001TTV (DE, EN, FR)
001TTV (DE, EN, IT)
001TTV (DE, EN, NL)
001TTV (DE, EN, PL)
001TTV (DE, EN, RU)
002TTV (DE, EN, CN)
002TTV (DE, EN, CZ)
002TTV (DE, EN, ES)
002TTV (DE, EN, FR)
002TTV (DE, EN, IT)
002TTV (DE, EN, NL)
002TTV (DE, EN, PL)
002TTV (DE, EN, RU)
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
002TTV (EN)
003TTV (EN)
003TTV (EN)
More Information
Type (Series) 03741
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
SKU CR_03741_1

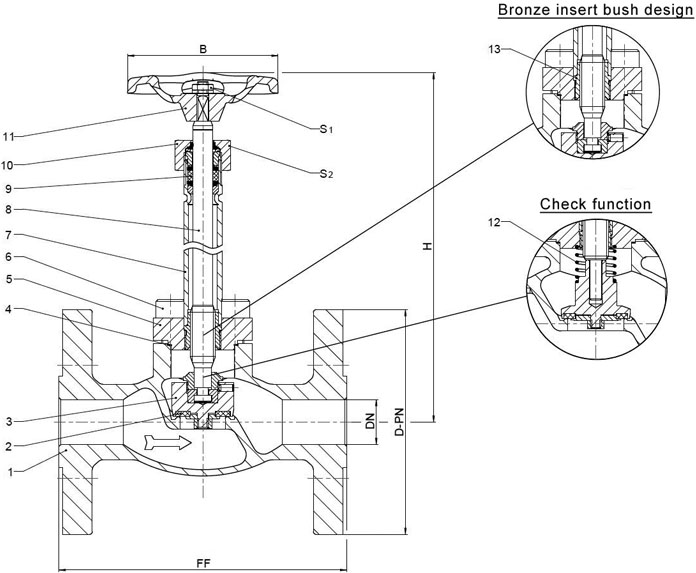

Materials

Materials

DIN EN

ASTM

1

Body

1.4409

A 351 CF3M

2

Valve seal

PCTFE (Kel-F)

3

Disc

1.4404

A 276 Grade 316L

4

Bonnet gasket

Graphite

5

Headpiece

1.4404

A 276 Grade 316L

6

Bolts

1.4571/A4

similar A 194 B8T

7

Elongation tube

1.4571

A 213 TP316Ti

8

Stem

1.4404

A 276 Grade 316L

9

Gland packing

Graphite / PTFE / MICA

10

Gland nut

1.4404

A 276 Grade 316L

11

Handwheel

1.4409

A 351 CF3M

12

Spring

1.4571

A 313 Grade 316Ti

13

Bush

CW452K

B 159 UNS C51900
Versions

Type 03741 - Standard design

Technical data

Nominal size

DN

15

20

25

40

50

65

80

100

150

Dimension code - Flange EN 1092-1 PN16

.X.

0150

0200

0250

0400

0500

0650

0800

1000

1500

Flange-Ø

D-PN

95

105

115

150

165

185

200

220

285

Face-to-face dimension

FF

140

150

160

200

230

295

310

350

510

Height

H

270 mm or 370 mm

370

420

Handwheel-Ø

B

100

100

100

125

125

200

250

315

360

Wrench size across flats

S1

7

7

7

10

10

10

10

12

15

Wrench size across flats

S2

30

30

30

36

36

36

36

41

41

Weight

ca. kg

3.0

3.5

5.0

9.0

13.0

21.0

28.0

42.0

83.0

Kvs-Value

m³/h

4.3

6.7

11.5

22.6

37.1

71.1

104.0

170.0

350.0

Cv-Value

gal/min

5.0

7.8

13.4

26.3

43.2

82.9

121.3

198.3

408.4

Stroke

mm

12

12

12

15

19

23

25

30

45
?
