Type 03743 - Actuated Globe Valve

Datasheet ID: CR_03743_5

Field of application

chevron-down

Applications:

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)

Description

chevron-down

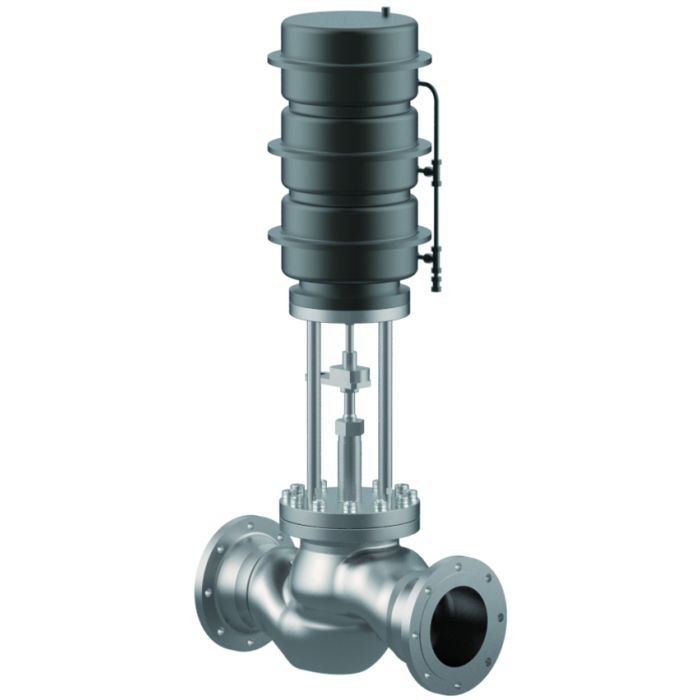

Cryogenic-Globe Valves with Pneumatic Actuator, class 150

Stainless steel body and topwork

Actuator - air opens, spring closes or contrary

"¦live loaded¦" gland packing

Part No. 03743.8000.X

Flanged connection acc. to ASME B16.5 class 300

In flow direction, the valve with the nominal size DN200 is conform to tightness class

L1 up to 18 bar maximum differential pressure acc. to DIN 12567 for LNG use.

This standard can also be used for the tightness class of other cryogenic gases.

Available accessories:

· Solenoid valve

· Limit switch

· Electropneumatic positioner etc.

Available options - on request only:

· Actuator - "¦cleaned and degreased for oxygen service¦"

· Electric actuator

Certificates

chevron-down
type-examination for LNG (DIN EN 12567) chevron-down
LNG-Certificate_DN200-01XXX_03XXX
ClassNK (Class Rules) chevron-down
TA22155M
DNV (Class Rules) chevron-down
TAP00000MM Rev. 3
Pressure Equipment Directive (2014/68/EU) chevron-down
0045-202-1334-Z-00176-23-D-001(01)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
0879-PESR-B(D)-23290-3-DE
0879-PESR-DD1-23290-4-DE
BV (Class Rules) chevron-down
33354/C0 BV
SMS.W.I./11744/C.0
RINA (Class Rules) chevron-down
MAC322723XG
Lloyd's Register (Class Rules) chevron-down
LR2508712TA-02
LR2695076QAES
ABS (Class Rules) chevron-down
25-0381115-PDA
25-0381115-PDA
092776-7471959-006

Data sheets

chevron-down
CR_03743_5_en.pdf

Declarations of Conformity

chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
001TTV (DE, EN, CN)
001TTV (DE, EN, CZ)
001TTV (DE, EN, ES)
001TTV (DE, EN, FR)
001TTV (DE, EN, IT)
001TTV (DE, EN, NL)
001TTV (DE, EN, PL)
001TTV (DE, EN, RU)
002TTV (DE, EN, CN)
002TTV (DE, EN, CZ)
002TTV (DE, EN, ES)
002TTV (DE, EN, FR)
002TTV (DE, EN, IT)
002TTV (DE, EN, NL)
002TTV (DE, EN, PL)
002TTV (DE, EN, RU)
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
002TTV (EN)
003TTV (EN)
003TTV (EN)
More Information
Type (Series) 03743
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
SKU CR_03743_5

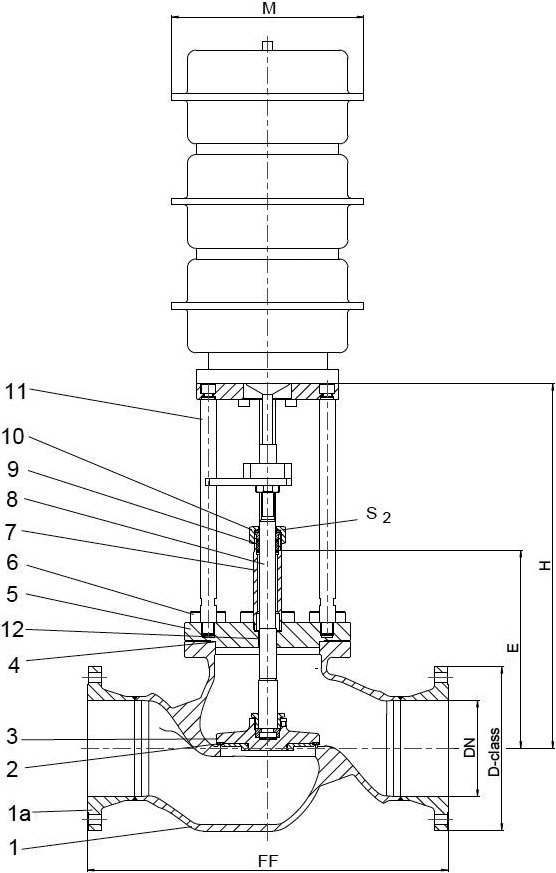

Materials

Materials

DIN EN

ASTM

1

Body

1.4409

A 351 CF3M

1a

Flange

1.4404

A 276 Grade 316L

2

Valve seal

PCTFE (Kel-F)

3

Disc

1.4404

A 276 Grade 316L

4

Bonnet gasket

Graphite

5

Headpiece

1.4404

A 276 Grade 316L

6

Bolts

1.4571/A4

similar A 194 B8T

7

Elongation tube

1.4571

A 213 TP 316Ti

8

Stem

1.4404

A 276 Grade 316L

9

Gland packing

Graphite / PTFE / MICA

10

Gland nut

1.4404

A 276 Grade 316L

11

Pillars

1.4404

A 276 Grade 316L

12

Bush

CW452K

B 159 UNS C51900
Versions

Type 03743 - Standard design

Technical data

Nominal size

DN

200

Dimension code

.X.

8000

Flange-Ø

D-class

345

Face-to-face dimension

FF

760

Height

H

785

Length

E

410

Actuator-Ø

M

dependent on actuator

Wrench size across flats

S2

30

Weight w/o actuator

ca. kg

135

*Kvs-Value

m³/h

680

*Cv-Value

gal/min

793

Stroke

mm

60
?
