Type 05413 - Check Valve

Datasheet ID: CR_05413

Field of application

chevron-down

Applications:

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)

Description

chevron-down

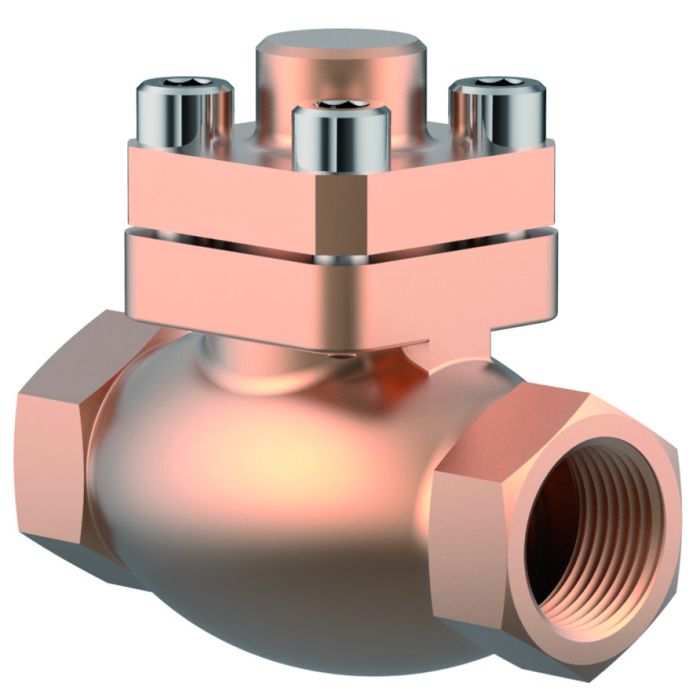

Cryogenic-Check Valves, PN50

Bronze body and cap

with spring, opening pressure ca. 0.1 bar

"cleaned and degreased for oxygen service"

Part No. 05413.X.0001

Female thread connection (G) acc. to ISO 228/1

Part No. 05413.X.0006

Female thread connection NPT acc. to ANSI B 1.20.1

Available options - on request only:

· Female thread connection (R) acc. to ISO 7-Rc

Check valves provide reliable backflow functionality when properly sized.

Based on experience, the minimum operating range of the valve should

be 50% for gases and 40% for liquids in relation to the total capacity of

the valve. Lower flow rates can lead to unstable performance, excessive

noise, and even component failure.

Certificates

chevron-down
type-examination for LNG (DIN EN 12567) chevron-down
LNG-Certificate_01XXX_02XXX_03XXX_05XXX_06XXX_08XXX_09XXX_11XX
Canadian Registration Number (CRN) chevron-down
0C22963.5 - Ontario
0C22963.5N - Nunavut
0C22963.5T - Northwest Territories
0C22963.5Y - Yukon
0C22963.50 - Newfoundland and Labrador
0C22963.51 - Britsh Columbia
0C22963.52 - Alberta
0C22963.53 - Saskatchewan
0C22963.54 - Manitoba.pdf
0C22963.56 - Quebec
0C22963.57 - New Brunswick.pdf
0C22963.58 - Nova Scotia.pdf
0C22963.59 - Prince Edward Island
License of Special Equipment (China) (TS) chevron-down
TSX71000520230058
TS2700G39-2029
Pressure Equipment Directive (2014/68/EU) chevron-down
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00469/23/D/001(00)
0045/202/1201/Z/00469/23/D/001(00)
0045/202/1201/Z/00199/26/D/001(00)
Ukraine (Ukraine) chevron-down
UA.276.127.03-26
UA.D.127.04-26

Data sheets

chevron-down
CR_05413_en.pdf

Operating Instructions

chevron-down
HEROSE-Manual-CR_05413-1

Declarations of Conformity

chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
002TTV (EN)
Pressure Equipment Directive (2014/68/EU) chevron-down
002TTV (DE, EN, CN)
002TTV (DE, EN, CZ)
002TTV (DE, EN, ES)
002TTV (DE, EN, FR)
002TTV (DE, EN, IT)
002TTV (DE, EN, NL)
002TTV (DE, EN, PL)
002TTV (DE, EN, RU)
More Information
Type (Series) 05413
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
SKU CR_05413

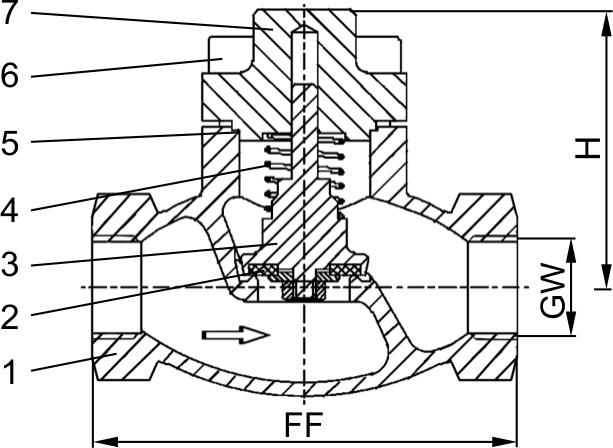

Materials

Materials

DIN EN

ASTM

1

Body

CC491K

B 62 UNS C83600

2

Valve seal

PTFE / Carbon filled (25%)

3

Disc

CW614N

B 283 UNS C38500

4

Spring

CW452K

B 159 UNS C51900

5

Bonnet gasket

PTFE

6

Bolts

1.4301/A2

A 194 B8

7

Cap

CC493K

B 505 UNS C93200
Versions

Type 05413 - Standard design

Technical data

Nominal size

DN

10

10

15

20

25

32

40

50

Thread size

GW

1/4

3/8

1/2

3/4

1

1-1/4

1-1/2

2

Dimension code

.X.

0200

0300

0400

0600

1000

1200

1400

2000

Face-to-face dimension

FF

60

60

85

85

115

115

140

160

Height

H

71

71

71

72

75

87

95

95

Weight

ca. kg

0.7

0.7

1.0

1.3

1.6

2.4

3.9

5.7

Kvs-Value

m³/h

1.6

2.2

4.3

6.7

11.5

20.6

22.6

37.1

Cv-Value

gal/min

1.9

2.6

5.0

7.8

13.4

23.9

26.3

43.2
