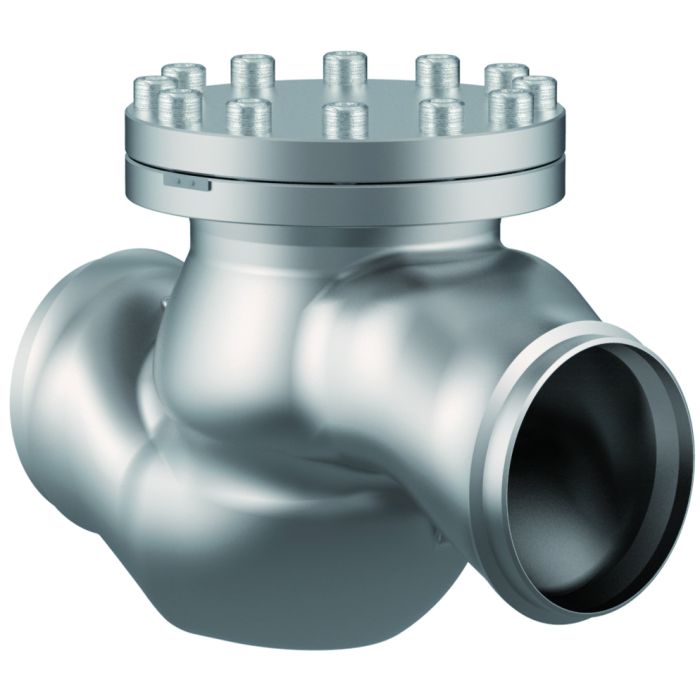

Type 05614 - Check Valve

Datasheet ID: CR_05614_2

Field of application

chevron-down

Applications:

Approved for hydrogen, air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -255°C / -427°F (18K) up to +120°C / +248°F (393K)

Description

chevron-down

Cryogenic-Check Valves

Fire type-testing according to EN ISO 10497

Stainless steel body and cap

with spring, opening pressure ca. 0.1 bar

Part-No. 05614.X.0041, PN25

Butt weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312

Part-No. 05614.X.0044, PN25

Socket weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312

Available options - on request only

Certificates

chevron-down
type-examination for LNG (DIN EN 12567) chevron-down
LNG-Certificate_01XXX_02XXX_03XXX_05XXX_06XXX_08XXX_09XXX_11XX
LNG-Certificate_DN200-05XXX_08XXX
type-examination fire-safe (DIN EN ISO 10497) chevron-down
FS-Certificate_05XXX_08XXX
License of Special Equipment (China) (TS) chevron-down
TSX71000520230058
TSX71000120220017
TS2700G39-2029
Pressure Equipment Directive (2014/68/EU) chevron-down
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1334/Z/00399/24/D/001(00)
0045/202/1201/Z/00469/23/D/001(00)
0045/202/1201/Z/00469/23/D/001(00)
BV (Class Rules) chevron-down
33515/C1 BV
SMS.W.I./11744/C.0
DNV (Class Rules) chevron-down
TAP00000K3
Ukraine (Ukraine) chevron-down
UA.276.127.03-26
UA.D.127.04-26

Data sheets

chevron-down
CR_05614_2_en.pdf

Declarations of Conformity

chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
001TTV (DE, EN, CN)
001TTV (DE, EN, CZ)
001TTV (DE, EN, ES)
001TTV (DE, EN, FR)
001TTV (DE, EN, IT)
001TTV (DE, EN, NL)
001TTV (DE, EN, PL)
001TTV (DE, EN, RU)
002TTV (DE, EN, CN)
002TTV (DE, EN, CZ)
002TTV (DE, EN, ES)
002TTV (DE, EN, FR)
002TTV (DE, EN, IT)
002TTV (DE, EN, NL)
002TTV (DE, EN, PL)
002TTV (DE, EN, RU)
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
002TTV (EN)
More Information
Type (Series) 05614
Solution H2, LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
SKU CR_05614_2

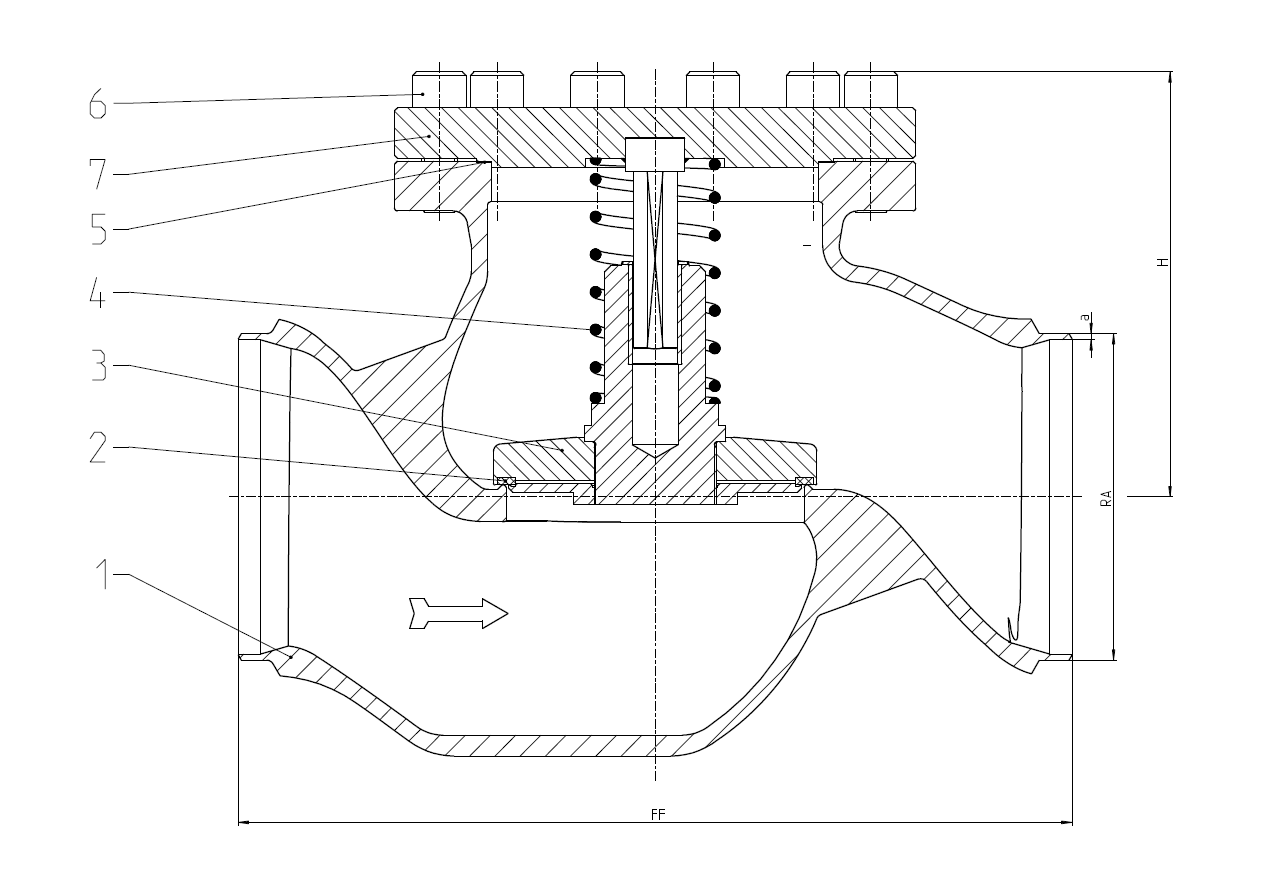

Materials

Materials

DIN EN

ASTM

1

Body

1.4409

A 351 CF3M

2

Valve Seal

PTFE / Carbon filled (25%)

3

Disc

1.4404

A 276 Grade 316L

4

Spring

1.4571

A 313 Grade 316Ti

5

Bonnet gasket

Graphite

6

Bolts

1.4571/A4 similar

A 194 B8T

7

Cap

1.4404

A 276 Grade 316L
Versions

Type 05614 - Standard design

Technical data

Nominal size

DN

200

Dimension code

.X.

0219

Face-to-face dimension

FF

560

Height

H

285

Outside pipe-Ø ISO 1127

RA

219,1

Wall thickness pipe ISO 1127

a

6,3

Outside pipe-Ø ASTM A312

RA

219,1

Wall thickness pipe ASTM A312

a

dimensions acc. to S10 or S40

Socket depth

b

15

Weight

ca. kg

109

Kvs-Value

m³/h

680

Cv-Value

gal/min

793
?
