Type 05C02 - Check Valves

Datasheet ID: CR_05C02_2

Field of application

chevron-down

Application:

Approved for hydrogen, air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -255°C / -427°F (18K) up to +80°C / +176°F (353K)

Description

chevron-down

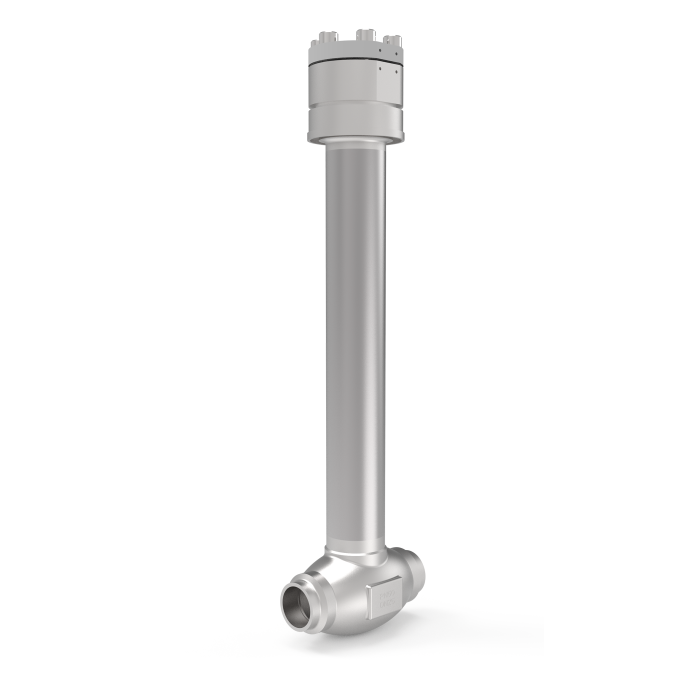

Top-Entry Cryogenic-Check-Valves, casted body, up to PN50

A004 series

Stainless steel body and topwork,

"¦cleaned and degreased for oxygen service¦"

Part-No. 05C02.A004.X

Butt weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312

Available options:

· Purge port

- on request only:

· Further connection types

Certificates

chevron-down
Ukraine (Ukraine) chevron-down
UA.276.127.03-26
UA.D.127.04-26
UA.276.127.03-26
UA.D.127.04-26

Data sheets

chevron-down
CR_05C02_2_en.pdf

Operating Instructions

chevron-down
HEROSE-Manual-CR_05C02_2-1
More Information
Type (Series) 05C02
Solution H2, LNG, Air Gases
Solution Area Manufacturing, Transport, Storage, Refueling, Processes
SKU CR_05C02_2

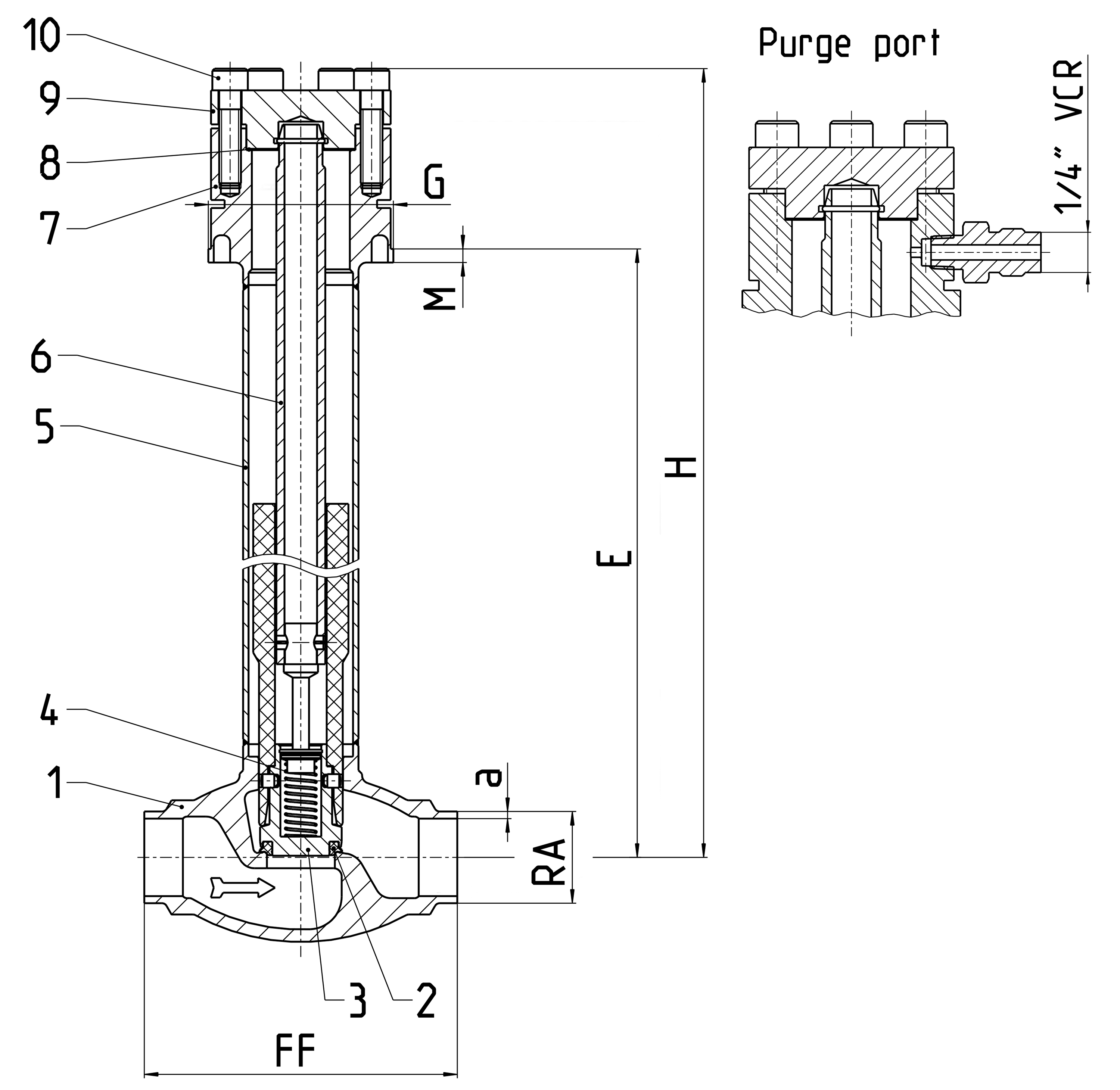

Materials

Materials

DIN EN

ASTM

1

Body

1.4409

A 351 Grade CF3M

2

Valve Seal

PTFE

PTFE

3

Disc

1.4571

A 313 Grade 316TI

4

Spring

1.4571

A 313 Grade 316TI

5

Tube

1.4571

A 313 Grade 316TI

6

Pipe

1.4571

A 313 Grade 316TI

7

Flange

1.4404

A 276 Grade 316L

8

Gasket

PTFE

PTFE

9

Cap

1.4404

A 276 Grade 316L

10

Bolt

A4-80

A 194 B8M
Versions

Type 05C02

Technical data

Nominal size

DN

25

25

Dimension code

.X.

000001

000004

Face-to-face dimension

FF

150

150

Height

H

392

392

Collar-Ø

G

68

68

Length

M

5

5

Length

E

325

325

Outside pipe-Ø ISO

Ra

33.7

33.7

Wall thickness pipe ISO

a

2,6

2,6

Pipe-Ø ASTM A312

1'' S10

1'' S10

KVS-Value

m³/h

12.2

12.2

CV-Value

gal/min

14.1

14.1

Weight

3.6 kg

3.6 kg

Purge port

without

1/4'' VCR
?
