Type 06426

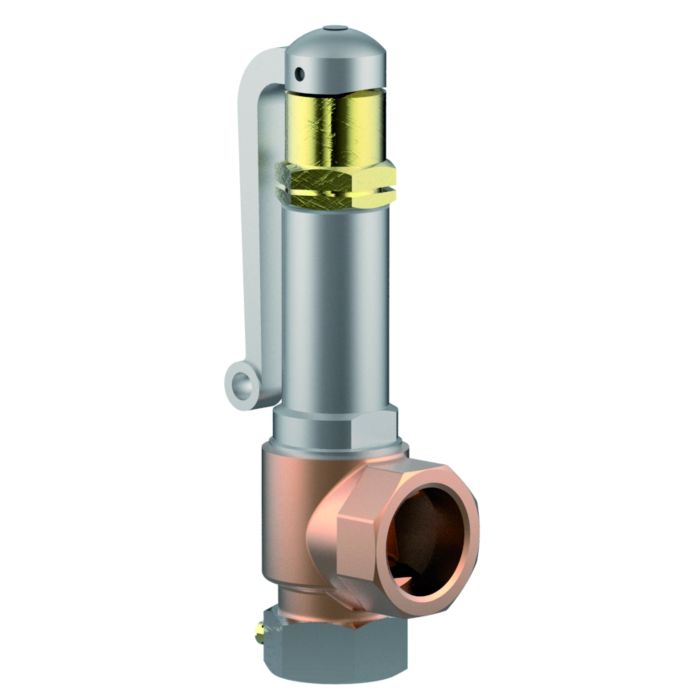

The product shown in the picture may differ from the product sold.
Field of application
Applications:
Provided as safety device for protection against excessive pressure in stationary and moveable gas
cylinders and pressure vessels. Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.
Working temperature: -196°C / -321°F (77K) up to +185°C / +365°F (458K), with PCTFE-seal up to +150°C / 302°F (423K), suitable for horizontal installation
Description
Cryogenic Safety Valves, angle type, bronze, PN40
d0=7,0 & 10,5mm up to PN50,
type tested TÃœV-SV.1111. S/G
Standard safety valve,
with PCTFE valve seal (except d07, which is metal to metal seated only: in this case
the Part No. changes from 06426.X.X000 to 06426.070X.X100), closed bonnet, with lifting device
"¦cleaned and degreased for oxygen servive¦"
Part No. 06426.X.0000
Inlet: female thread type G (BSPP) acc. to ISO 228/1
Outlet: female thread type G (BSPP) acc. to ISO 228/1
Certificates
Transportable Pressure Equipment Directive (2010/35/EU)
ASME Code (ASME Code Section VIII)
Canadian Registration Number (CRN)
ClassNK (Class Rules)
BV (Class Rules)
RINA (Class Rules)
Pressure Equipment Directive (2014/68/EU)
ABS (Class Rules)
Ukraine (Ukraine)
Data sheets
Operating Instructions
Declarations of Conformity
Transportable Pressure Equipment Directive (2010/35/EU)
Pressure Equipment Safety Regulation 2016 (PESR 2016)
Pressure Equipment Directive (2014/68/EU)
Live Stock: Out-Of Stock pcs (ON STOCK)
| Type (Series) | 06426 |
|---|---|
| Solution | LNG, Air Gases |
| Solution Area | Transport, Storage, Refueling, Processes |
| SKU | CR_06426 |

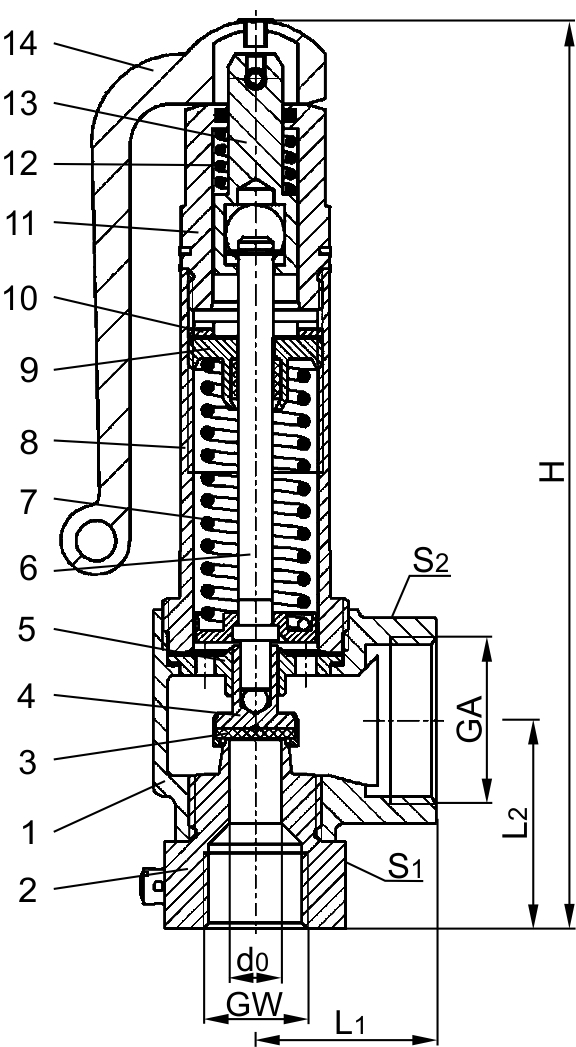

Materials |
DIN EN |
ASME/ASTM |
|
|---|---|---|---|
1 |
Outlet body |
CC491K |
SB 62 UNS C83600 |
2 |
Inlet body |
1.4301 |
SA 479 Grade 304 |
3 |
Valve seal |
PCTFE 1.4571 1.4541 |
A 313 Grade 316Ti (d07) A 276 Grade 321 (d010.5) |
4 |
Disc |
CC493K |
B 505 UNS C93200 |
5 |
Guide plate |
CC493K |
B 505 UNS C93200 |
6 |
Stem |
CW453K |
B 103 UNS C52100 |
7 |
Spring |
1.4571 |
A 313 Grade 316Ti |
8 |
Bonnet |
1.4301 |
A 276 Grade 304 |
9 |
Spring clamp |
CW614N |
B 455 UNS C38500 |
10 |
Thread ring |
CW614N |
B 455 UNS C38500 |
11 |
Lifting cap |
CW614N |
B 455 UNS C38500 |
12 |
Lifting spring |
1.4571 |
A 313 Grade 316Ti |
13 |
Lifting stem |
CW614N |
B 455 UNS C38500 |
14 |
Lever |
1.4408 |
SA351 CF8M |
Type 06426 |
Technical Data |
|||||
|---|---|---|---|---|---|---|
Nominal size |
GW |
1/2 |
1/2 |
3/4 |
1 |
1-1/4 |
Orifice |
d0 |
7.0 |
10.5 |
14.0 |
18.0 |
23.0 |
Dimension code |
.X. |
0704 |
1004 |
1406 |
1810 |
2312 |
Set pressure range |
bar |
0.4-50.0 |
0.4-50.0 |
0.4-40.0 |
0.4-40.0 |
0.4-10.0 |
Outlet |
GA |
1 |
1 |
1-1/4 |
1-1/2 |
1-1/2 |
Height |
H |
181 |
181 |
201 |
247 |
252 |
Length |
L1 |
36 |
36 |
50 |
48 |
48 |
Length |
L2 |
41.5 |
41.5 |
49 |
59.5 |
65 |
Wrench size across flats |
S1 |
36 |
36 |
41 |
50 |
50 |
Wrench size across flats |
S2 |
41 |
41 |
50 |
58 |
58 |
Weight |
ca. kg |
1.02 |
1.01 |
1.50 |
2.45 |
2.40 |
Coeff. of discharge from 3.0 bar |
αw |
0.78 |
0.69 |
0.66 |
0.66 |
0.54 |
