Type 06441

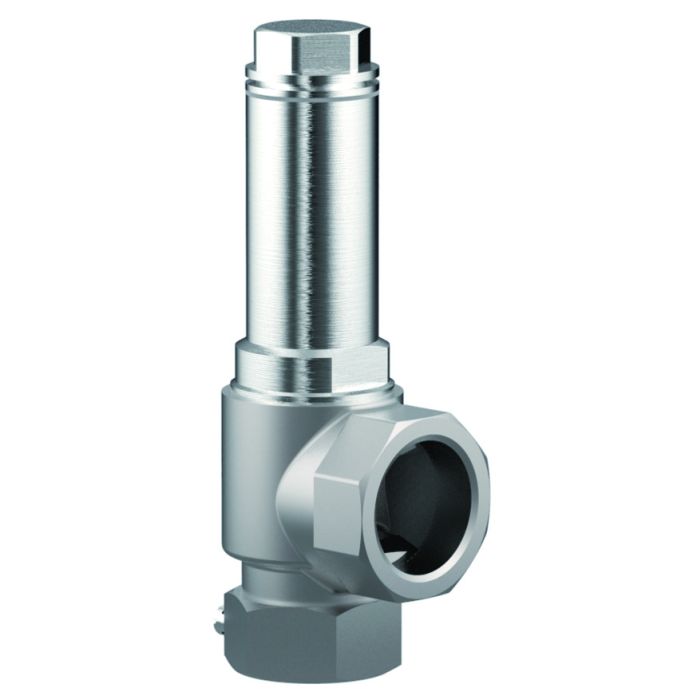

The product shown in the picture may differ from the product sold.
Field of application
Applications:
Provided as safety device for protection against excessive pressure in stationary and moveable gas
cylinders and pressure vessels. Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.
Working temperature: -255°C / -427°F (18K) up to +185°C / +365°F (458K), with PCTFE-seal
up to +150°C / 302°F (423K), suitable for horizontal installation
Description
Cryogenic Safety Valves, angle type, stainless steel, PN40
d0=7,0 & 10,5mm up to PN50,
type tested TÃœV-SV.1111. S/G
Standard safety valve,
with PCTFE valve seal (except d07, which is metal to metal seated only: in this case
the Part No. changes from 06441.X.X000 to 06441.070X.X100), closed bonnet
"¦cleaned and degreased for oxygen servive¦"
Part No. 06441.X.0000
Inlet: female thread type G (BSPP) acc. to ISO 228/1
Outlet: female thread type G (BSPP) acc. to ISO 228/1
Part No. 06441.X.X070
H2 - version with inlet body made of 1.4404/316L
Certificates
Transportable Pressure Equipment Directive (2010/35/EU)
ASME Code (ASME Code Section VIII)
Canadian Registration Number (CRN)
ClassNK (Class Rules)
RINA (Class Rules)
Pressure Equipment Directive (2014/68/EU)
Lloyd's Register (Class Rules)
ABS (Class Rules)
Ukraine (Ukraine)
DNV (Class Rules)
Data sheets
Operating Instructions
Declarations of Conformity
Transportable Pressure Equipment Directive (2010/35/EU)
Pressure Equipment Safety Regulation 2016 (PESR 2016)
Pressure Equipment Directive (2014/68/EU)
Live Stock: Out-Of Stock pcs (ON STOCK)
| Type (Series) | 06441 |
|---|---|
| Solution | LNG, Air Gases |
| Solution Area | Transport, Storage, Refueling, Processes |
| SKU | CR_06441 |

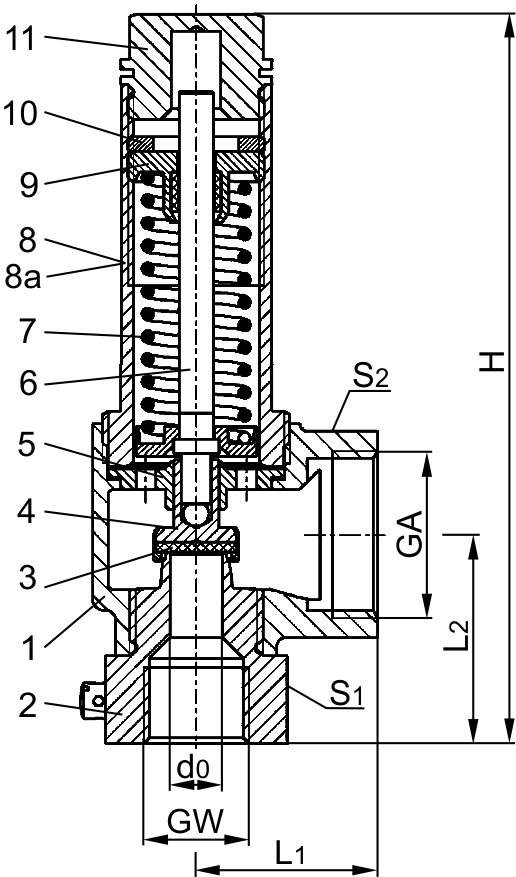

Materials |
DIN EN |
ASME/ASTM |
|
|---|---|---|---|
1 |
Outlet body |
1.4308 |
SA351 CF8 |
2 |
Inlet body |
1.4301/ 1.4404 |
A 479 Grade 304/316L |
3 |
Valve seal |
PCTFE 1.4571 1.4541 |
A 313 Grade 316Ti (d07) A 276 Grade 321 (d010.5) |
4 |
Disc |
1.4541 |
A 276 Grade 321 |
5 |
Guide plate |
1.4301 |
A 479 Grade 304 |
6 |
Stem |
1.4301 |
A 479 Grade 304 |
7 |
Spring |
1.4571 |
A 313 Grade 316Ti |
8 |
Bonnet |
1.4301 |
A 276 Grade 304 |
9 |
Spring clamp |
1.4301 |
A 479 Grade 304 |
10 |
Thread ring |
1.4301 |
A 479 Grade 304 |
11 |
Cap |
1.4301 |
A 479 Grade 304 |
Type 06441 |
Technical data |
|||||
|---|---|---|---|---|---|---|
Nominal size |
GW |
1/2 |
1/2 |
3/4 |
1 |
1-1/4 |
Orifice |
d0 |
7.0 |
10.5 |
14.0 |
18.0 |
23.0 |
Dimension Code |
.X. |
0704 |
1004 |
1406 |
1810 |
2312 |
Set pressure range |
bar |
0.4-50.0 |
0.4-50.0 |
0.4-40.0 |
0.4-40.0 |
0.4-10.0 |
Outlet |
GA |
1 |
1 |
1-1/4 |
1-1/2 |
1-1/2 |
Height |
H |
145 |
145 |
164 |
195 |
200 |
Length |
L1 |
36 |
36 |
50 |
48 |
48 |
Length |
L2 |
41.5 |
41.5 |
49 |
59.5 |
65 |
Wrench size across flats |
S1 |
36 |
36 |
41 |
50 |
50 |
Wrench size across flats |
S2 |
41 |
41 |
50 |
58 |
58 |
Weight |
ca. kg |
0.80 |
0.795 |
1.25 |
1.87 |
1.79 |
Coeff. of discharge from 3.0 bar |
αw |
0.78 |
0.69 |
0.66 |
0.66 |
0.54 |
