HEROSE Type 06445

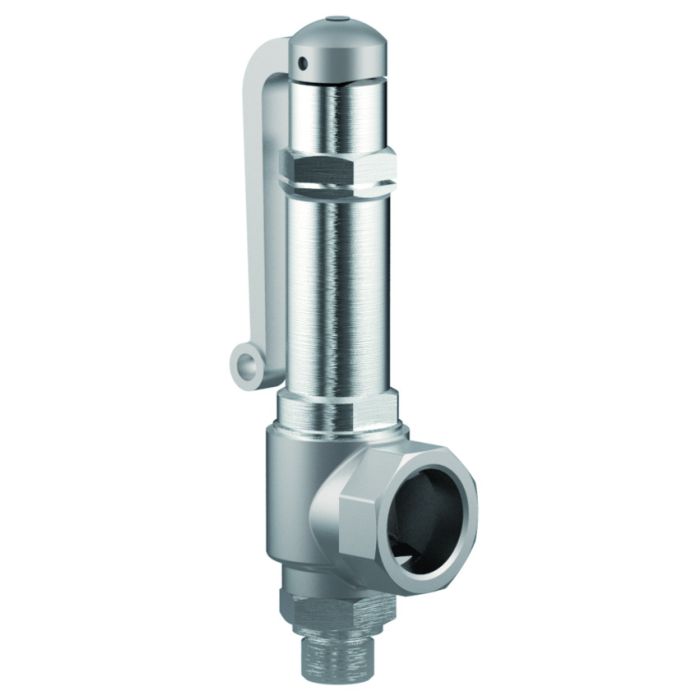

The product shown in the picture may differ from the product sold.

Type 06445

Datasheet ID: CR_06445

Field of application

Applications:

Provided as safety device for protection against excessive pressure in stationary and moveable gas

cylinders and pressure vessels. Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -255°C / -427°F (18K) up to +185°C / +365°F (458K), with PCTFE-seal

up to +150°C / 302°F (423K), suitable for horizontal installation

Description

Cryogenic Safety Valves, angle type, stainless steel, PN40

d₀=7.0 & 10.5mm up to PN50, type tested TÜV-SV.1111. S/G

Standard safety valve,

with PCTFE valve seal (except d₀7, which is metal to metal seated only: in this case

the Part No. changes from 06445.X.X000 to 06445.070X.X100), closed bonnet, with lifting device

"cleaned and degreased for oxygen service"

Part No. 06445.X.0000

Inlet: male thread type G (BSPP) acc. to ISO 228/1, Outlet: female thread type G (BSPP) acc. to ISO 228/1

Part No. 06445.X.2000

Inlet: male thread type R (BSPT) acc. to 7/1, Outlet: female thread type G (BSPP) acc. to ISO 228/1

Part No. 06445.X.5000

Inlet: male thread NPT acc. to ANSI B 1.20.1, Outlet: female thread type G (BSPP) acc. to ISO 228/1

Part No. 06445.X.6000

Inlet: male thread NPT acc. to ANSI B 1.20.1, Outlet: female thread NPT acc. to ANSI B 1.20.1

Part No. 06445.X.X070 H2 - version with inlet body made of 1.4404/316L

Certificates

Transportable Pressure Equipment Directive (2010/35/EU)

07/201/1321/Z/00067/18/oD/002(02)

ASME Code (ASME Code Section VIII)

HEG-M91189

HEG-M91202

HEG-M91190

HEG-M91279

HEG-M91280

NB_EN_91257

31820

NBBI 78711 278163

Canadian Registration Number (CRN)

0G20613.5 - Ontario

0G20613.5N - Nunavut

0G20613.5T - Northwest Territories

0G20613.5Y - Yukon

0G20613.50 - Newfoundland and Labrador

0G20613.52 - Alberta

0G20613.57 - New Brunswick

0G20613.58 - Nova Scotia

0G20613.59 - Prince Edward Island

CSA-0G20613.56 - Quebec and Saskatchewan

ClassNK (Class Rules)

TA22180M

BV (Class Rules)

33356/C0 BV

SMS.W.I./11744/C.0

RINA (Class Rules)

MAC322723XG

Pressure Equipment Directive (2014/68/EU)

0045/202/1201/Z/00169/24/D/001(02)

TÜV Verband (Approval mark number)

24-1111

Lloyd's Register (Class Rules)

LR25294473TA

LR2695076QAES

ABS (Class Rules)

25-0381115-PDA

092776-7471959-006

Ukraine (Ukraine)

UA.TR.107.135.03-26

UA.TR.107.127.07-26

UA.D.135.01-26

DNV (Class Rules)

TAP0000355

Data sheets

CR_06445_en.pdf

Operating Instructions

HEROSE-Manual-CR_06445-1

Declarations of Conformity

Transportable Pressure Equipment Directive (2010/35/EU)

TTSV (DE, EN, CN)

TTSV (DE, EN, CZ)

TTSV (DE, EN, ES)

TTSV (DE, EN, FR)

TTSV (DE, EN, IT)

TTSV (DE, EN, NL)

TTSV (DE, EN, PL)

TTSV (DE, EN, RU)

Pressure Equipment Safety Regulation 2016 (PESR 2016)

001 SV (EN)

Pressure Equipment Directive (2014/68/EU)

001SV (DE, EN, CN)

001SV (DE, EN, CZ)

001SV (DE, EN, ES)

001SV (DE, EN, FR)

001SV (DE, EN, IT)

001SV (DE, EN, NL)

001SV (DE, EN, PL)

001SV (DE, EN, RU)

More Information
Materials
Versions
Product Variants

More Information

Type (Series)	06445
Solution	LNG, Air Gases
Solution Area	Transport, Storage, Refueling, Processes
SKU	CR_06445

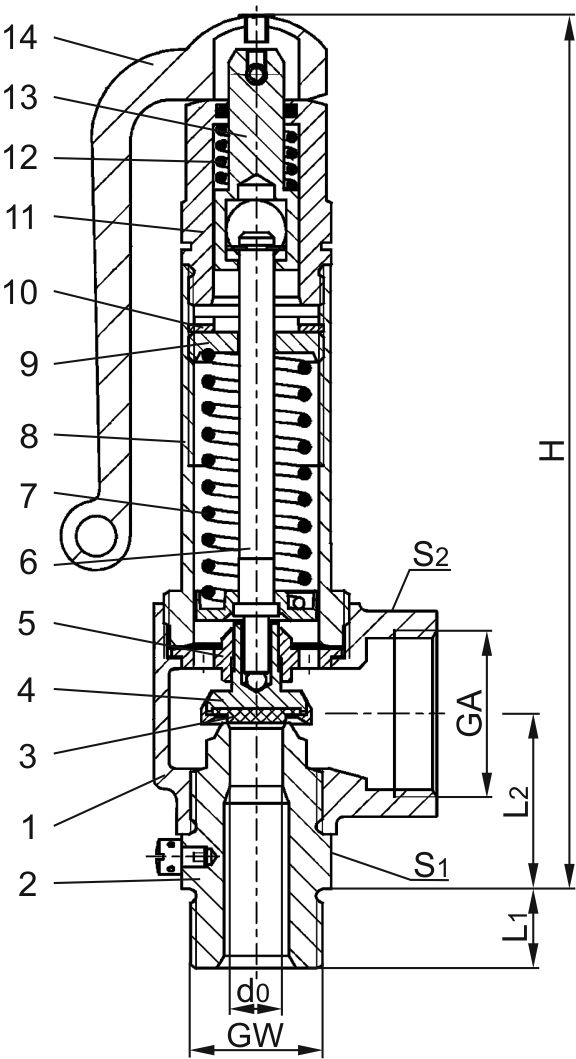

Materials

Materials		DIN EN	ASME/ASTM
1	Outlet body	1.4308	SA351 CF8
2	Inlet body	1.4301/ 1.4404	A 479 Grade 304/316L
3	Valve seal	PCTFE 1.4571 1.4541	A 313 Grade 316Ti (d₀7) A 276 Grade 321 (d₀10.5)
4	Disc	1.4541	A 276 Grade 321
5	Guide plate	1.4301	A 479 Grade 304
6	Stem	1.4301	A 479 Grade 304
7	Spring	1.4571	A 313 Grade 316Ti
8	Bonnet	1.4301	A 276 Grade 304
9	Spring clamp	1.4301	A 479 Grade 304
10	Thread ring	1.4301	A 479 Grade 304
11	Lifting cap	1.4301	A 479 Grade 304
12	Lifting spring	1.4571	A 313 Grade 316Ti
13	Lifting stem	1.4301	A 479 Grade 304
14	Lever	1.4408	SA351 CF8M

Versions

Type 06425	Technical data
Nominal size	GW	1/2	3/4	1/2	3/4	3/4	1	1	1-1/4	1-1/4
Orifice	d₀	7.0	7.0	10.5	10.5	14.0	14.0	18.0	18.0	23.0
Dimension code	.X.	0704	0706	1004	1006	1406	1410	1810	1812	2312
Set pressure range	bar	0.4-50.0	0.4-50.0	0.4-50.0	0.4-50.0	0.4-40.0	0.4-40.0	0.4-40.0	0.4-40.0	0.4-10.0
Outlet	GA	1	1	1	1	1-1/4	1-1/4	1-1/2	1-1/2	1-1/2
Height	H	176	176	176	176	196	196	239	240	239
Length	A₁	14	16	14	16	16	18	18	20	20
Length	L₁	36	36	36	36	50	50	48	48	48
Length	L₂	36.5	36.5	36.5	34.5	44	44	50.5	51.5	52
Wrench size across flats	S₁	30	30	30	30	41	41	50	50	50
Wrench size across flats	S₂	41	41	41	41	50	50	58	58	58
Weight	ca. kg	1.00	1.02	0.98	1.01	1.50	1.56	2.51	2.63	2.52
Coeff. of disch. from 3.0 bar	α_w	0.78	0.78	0.69	0.69	0.66	0.66	0.66	0.66	0.54
