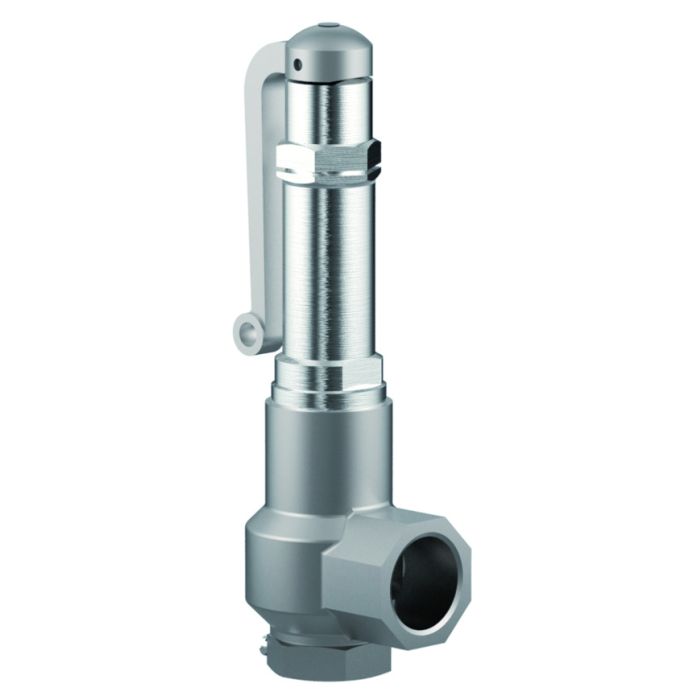

Type 06805 with bellow seal

Datasheet ID: CR_06805

Field of application

chevron-down

Applications:

Provided as safety device for protection against excessive pressure in stationary and moveable gas

cylinders and pressure vessels. Approved for non-inflammable and inflammable vapours, gases and fluids.

Working temperature: -270°C / -454°F (3K) up to +225°C / +437°F (498K)

Maximum allowed back pressure: 15% of set pressure, pressure-temperature must be observed

Description

chevron-down

Stainless steel bellow sealed Safety Valves, angle type, PN40, type tested TÜV-SV.1105. S/G/L

orifice d0 = 12.5 mm TÜV-SV.1105. only S/G

Standard safety valve,

metal to metal seated, closed bonnet, with lifting device

"cleaned and degreased for oxygen service"

Part No. 06805.X.0000

Inlet: female thread type G (BSPP) acc. to ISO 228/1,

Outlet: female thread type G (BSPP) acc. to ISO 228/1

Part No. 06805.X.5000

Inlet: female thread NPT acc. to ANSI B 1.20.1,

Outlet: female thread type G (BSPP) acc. to ISO 228/1

Part No. 06805.X.6000

Inlet: female thread NPT acc. to ANSI B 1.20.1,

Outlet: female thread NPT acc. to ANSI B 1.20.1

Certificates

chevron-down
ClassNK (Class Rules) chevron-down
TA22180M
BV (Class Rules) chevron-down
33355/C0 BV
SMS.W.I./11744/C.0
RINA (Class Rules) chevron-down
MAC322723XG
TÜV Verband (Approval mark number) chevron-down
24-1105
24-1105
Pressure Equipment Directive (2014/68/EU) chevron-down
0045/202/1201/Z/00170/24/D/001(00)
License of Special Equipment (China) (TS) chevron-down
TSF700D36-2029
Lloyd's Register (Class Rules) chevron-down
LR25294473TA
LR2695076QAES
ABS (Class Rules) chevron-down
25-0381115-PDA
25-0381115-PDA
092776-7471959-006
Ukraine (Ukraine) chevron-down
UA.TR.107.135.03-26
UA.TR.107.127.07-26
UA.D.135.01-26
DNV (Class Rules) chevron-down
TAP0000354

Data sheets

chevron-down
CR_06805_en.pdf

Operating Instructions

chevron-down
HEROSE-Manual-CR_06805-1

Declarations of Conformity

chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
001 SV (EN)
Pressure Equipment Directive (2014/68/EU) chevron-down
001SV (DE, EN, CN)
001SV (DE, EN, CZ)
001SV (DE, EN, ES)
001SV (DE, EN, FR)
001SV (DE, EN, IT)
001SV (DE, EN, NL)
001SV (DE, EN, PL)
001SV (DE, EN, RU)
More Information
Type (Series) 06805
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
SKU CR_06805

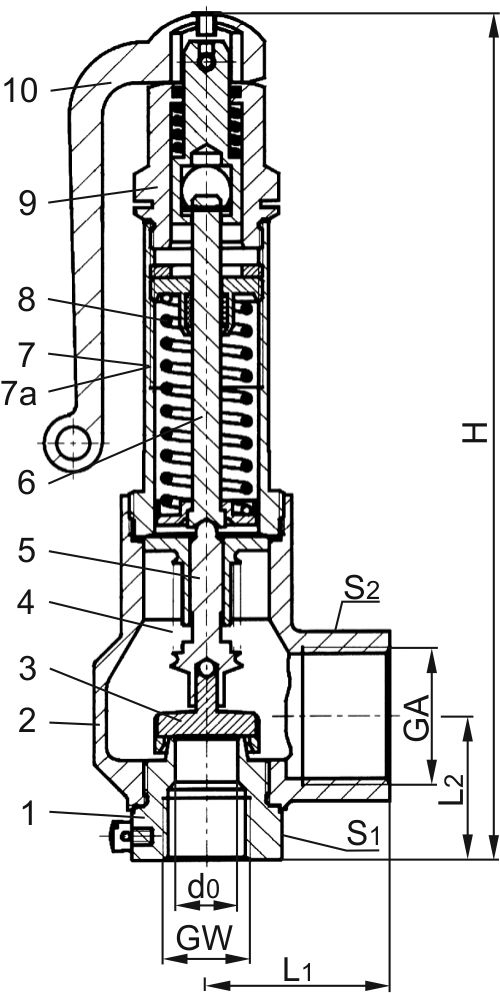

Materials

Materials

DIN EN

ASME/ASTM

1

Inlet body

1.4571

A 276 Grade 316Ti

2

Outlet body

1.4308

A 351 CF8

3

Disc

1.4541

A 276 Grade 321

4

Bellow

1.4571

A 276 Grade 316Ti

5

Bellow stem

1.4571

A 276 Grade 316Ti

6

Stem

CW453K

B 103 UNS C52100

7

Bonnet

1.4301

A 276 Grade 304

8

Spring

1.4571

A 276 Grade 316Ti

9

Lifting cap

1.4301

A 276 Grade 304

10

Lever

1.4408

A 351 CF8M
Versions

Type 6805

Technical data

Nominal size

GW

1/2

1/2

3/4

3/4

1

Orifice

d0

12.5

15

15

20

23

Dimension code

.X.

1204

1504

1506

2006

2310

Set pressure range

bar

3.0-25.0

3.0-25.0

3.0-25.0

3.0-25.0

3.0-25.0

Outlet

GA

G 1

G 1

G 1

G 1-1/4

G 1-1/2

Height

H

205

210

215

243

295

Length

L1

44

44

44

51

56

Length

L2

35

35

40

48

58

Wrench size across flats

S1

36

36

41

41

50

Wrench size across flats

S2

41

41

41

50

55

Weight

ca. kg

1.24

1.21

1.31

1.88

3.15

Coeff. of discharge vapours, gases

αw

0.60

0.50

0.50

0.60

0.66

Coeff. of discharge fluids

αw

-

0.39

0.39

0.45

0.48
