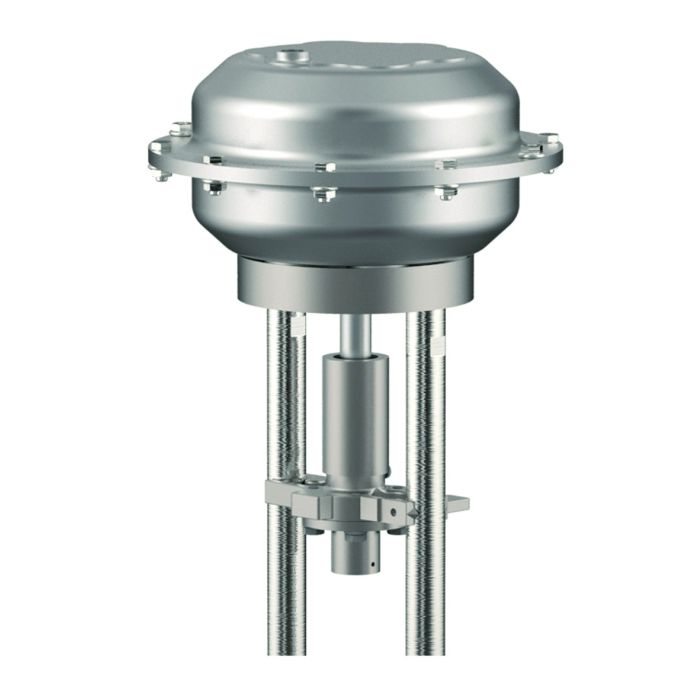

Type 27532 - Pneumatic Actuator - Control Valve

Datasheet ID: CR_27532_2

Description

chevron-down

Pneumatic Actuators for Control Valves

Actuator - spring to open, air to close

Air supply - maximum 6,0bar ü

Body - stainless steel (1.4571) electropolished

Ambient temperature limit: -20°C / -4°F (253K) bis +80°C / 176°F (353K)

Data sheets

chevron-down
CR_27532_2_en.pdf
More Information
Type (Series) 27532
SKU CR_27532_2

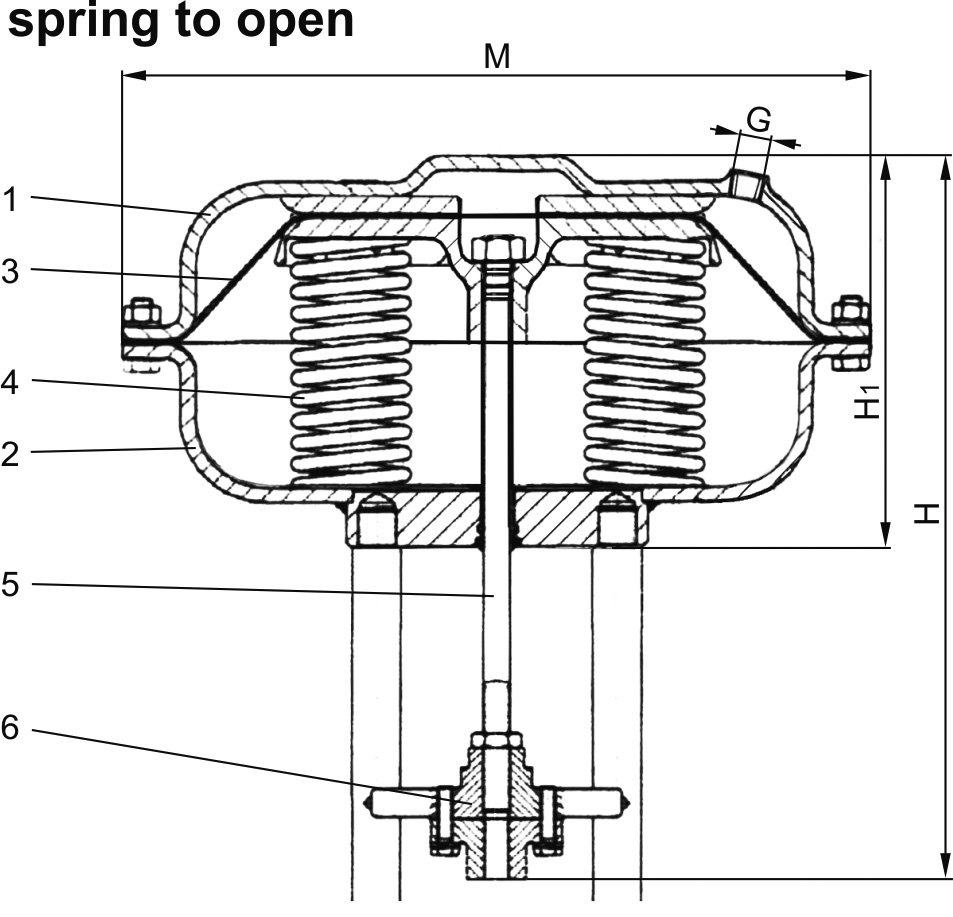

Materials

Materials

DIN EN

ASTM

1

Body

1.4571

A 240 Grade 316Ti

2

Body

1.4571

A 240 Grade 316Ti

3

Diaphragm

NBR

4

Springs

Cr.Si-Leg.*

5

Actuator stem

1.4571

A 276 Grade 316Ti

6

Coupling

1.4571

A 240 Grade 316Ti

* Coating:

material is corrosion resistant (Microcor Spezial) corrosion protection class C5-M

Versions

Type 27532

Technical data

Part No. Actuator

27532

.15A6.3SPS

.35B6.6GPS

.60A6.6GPS

.60C6.7GPS

.75B6.2SPS

Diameter Actuator

M

162

210

310

310

430

Height

H

256

276

309

352

353

Height

H1

116

136

166

186

234

Thread

G

1/4'' NPT

1/4'' NPT

1/4'' NPT

1/4'' NPT

3/8'' NPT

Diaphragm area

cm²

120

280

530

530

1000

Spring range

bar

0.9 - 2.0

0.8 - 3.0

0.8 - 2.8

0.7 - 3.0

0.3 - 0.9

Minimum air pressure

bar

6.0

6.0

6.0

6.0

6.0

Regulating lift

mm

20

35

40

60

60

Weight

ca. kg

3.0

5.0

12.5

14.0

37.0
?
