Type 40281 - Inductive Proximity Switches EEx-Box

Inductive Proximity Switches - EEx-protected

Functions: inductive, Switching element function NAMUR Opener, Output polarity NAMUR,

Rated operating distance 2mm, Nominal voltage 8.2V, Switch frequency 0 - 2000Hz,

until SIL3 acc. to IEC 61508 suitable, protecting class IP68 acc. to EN 60529, EEX ia IIC T6

Bracket, shaft and screws made of stainless steel SS316

Working temperature: -40°C / -40°F (233K) up to +80°C/ +176°F (353K)

Part No. 40281.1114.0A300A0

with cable gland M20 Eexi, made of plastic, WAGO terminal block

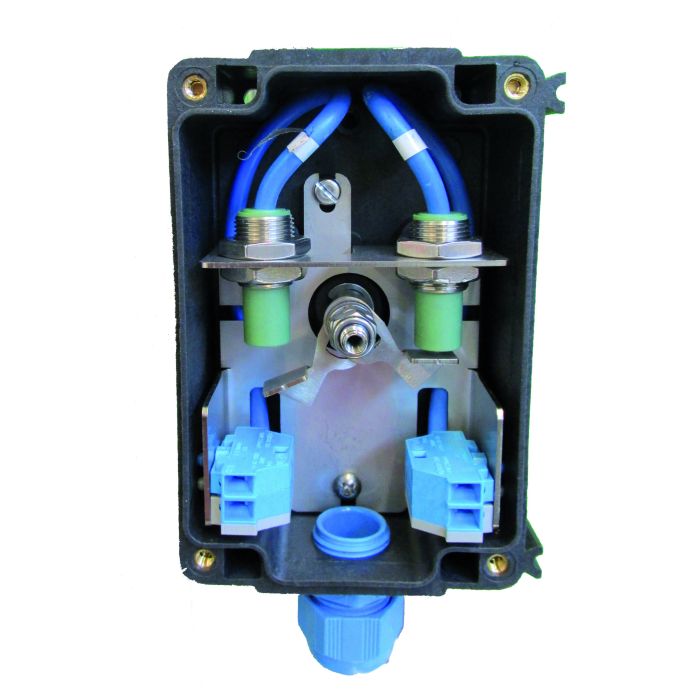

with universal limit switch box ATEX EexiaIICT6 made of plastic IP67

with 2 x switches (NJ2-12GK-SN)

Part No. 40281.1114.0A500A0

with 2 cable glands M20 Eexi, made of plastic, WAGO terminal block

with universal limit switch box ATEX EexiaIICT6 made of plastic IP67

with 2 x switches (NJ2-12GK-SN)

Special equipment with limit switch box made of aluminium

Part No. 40281.1230.0A300B0

with cable gland M20 Eexi, made of plastic, WAGO terminal block

with universal limit switch box ATEX EexiaIICT6 made of aluminium IP67

with 2 x switches (NJ2-12GK-SN)

Part No. 40281.1230.0A600B0

with cable gland 1/2" Eexi NPT, made of plastic, WAGO terminal block

with universal limit switch box ATEX EexiaIICT6 made of aluminium IP67

with 2 x switches (NJ2-12GK-SN)
