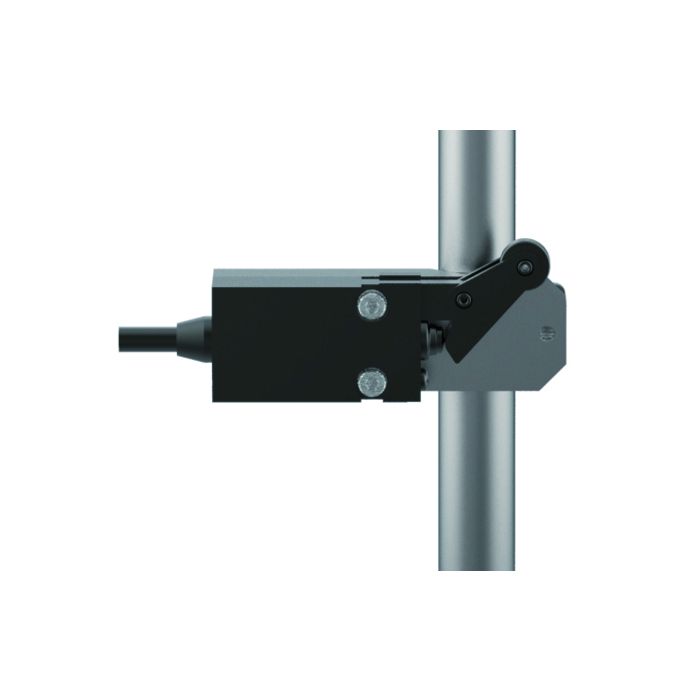

Type 41075, Type 41375 - Position and Limit Switches

Position and Limit Switches, including fixing device

Offshore version

Limit switch (0/100%) with fixing device, Parallel roller lever with seal collar WPH,

quick-break switch, max. fuse rating 5A gG/gN-fuse, switching frequency 1800/h

Standard version

for actuators type 27511, 27512, 27521 and 27522

Part-No. 41075.0014.1023100

Protection class IP66 acc. to IEC/EN 60529,

Rated operating current/-voltage Ie/Ue: 5A / 250VAC; 0,2A / 230VDC,

with cable 4x 0,75 mm² - cable 5 meter long,

change-over contact with double break (1 break contact/ 1 make contact),

Ambient temperature -40°C / -40°F up to +60°C / 140°F

Ex-marking:

II 2G Ex d IIC T6 Gb,

II 2D Ex tb IIIC T80°C Db IP65

IECEx Ex d IIC T6 Gb

Ex tb IIIC T80°C Db -HTMLBREAK-

for actuators type 27514 and 27515

Part-No. 41375.0014.1023100

Protection class IP66 acc. to IEC/EN 60529,

Rated operating current/-voltage Ie/Ue: 5A / 250VAC; 0,2A / 230VDC,

with cable 4x 0,75 mm² - cable 5 meter long,

change-over contact with double break (1 break contact/ 1 make contact),

Ambient temperature -40°C / -40°F up to +60°C / 140°F

Ex-marking:

II 2G Ex d IIC T6 Gb,

II 2D Ex tb IIIC T80°C Db IP65

IECEx Ex d IIC T6 Gb

Ex tb IIIC T80°C Db

Available options - on request only:

· NonEX-version
