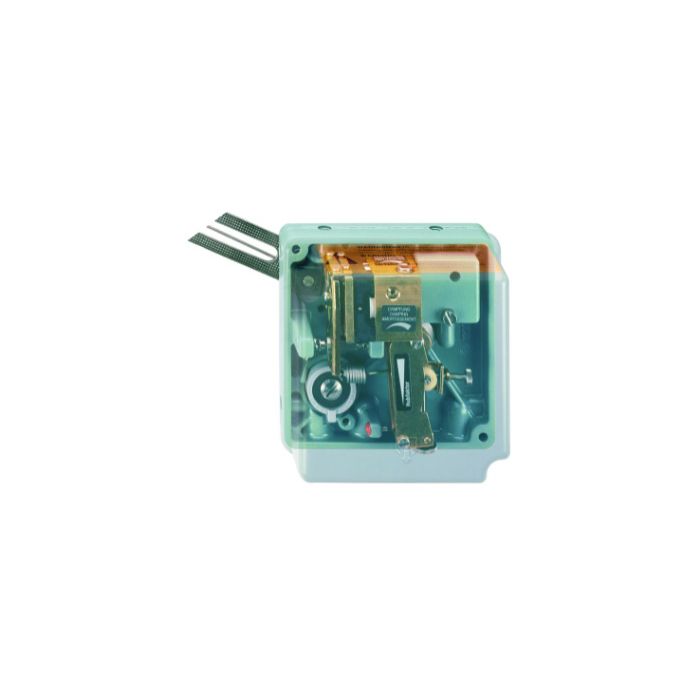

Type 41090 - Pneumatic Positioner

Pneumatic positioner for pneumatic Actuator, including fixing device

ATTENTION - operate only with dry, oil-free air acc. to IEC654-2 !

Protecting class IP54 acc. to EN 60529,

Part No. 41090.0981.22NB200

Operation: simple, Inlet air pressure: max. 6.0 bar - connection with female thread G1/8

Independent adjustment of stroke range and zero,

Signal range 0.2 - 1.0 bar or split range down to Δw 0.2 bar,

adjustable amplification and damping,

Ambient temperature: -40°C / -40°F up to +80°C / 176°F
