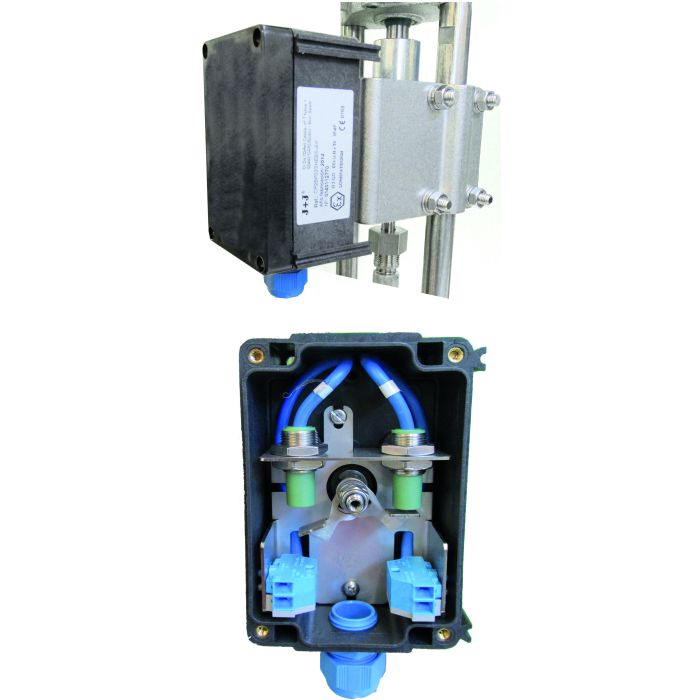

Type 41281 - Inductive Proximity Switches EEx-Box

Inductive Proximity Switches - EEx-protected, including fixing device

Functions: inductive

Switching element function: Opener

Nominal voltage: 8,2V

Shaft: Stainless steel

Material limit switch box: Latiohm

Part No. 41281.1114.FA300A0 (incl. mounting material)

Part No. 40281.1114.0A300A0 (without mounting material)

with cable gland M20 Eexi, made of plastic, WAGO terminal block

with universal limit switch box ATEX II 2G EEx ia IIC T6 made of plastic IP67

2 x inductive switches (NJ5-11-N-G)

Working temperature: -25°C / -13°F (248K) up to +80°C / +176°F (353K)

Rated operating distance: 5mm

Safety rated operating distance: 0-4.05mm

Frequency 0 - 3000Hz

SIL 2 acc. to IEC 61508

Output type: NAMUR

Part No. 41281.1230.FA300A0 (incl. mounting material)

Part No. 40281.1230.0A300A0 (without mounting material)

with cable gland M20 Eexi, made of plastic, WAGO terminal block

with universal limit switch box ATEX II 2G EEx ia IIC T6 made of plastic IP67

2 x inductive switches (NJ2-12GK-SN)

Working temperature: -40°C / -40°F (233K) up to +80°C / +176°F (353K)

Rated operating distance: 2mm

Safety rated operating distance: 0-1.62mm

Frequency 0 - 2000Hz

SIL 3 acc. to IEC 61510

Output type: NAMUR with safety function

Material limit switch box: Aluminium Al Si 12

Part No. 41281.1230.FA300B0 (incl. mounting material)

Part No. 40281.1230.0A300B0 (without mounting material)

with cable gland M20 Eexi, made of plastic, WAGO terminal block

with universal limit switch box ATEX II 2G EEx ia IIC T6 made of plastic IP67

2 x inductive switches (NJ2-12GK-SN)

Working temperature: -40°C / -40°F (233K) up to +80°C / +176°F (353K)

Rated operating distance: 2mm

Safety rated operating distance: 0-1.62mm

Frequency 0 - 2000Hz

SIL 3 acc. to IEC 61510

Output type: NAMUR with safety function
