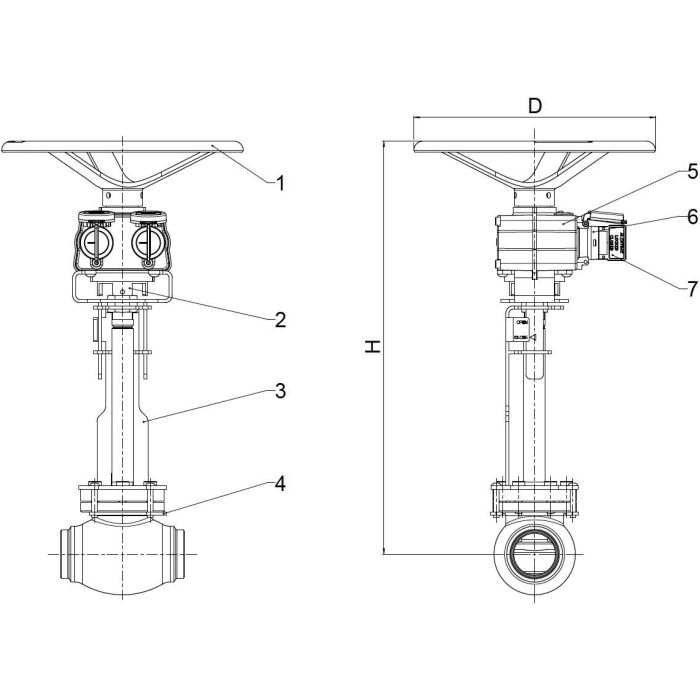

Type 66394 - Alcatraz-Valve locking

Alcatraz-Valve locking

for protection against unauthorized operating of valves

valve interlock for DN10 - DN200

stainless steel 316 electro polished (offshore suitable)

with position indicator OPEN / CLOSED

handwheel made of G20Mn5, coated with dacromet

Part No. 66394.0100.0000C

Type SML 1 (Single key Multi turn interLock) interlocked with valve closed (DN10-DN150)

Part No. 66394.0100.0000O

Type SML 1 (Single key Multi turn interLock) interlocked with valve opened (DN10-DN150)

Part No. 66394.0100.0000C-O

Type DML 1 (Double key Multi turn interLock) interlocked with valve closed and opened (DN10-DN150)

Part No. 66394.0300.0000C

Type SML 3 (Single key Multi turn interLock) interlocked with valve closed (DN200)

Part No. 66394.0300.0000O

Type SML 3 (Single key Multi turn interLock) interlocked with valve opened (DN200)

Part No. 66394.0300.0000C-O

Type DML 3 (Double key Multi turn interLock) interlocked with valve closed and opened (DN200)

Part No. 66322.0002.0000

Control key for locking device

Part No. 66322.0003.0000

Master key for locking device

Part No. 66322.0004.2000

Key box for two keys

Part No. 66322.0004.3000

Key box for three keys

Part No. 66322.0004.4000

Key box for four keys

Part No. 66322.0005.1000

Loose Toolset
