Type E4186-1 - Spare part kit

Datasheet ID: CR_E4186_1_2

Description

chevron-down

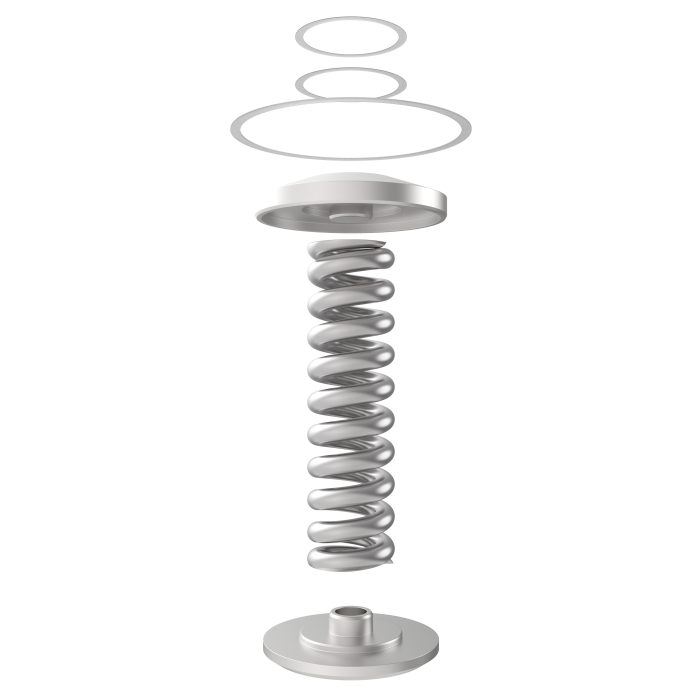

Compression springs

for Cryogenic-Pressure Regulator, stainless steel, PN50

"cleaned and degreased for oxygen service"

suitable for:

Data sheets

chevron-down
CR_E4186_1_2_en.pdf
More Information
Type (Series) E4186-1
Solution H2, Air Gases
Solution Area Transport, Storage
SKU CR_E4186_1_2
Materials

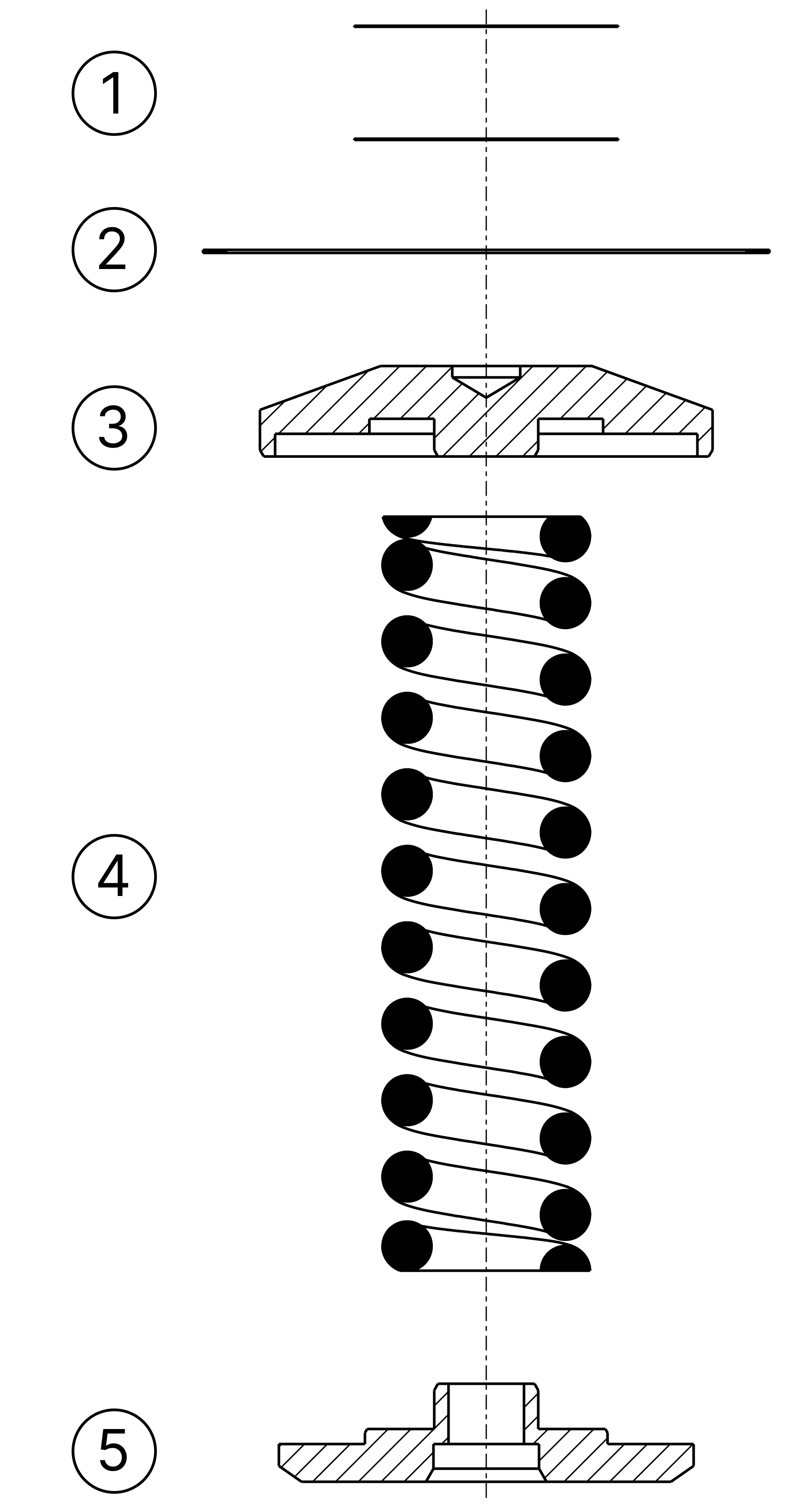

Spare parts

1

Gasket 30x35x0.15 mm

2

Gasket 75.1x69x0.4 mm

3

Spring plate

4

Compression springs

5

Centering disc
Versions

Type E4186.1000.X

Technical data

Nominal size

DN

20

20

20

Dimension code

.X.

0011

0012

0013

Set point range

bar

1 bis 12

6 bis 24

16 bis 38

Weight

ca. kg

0.25

0.65

0.90
?
