Type 01021

Applications:

Suitable for non-toxic, non-inflammable fluids, gases and vapours.

The laws, regulations and standards are to observe for the range of application.

Working temperatures and pressures:

up to max. 16.0 bar: -10°C / +14°F (263K) up to +80°C / +176°F (353K)

up to max. 10.0 bar: -10°C / +14°F (263K) up to +120°C / +248°F (393K)

up to max. 6.0 bar: -10°C / +14°F (263K) up to +160°C / +320°F (433K)

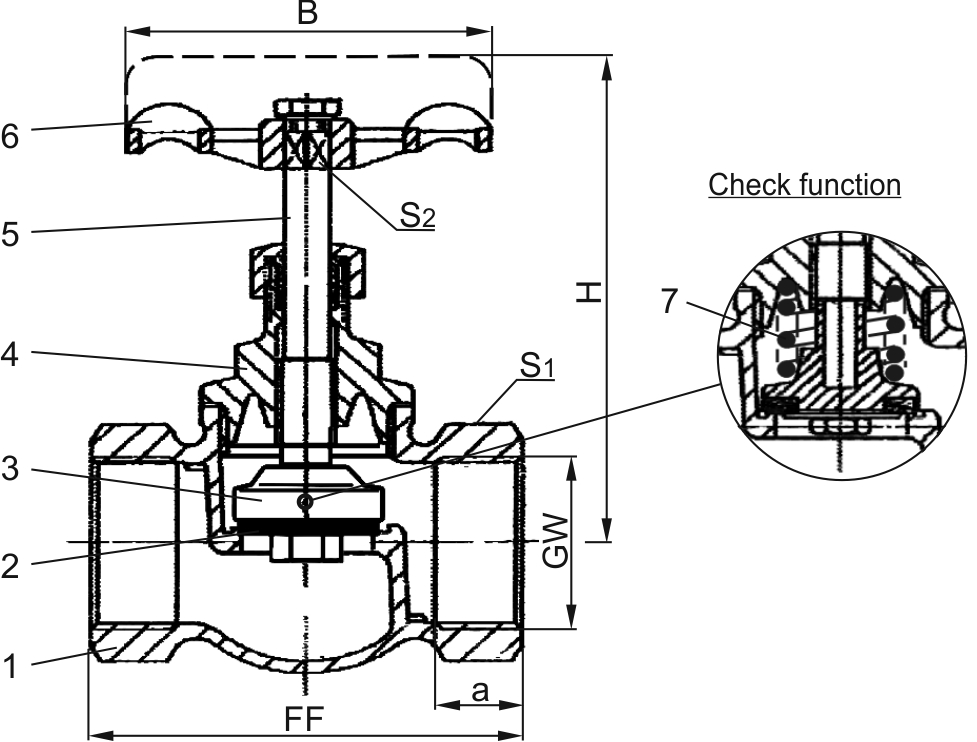

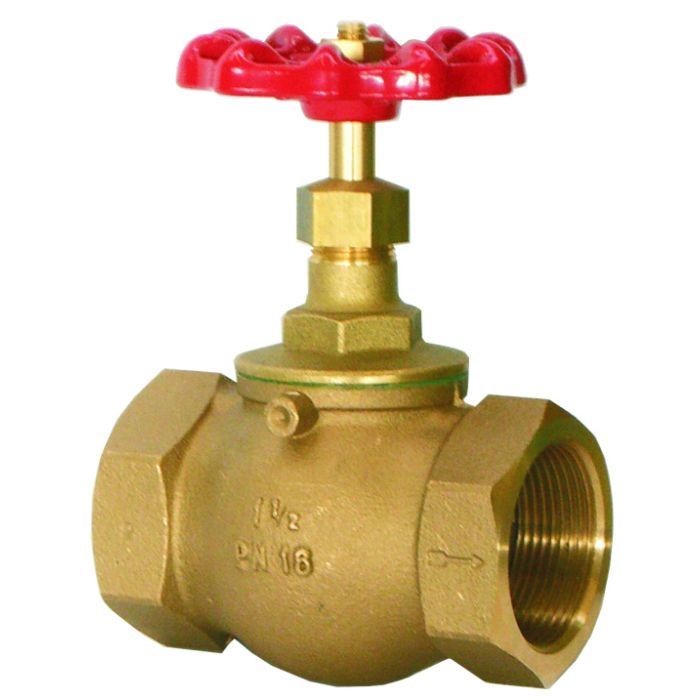

Globe Valves, PN16, DIN 3844

Bronze body, screwed topwork in brass

Part No. 01021.X.0000

Part No. 01021.X.5000 Globe/Check Valve

Female thread type G (BSPP) acc. to ISO 228/1

Available options - on request only:

· Handwheel in plasic DIN 388-1

· Valve with safety plate in brass
