Type 05083

Applications:

Suitable for non-toxic, non-inflammable fluids, gases and vapours.

The laws, regulations and standards are to observe for the range of application.

Working temperatures and pressures:

up to max. 16.0 bar: -10°C / +14°F (263K) up to +80°C / +176°F (353K)

up to max. 10.0 bar: -10°C / +14°F (263K) up to +120°C / +248°F (393K)

up to max. 6.0 bar: -10°C / +14°F (263K) up to +160°C / +320°F (433K)

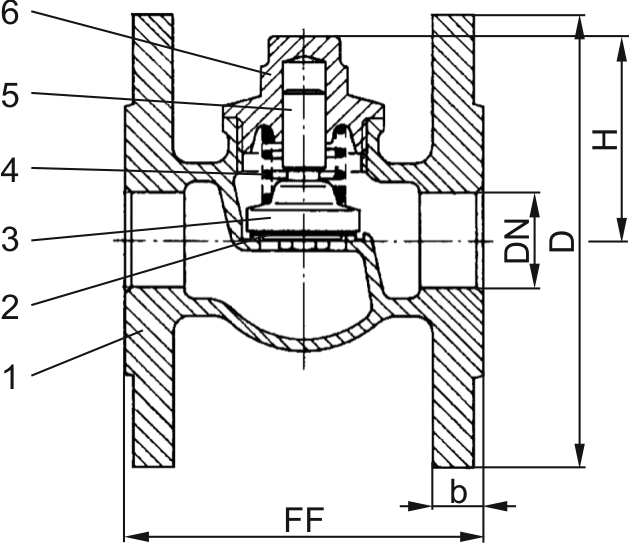

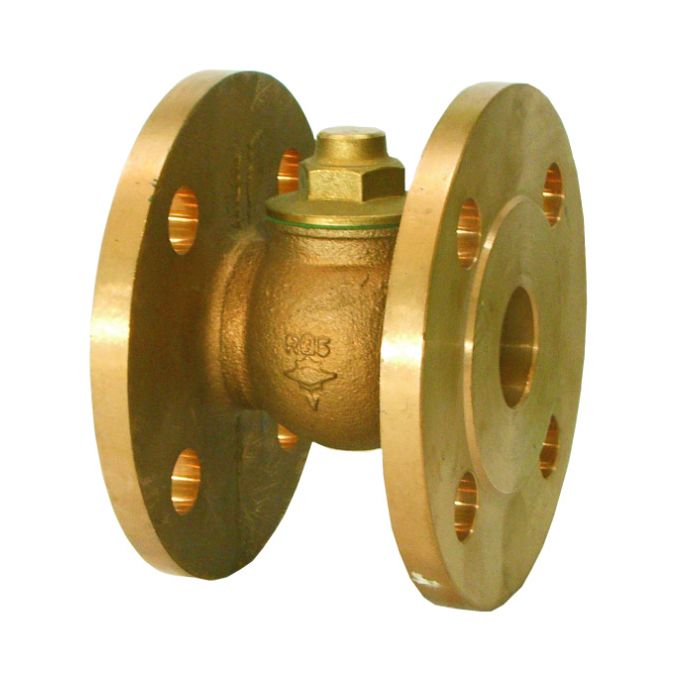

Check Valves, PN16

Bronze body, screwed cap in brass

Part No. 05083.X.0160

Flanged connection acc. to DIN EN 1092-3 PN16

Disc with FPM seal

Available options - on request only:

· Disc with PTFE seal
