HEROSE Type 06125, Type 06126

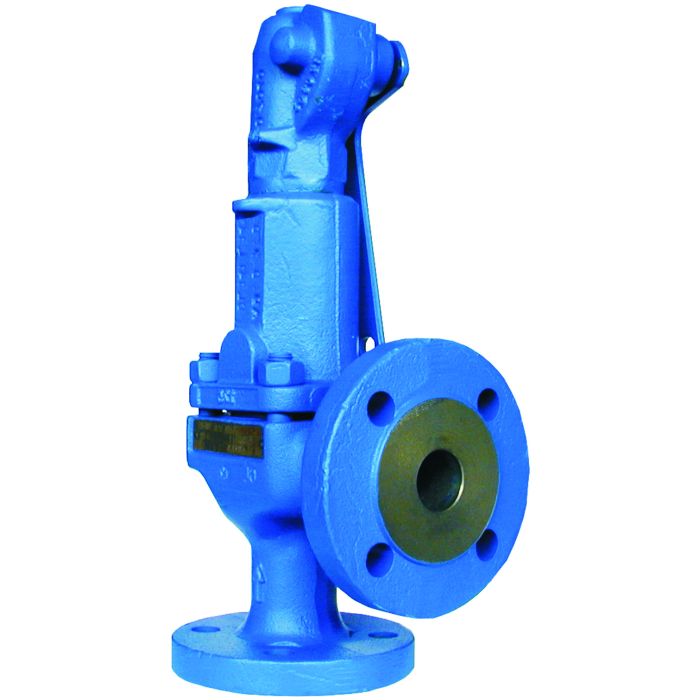

The product shown in the picture may differ from the product sold.

Type 06125, Type 06126

Datasheet ID: IN_06125_06126

Field of application

Applications:

Provided as safety device for protection against excessive pressure

in pressure vessels.

Approved for gases, vapours and fluids.

Working temperatures: -85°C / -121°F (188K) up to +450°C / +842°F (723K)

Safety Valves, angle type, cast steel

type tested, TÜV-SV.577. S/G/L

Standard safety valve

metal to metal seated, with lifting device

Flanged connection acc. to DIN EN 1092-1 PN40

Part No. 06125.X.0000

open bonnet

Part No. 06126.X.0000

closed bonnet

Available options - on request only:

· Disc with soft sealing

· Extended pressure and temperature ranges

IN_06125_06126_en.pdf

More Information

Materials

Versions

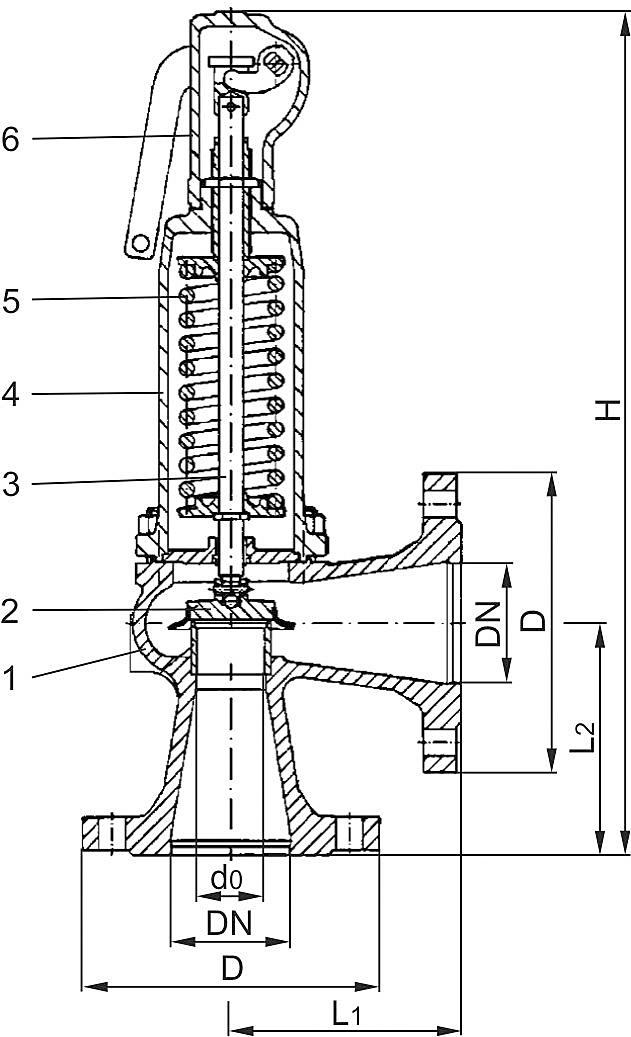

Type 06125, 06126	Technical data
Nominal size	DN	15	20	25	32	40	50	65	80	100	125
Orifice	d₀	12	18	18	18	23	29	37	46	60	74
Dimension code	.X.	0150	0200	0250	0320	0400	0500	0650	0800	1000	1250
Set pressure saturated steam	bar	0.2-32	0.2-32	0.2-32	0.2-32	0.2-32	0.2-32	0.2-32	0.2-32	0.2-30	0.2-24
Set pressure air and fluids	bar	0.2-40	0.2-40	0.2-40	0.2-40	0.2-40	0.2-40	0.2-40	0.2-35	0.2-30	0.2-32
Flange diameter	D	95	105	115	140	150	165	185	200	235	270
Height Type 06125	H	310	315	320	325	335	360	470	525	605	740
Height Type 06126	H	305	310	315	320	330	355	475	530	590	745
Length	L₁	90	95	100	105	115	125	145	155	175	200
Length	L₂	90	95	100	105	115	125	145	155	175	200
Weight	ca. kg	5.0	6.0	6.0	8.0	9.0	12.0	15.0	20.0	33.0	48.0
Coeff. of discharge gases, vapours	α_w	0.29	0.29	0.38	0.38	0.38	0.38	0.38	0.38	0.38	0.38
Coeff. of discharge fluids	α_w	0.19	0.19	0.25	0.25	0.25	0.25	0.25	0.25	0.25	0.25
