Type 06395

Datasheet ID: IN_06395_1

Field of application

chevron-down

Applications:

Provided as safety device for protection against excessive pressure

in pressure vessels and steam boilers.

Description

chevron-down

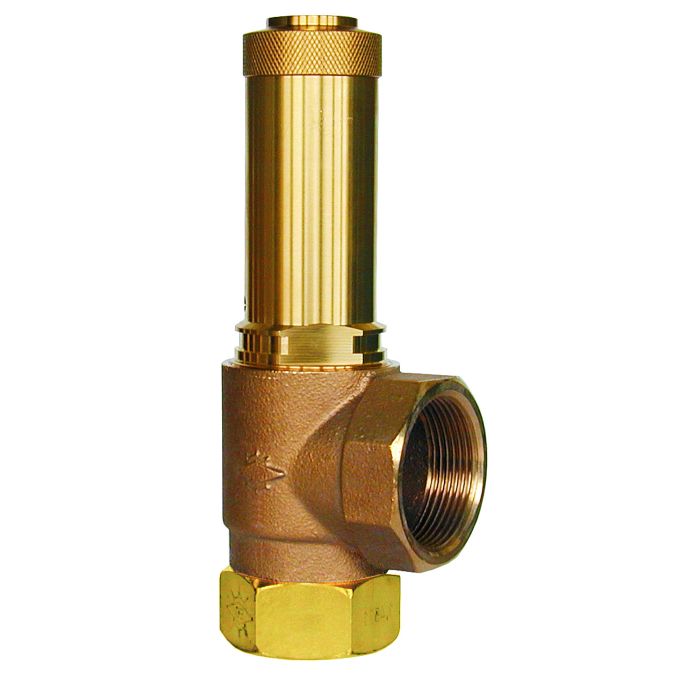

Safety Valves, angle type, bronze, type tested TÜV-SV.910. S/G

Standard safety valve

open bonnet, with lifting device and enlarged outlet

In- and outlet: female thread type G (BSPP) acc. to ISO 228/1

Part No. 06395.X.0000

metal to metal seated for saturated steam, air and similar gases

Working temperature: -50°C / -58°F (223K) up to +225°C / +437°F (498K)

Part No. 06395.X.0500

with PTFE/carbon filled valve seal for saturated steam, air and similar gases

Working temperature: -50°C / -58°F (223K) up to +185°C / +365°F (458K)

Part No. 06395.X.0600

with EPDM valve seal for saturated steam, air and similar gases

Working temperature: -40°C / -40°F (233K) up to +150°C / +302°F (423K)

Available options - on request only:

· stainless steel inlet body - material 1.4571

· external parts nickel plated

Certificates

chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
0045/202/1201/Z/00627/21/D/001(00)
TÜV Verband (Approval mark number) chevron-down
21-910 DE
21-910 EN
License of Special Equipment (China) (TS) chevron-down
TSF700D36-2029
Ukraine (Ukraine) chevron-down
UA.TR.107.127.08-26
UA.TR.107.135.03-26
UA.D.135.02-26

Data sheets

chevron-down
IN_06395_1_en.pdf

Operating Instructions

chevron-down
HEROSE-Manual-IN_06395_1-1

Declarations of Conformity

chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
001 SV (EN)
Pressure Equipment Directive (2014/68/EU) chevron-down
001SV (DE, EN, CN)
001SV (DE, EN, CZ)
001SV (DE, EN, ES)
001SV (DE, EN, FR)
001SV (DE, EN, IT)
001SV (DE, EN, NL)
001SV (DE, EN, PL)
001SV (DE, EN, RU)
More Information
Type (Series) 06395
Solution Air Gases, Industry
Solution Area Storage, Processes, Compressed Air, Steam
SKU IN_06395_1

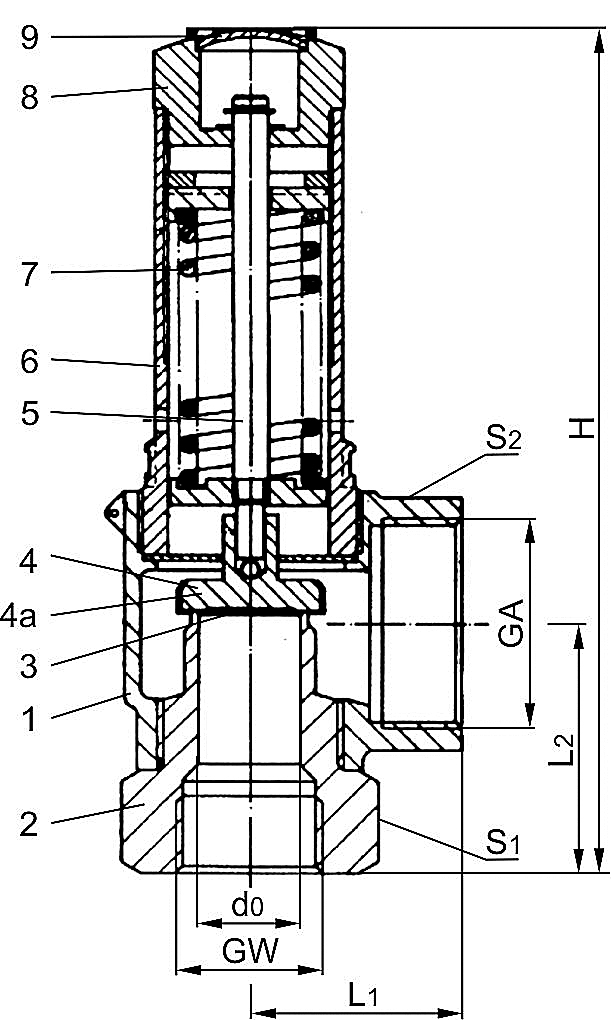

Materials

Materials

DIN EN

ASME/ASTM

1

Body

CC491K

B 62 UNS C83600

2

Inlet body

CW614N

B 111 UNS C28000

3

Valve seal

PTFE/Carbon filled or EPDM

4

Disc metal seated

1.4541

A 276 Grade 321

4a

Disc soft seated

CW614N

B 249 UNS C38500

5

Stem

CW614N

B 249 UNS C38500

6

Bonnet

CW614N

B 249 UNS C38500

7

Spring

1.4571

A 313 Grade 316Ti

8

Lifting device

CW614N

B 249 UNS C38500

9

Closing cap

CW507L

B 36 UNS C26800
Versions

Type 06395

Technical data

Nominal size

GW

1/2

3/4

1

1-1/4

Orifice

d0

15

18

23

28

Dimension code

.X.

0400

0600

1000

1200

Set pressure range metal seated

bar

0.5-25

0.5-25

0.5-25

0.5-12

Set pressure range PTFE seal

bar

0.5-25

0.5-25

0.5-25

0.5-12

Set pressure range EPDM seal

bar

0.5-3

0.5-3

0.5-3

0.5-3

Outlet

GA

1

1-1/4

1-1/2

2

Height

H

144

166

195

222

Length

L1

36

50

48

58

Length

L2

41

48

58

68

Wrench size across flats

S1

32

41

50

55

Wrench size across flats

S2

41

50

58

70

Weight

ca. kg

0.75

1.25

1.85

3.0

Coeff. of discharge from 3.0 bar

αw

0.64

0.58

0.57

0.66
