HEROSE Type 06395

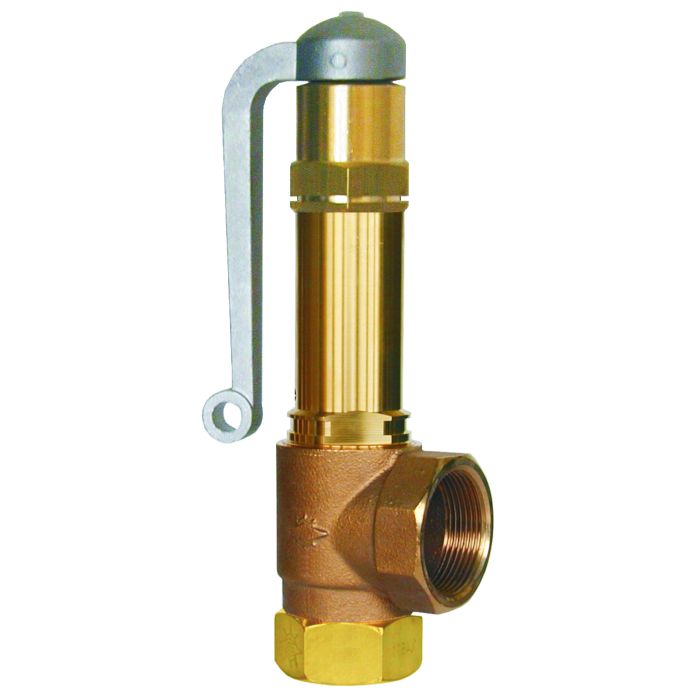

The product shown in the picture may differ from the product sold.

Type 06395

Datasheet ID: IN_06395_2

Field of application

Applications:

Provided as safety device for protection against excessive pressure

in pressure vessels and steam boilers.

Description

Safety Valves, angle type, bronze, type tested TÜV-SV.910. S/G

Standard safety valve

open bonnet, with lifting device and enlarged outlet

In- and outlet: female thread type G (BSPP) acc. to ISO 228/1

Part No. 06395.X.0080

metal to metal seated for saturated steam, air and similar gases

Working temperature: -50°C / -58°F (223K) up to +225°C / +437°F (498K)

Part No. 06395.X.0580

with PTFE/carbon filled valve seal for saturated steam, air and similar gases

Working temperature: -50°C / -58°F (223K) up to +185°C / +365°F (458K)

Part No. 06395.X.0680

with EPDM valve seal for saturated steam, air and similar gases

Working temperature: -40°C / -40°F (233K) up to +150°C / +302°F (423K)

Available options - on request only:

· stainless steel inlet body - material 1.4571

· external parts nickel plated

Certificates

Pressure Equipment Directive (2014/68/EU)

0045/202/1201/Z/00627/21/D/001(00)

TÜV Verband (Approval mark number)

21-910 DE

21-910 EN

License of Special Equipment (China) (TS)

TSF700D36-2029

Ukraine (Ukraine)

UA.TR.107.127.08-26

UA.TR.107.135.03-26

UA.D.135.02-26

Data sheets

IN_06395_2_en.pdf

Operating Instructions

HEROSE-Manual-IN_06395_2-1

Declarations of Conformity

Pressure Equipment Safety Regulation 2016 (PESR 2016)

001 SV (EN)

Pressure Equipment Directive (2014/68/EU)

001SV (DE, EN, CN)

001SV (DE, EN, CZ)

001SV (DE, EN, ES)

001SV (DE, EN, FR)

001SV (DE, EN, IT)

001SV (DE, EN, NL)

001SV (DE, EN, PL)

001SV (DE, EN, RU)

More Information
Materials
Versions
Product Variants

More Information

Type (Series)	06395
Solution	Air Gases, Industry
Solution Area	Storage, Processes, Compressed Air, Steam
SKU	IN_06395_2

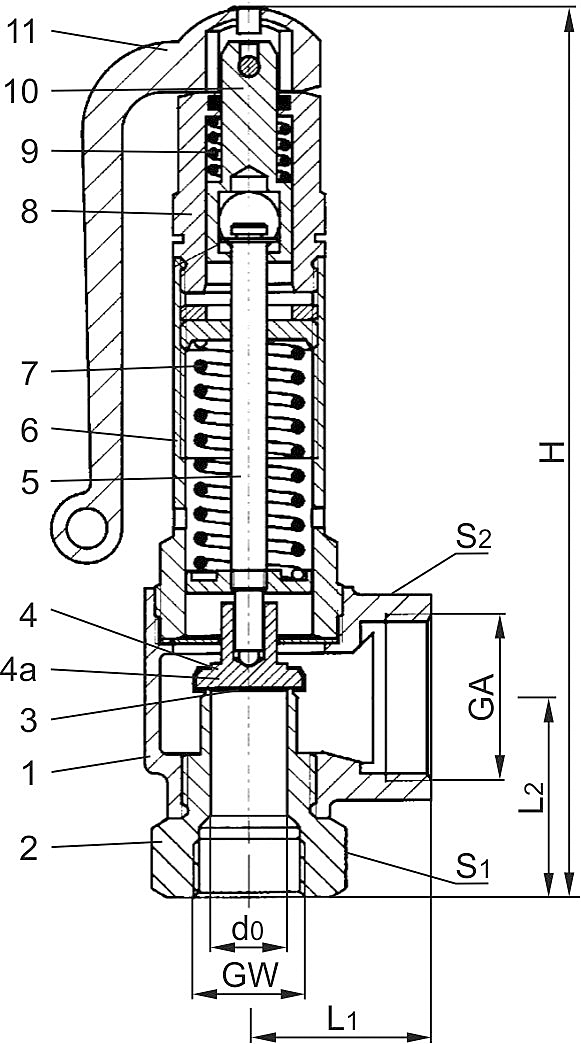

Materials

Materials		DIN EN	ASME/ASTM
1	Body	CC491K	B 62 UNS C83600
2	Inlet body	CW614N	B 111 UNS C28000
3	Valve seal	PTFE/Carbon filled or EPDM
4	Disc metal seated	1.4541	A 276 Grade 321
4a	Disc soft seated	CW614N	B 249 UNS C38500
5	Stem	CW614N	B 249 UNS C38500
6	Bonnet	CW614N	B 249 UNS C38500
7	Spring	1.4571	A 313 Grade 316Ti
8	Lifting cap	CW614N	B 249 UNS C38500
9	Lifting spring	1.4571	A 313 Grade 316Ti
10	Lifting stem	CW614N	B 249 UNS C38500
11	Lever	1.4408	A 351 CF8M

Versions

Type 06395	Technical data
Nominal size	GW	1/2	3/4	1	1-1/4
Orifice	d₀	15	18	23	28
Dimension code	.X.	0400	0600	1000	1200
Set pressure range metal seated	bar	0.5-25	0.5-25	0.5-25	0.5-12
Set pressure range PTFE seal	bar	0.5-25	0.5-25	0.5-25	0.5-12
Set pressure range EPDM seal	bar	0.5-3	0.5-7	0.5-4.6	0.5-6
Outlet	GA	1	1-1/4	1-1/2	2
Height	H	180	200	245	270
Length	L₁	36	50	48	58
Length	L₂	41	48	58	68
Wrench size across flats	S₁	32	41	50	55
Wrench size across flats	S₂	41	50	58	70
Weight	ca. kg	0.95	1.45	2.4	3.7
Coeff. of discharge from 3.0 bar	α_w	0.64	0.58	0.57	0.66
