Type 06820

Datasheet ID: IN_06820_1

Field of application

chevron-down

Applications:

Provided as safety device for protection against excessive pressure in gas cylinders and pressure vessels. Approved for gases, vapours and liquids. Working temperature: -270°C / -454°F (3K) up to +400°C / +752°F (673K)

Pressure-temperature must be observed, suitable for horizontal installation up to 300 bar

Description

chevron-down

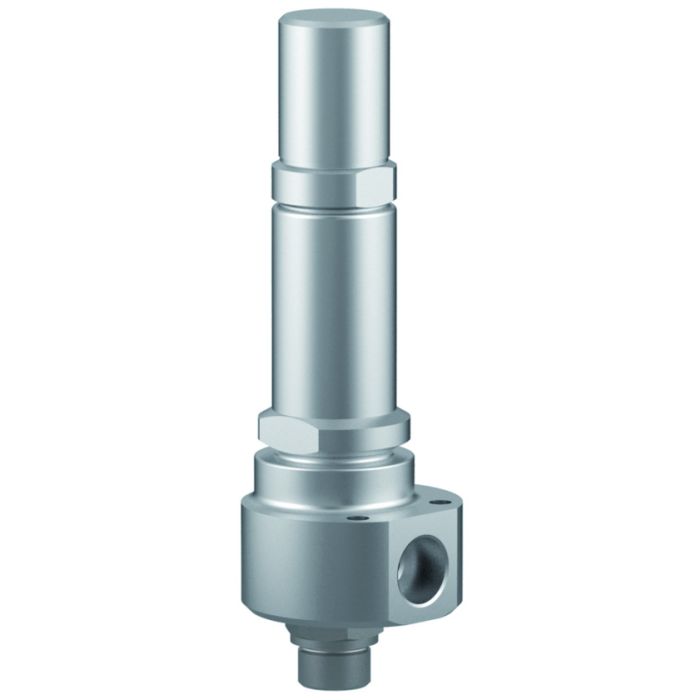

Safety Valves, angle type, stainless steel, type tested, TÜV-SV.1130. S/G/L

Standard safety valve

metal to metal seated, "cleaned and degreased for oxygen service"

closed bonnet, gastight cap

Inlet: male thread type G (BSPP) acc. to ISO 228/1

Outlet: female thread type G (BSPP) acc. to ISO 228/1

Part No. 06820.X.000000M (Pmax 550.0 bar)

Part No. 06820.X.000000H (Pmax 550.0 bar) stellited version

with gastight cap

Available options - on request only:

· Flange- or NPT- connection for in- and outle

· Inlet: Cone & thread connection for d0 6mm - 9M 13/16''-16 UN or 12M 3/4'' - 14NPS

· Special materials such as Monel, Hastelloy or Duplex for medium wetted parts

Certificates

chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
07-202-1201-Z-0121-18-D-0089
0045/202/1201/Z/00281/22/D/001(03)
TÜV Verband (Approval mark number) chevron-down
Cert 23-1130 EN
Cert 23-1130 DE
Ukraine (Ukraine) chevron-down
UA.TR.107.135.03-26
UA.TR.107.127.07-26
UA.D.135.01-26

Data sheets

chevron-down
IN_06820_1b_en.pdf

Declarations of Conformity

chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
001 SV (EN)
Pressure Equipment Directive (2014/68/EU) chevron-down
001SV (DE, EN, CN)
001SV (DE, EN, CZ)
001SV (DE, EN, ES)
001SV (DE, EN, FR)
001SV (DE, EN, IT)
001SV (DE, EN, NL)
001SV (DE, EN, PL)
001SV (DE, EN, RU)
More Information
Type (Series) 06820
Solution H2, Air Gases
Solution Area Manufacturing, Transport, Storage, Application, Processes
SKU IN_06820_1

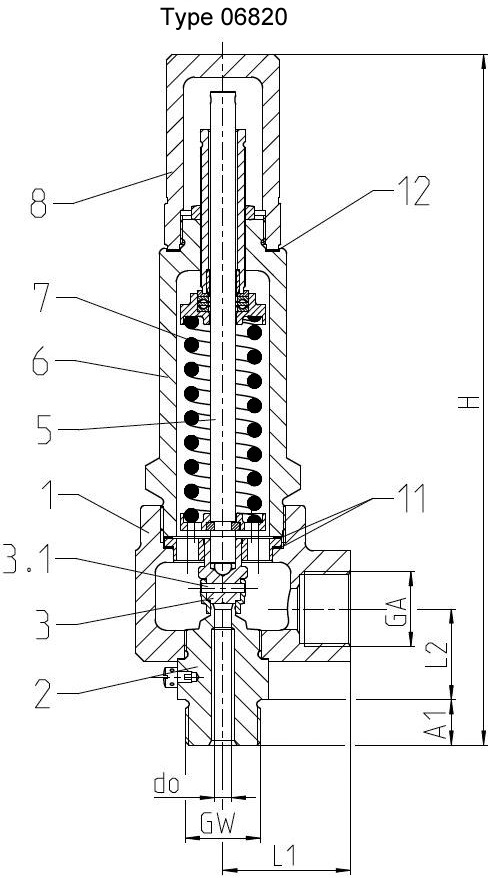

Materials

Materials

DIN EN

ASME/ASTM

1

Outlet body

1.4404

A 276 Grade 316L

2

Inlet body

1.4571

A 276 Grade 316Ti

3

Disc

1.4571

A 276 Grade 316Ti

5

Stem

1.4404

A 276 Grade 316L

6

Bonnet

1.4404

A 276 Grade 316L

7

Spring

1.4571

A 313 Grade 316Ti

8

Cap

1.4404

A 276 Grade 316L

Spare Parts

2

Inlet body

1.4571

316Ti

3

Disc

1.4571

316Ti

3.1

Split pin

1.4310

301

11

Gasket

Graphite

12

Gasket

Graphite

Versions

Type 06820

Technical data

Nominal size

GW

3/4

Orifice

d0

6.0

Dimension code

.X.

0633

Set pressure range

bar

30-550

Outlet

GA

3/4

Height

H1

247

Length

L1

45

Length

L2

29

Length

A1

16

Weight 06820

ca. kg

2.9

Coeff. of discharge gases, vapours

αw

0.52

Coeff. of discharge fluids

αw

0.42
?
