Type 50051.0011

Applications:

Provided as safety device for protection against excessive pressure

in pressure vessels, especially for coffee machines.

Approved for non-toxic gases and vapours.

Working temperature: -10°C / +14°F (263K) up to +160°C / +320°F (433K)

For saturated steam use only up to 4 bar and +150°C / +302°F (423K)

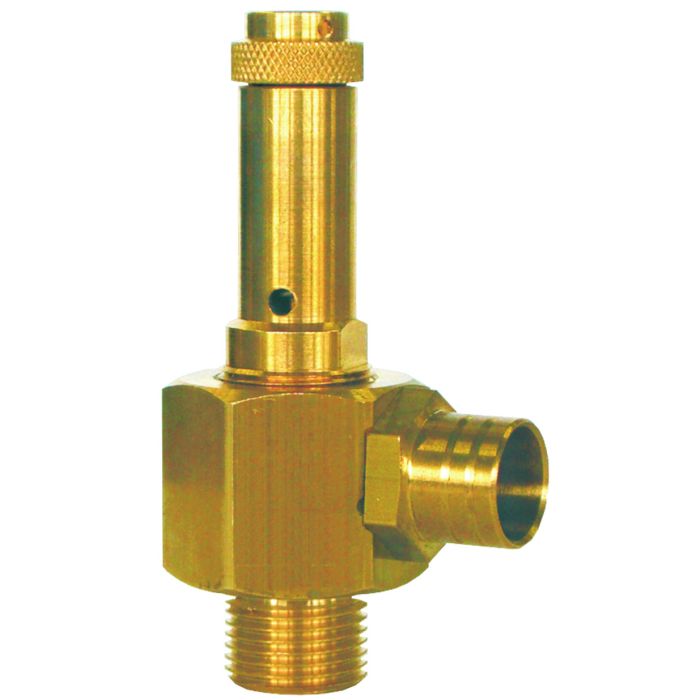

Safety Valves, angle type, brass, type tested TÜV-SV.1009. S/G

Standard safety valve

with EPDM valve seal for vapours and gases

open bonnet, with lifting device

Outlet: female thread M15x1 with installed hose nozzle

Inlet: male thread type G (BSPP) acc. to ISO 228/1

Part No. 50051.0011.0000

Available options - on request only:

· hose nozzle acc. to customer specification

· body material CW509L
