Type 01282 - Bellow Sealed Globe Valve

Datasheet ID: CR_01282

Field of application

chevron-down

Applications:

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -255°C / -427°F (18K) up to +120°C / +248°F (393K)

Leak rate: 10-6 mbar ltr / sec outside, 10-4 mbar ltr / sec seat

Description

chevron-down

"Fire Safe"-design without fire type-testing according to EN ISO 10497

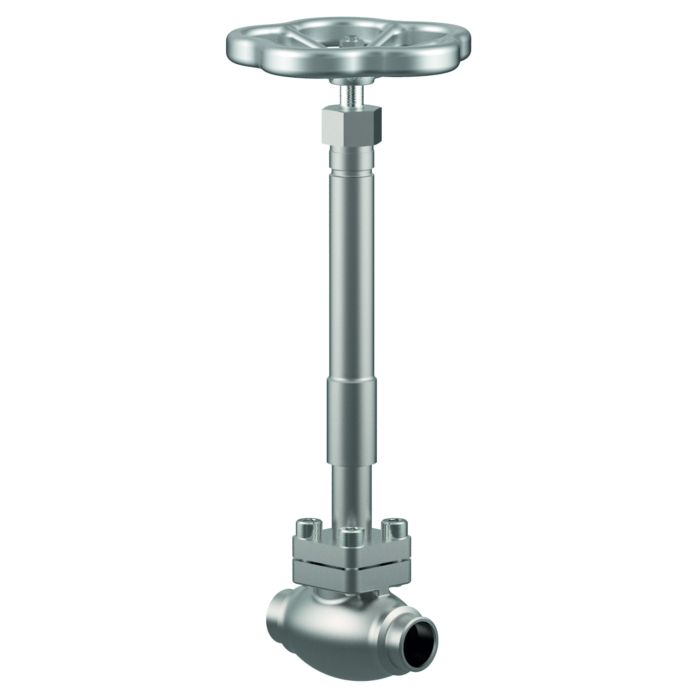

Cryogenic-Bellow Sealed Globe Valve, PN50

Stainless steel body and topwork,

“¦live loaded¦” gland packing

“¦cleaned and degreased for oxygen service¦"

Part No. 01282.X.002*

* Butt weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312

Part No. 01282.X.0024

Socket weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312

Available options - on request only:

· Welded stainless steel stubs acc. to ISO 1127 or ASTM A312 - length FF + 200mm

· Extension H up to 900mm

Certificates

chevron-down
type-examination for LNG (DIN EN 12567) chevron-down
LNG-Certificate_01XXX_02XXX_03XXX_05XXX_06XXX_08XXX_09XXX_11XX
ClassNK (Class Rules) chevron-down
TA22155M
More Information
Type (Series) 01282
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
SKU CR_01282

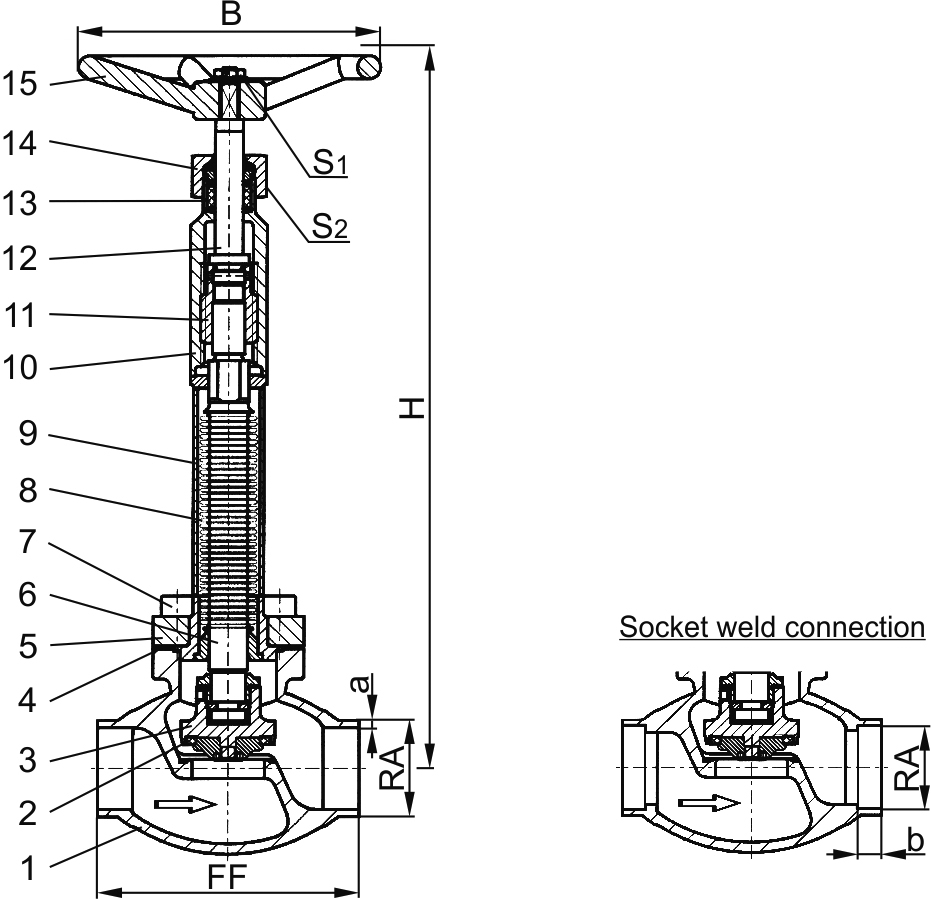

Materials

Materials

DIN EN

ASTM

1

Body

1.4409

A 351 CF3M

2

Valve seal

PTFE / carbon filled (25%)

3

Disc

1.4404

A 276 Grade 316L

4

Bonnet gasket

Graphite

5

Headpiece

1.4404

A 276 Grade 316L

6

Bellow stem

1.4571

A 313 Grade 316Ti

7

Bolts

1.4571/A4

similar A 194 B8T

8

Bellow

1.4571

A 313 Grade 316Ti

9

Elongation tube

1.4571

A 313 Grade 316Ti

10

Headpiece

1.4404

A 276 Grade 316L

11

Bush

CW452K

B 159 UNS C51900

12

Stem

1.4404

A 276 Grade 316L

13

Gland packing

Graphite / PTFE / MICA

14

Gland nut

1.4404

A 276 Grade 316L

15

Handwheel

1.4409

A 351 CF3M
Versions

Type 01282 - Standard design

Technical data

Nominal size

DN

10

15

15

20

25

32

40

40

50

Dimension code

.X.

1012

1517

1521

2026

2533

3238

4042

4048

5060

Face-to-face dimension

FF

70

85

85

100

115

115

130

130

155

Height

H

380

380

380

380

380

380

380

380

380

Outside pipe-Ø ISO 1127

RA

12.0

17.2

21.3

26.9

33.7

38.0

42.4

48.3

60.3

Wall thickness pipe ISO 1127

a

1.0

1.6

2.0

2.0

2.0

2.0

2.0

2.0

2.0

Outside pipe-Ø ASTM A312

RA

13.72

17.15

21.34

26.67

33.40

-

42.16

48.26

60.33

Wall thickness pipe ASTM A312

a

dimensions acc. to S10 or S40

Socket depth

b

6

10

10

13

13

-

13

13

16

Handwheel-Ø

B

150

150

150

150

150

150

150

150

150

Wrench size across flats

S1

7

7

7

7

7

10

10

10

10

Wrench size across flats

S2

30

30

30

30

30

36

36

36

36

Weight

ca. kg

1.6

1.85

1.9

2.3

2.7

3.6

5.1

5.1

7.7

Kvs-Value

m³/h

1.6

2.8

4.3

6.7

11.5

14.0

20.6

22.6

37.1

Cv-Value

gal/min

1.9

3.3

5.0

7.8

13.4

16.2

23.9

26.3

43.2
?
