HEROSE Type 01313 - Actuated Globe Valve

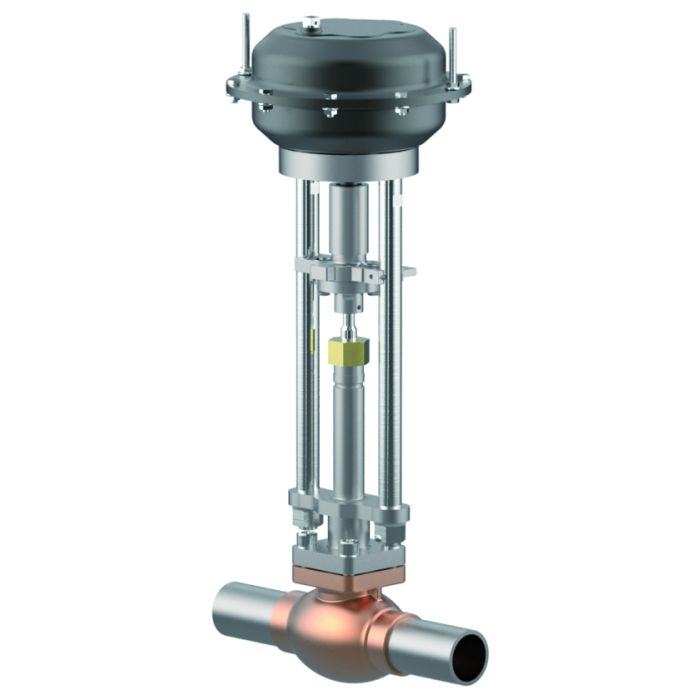

The product shown in the picture may differ from the product sold.

Type 01313 - Actuated Globe Valve

Datasheet ID: CR_01313_2

Field of application

Applications:

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)

Description

Cryogenic-Globe Valves with Pneumatic Actuator, PN50

Bronze body and stainless steel topwork (internal parts bronze)

Actuator - air opens, spring closes or contrary

"¦live loaded¦" gland packing

"¦cleaned and degreased for oxygen service¦" - the actuator is not cleaned and

degreased for oxygen

Part No. 01313.X.*017

Complete with stainless steel stubs acc. to DIN EN 10216-5 or ASTM A312

Available accessories:

· Solenoid valve

· Limit switch

· Electropneumatic positioner etc.

Available options - on request only:

· Actuator “¦cleaned and degreased for oxygen sevice¦”

· Electric actuator

· Valve with check disc

· Valve with control disc (tapered design)

· Further pipe wall thicknesses

Certificates

Transportable Pressure Equipment Directive (2010/35/EU)

07/201/1321/Z/0278/17/oD/0002

0045/201/1201/Z/00649/23/oD/001(00)

type-examination for LNG (DIN EN 12567)

LNG-Certificate_01XXX_02XXX_03XXX_05XXX_06XXX_08XXX_09XXX_11XX

License of Special Equipment (China) (TS)

TSX71000520230057

Pressure Equipment Safety Regulation 2016 (PESR 2016)

0879-PESR-DD1-23290-4-DE

Pressure Equipment Directive (2014/68/EU)

0045/202/1201/Z/00366/23/D/001(00)

Ukraine (Ukraine)

UA.276.127.03-26

UA.D.127.04-26

Data sheets

CR_01313_2_en.pdf

Declarations of Conformity

Transportable Pressure Equipment Directive (2010/35/EU)

TTV (DE, EN, ES)

TTV (DE, EN, CN)

TTV (DE, EN, CZ)

TTV (DE, EN, FR)

TTV (DE, EN, IT)

TTV (DE, EN, NL)

TTV (DE, EN, PL)

TTV (DE, EN, RU)

Pressure Equipment Directive (2014/68/EU)

001TTV (DE, EN, CN)

001TTV (DE, EN, CZ)

001TTV (DE, EN, ES)

001TTV (DE, EN, FR)

001TTV (DE, EN, IT)

001TTV (DE, EN, NL)

001TTV (DE, EN, PL)

001TTV (DE, EN, RU)

002TTV (DE, EN, CN)

002TTV (DE, EN, CZ)

002TTV (DE, EN, ES)

002TTV (DE, EN, FR)

002TTV (DE, EN, IT)

002TTV (DE, EN, NL)

002TTV (DE, EN, PL)

002TTV (DE, EN, RU)

Pressure Equipment Safety Regulation 2016 (PESR 2016)

002TTV (EN)

More Information
Materials
Versions

More Information

Type (Series)	01313
Solution	LNG, Air Gases
Solution Area	Transport, Storage, Refueling, Processes
SKU	CR_01313_2

Materials

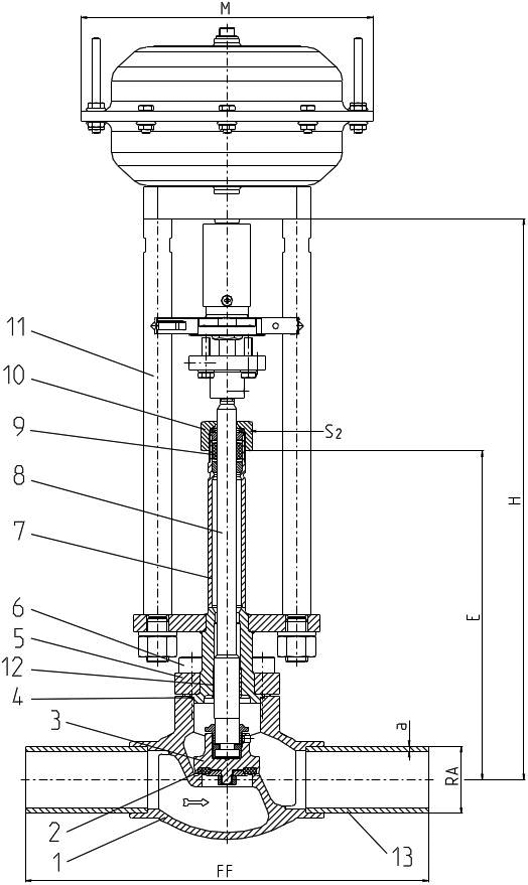

Materials		DIN EN	ASTM
1	Body	CC491K	B 62 UNS C83600
2	Valve seal	PTFE / Carbon filled (25%)
3	Disc	CW614N	B 283 UNS C38500
4	Bonnet gasket	PTFE
5	Headpiece	1.4301	A 276 Grade 304
6	Bolts	1.4301/A2	A 194 B8
7	Elongation tube	1.4541	A 213 TP 321
8	Stem	1.4301	A 276 Grade 304
9	Gland packing	Graphite / PTFE / MICA
10	Gland nut	CW614N	B 283 UNS C38500
11	Pillars	1.4404	A 276 Grade 316L
12	Bush	CW452K	B 159 UNS C51900
13	Stainless steel stubs	1.4306	A 312 TP304L

Versions

Type 01313 - Standard design	Technical data
Nominal size	DN	10	10	15	20	25	32	40	50
Dimension code	.X.	1012	1017	1521	2027	2533	3242	4048	5060
Face-to-face dimension	FF	210	210	235	235	265	265	290	310
Height	H	370	370	370	370	375	405	420	425
Length	E	195	195	195	200	200	230	230	235
Outside pipe-Ø ISO 1127	RA	12.0	17.2	21.3	26.9	33.7	42.4	48.3	60.3
Wall thickness pipe ISO 1127	a	1.0	2.3	2.6	2.9	3.2	3.2	3.6	3.6
Outside pipe-Ø ASTM A312	RA	-	17.15	21.34	26.67	33.4	42.16	48.26	60.33
Wall thickness pipe ASTM A312	a	dimensions acc. to S10 or S40
Actuator-Ø	M	dependent on actuator
Wrench size across flats	S₂	30	30	30	30	30	36	36	36
Weight w/o actuator	ca. kg	1.75	1.85	2.6	3.0	3.5	4.7	6.7	9.8
*Kvs-Value	m³/h	1.6	2.2	4.3	6.7	11.5	12.1	22.6	37.1
*Cv-Value	gal/min	1.9	2.6	5.0	7.8	13.4	14.1	26.3	43.2
Stroke	mm	10	10	10	7	9	9	11	15
