Type 01470 - Globe Valve

Datasheet ID: CR_01470

Field of application

chevron-down

Applications:

Approved for hydrogen, air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -255°C / -427°F (18K) up to +120°C / +248°F (393K)

Description

chevron-down

Top Entry Cryogenic-Globe Valves, PN50 (DN100=PN40)

Stainless steel body and topwork,

"¦live loaded¦" gland packing

"¦cleaned and degreased for oxygen service¦"

Part No. 01470.X.0*8*

Butt weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312

Available options - on request only:

· Extension H and E acc. to customer specification

· Valve with check disc

Certificates

chevron-down
BV (Class Rules) chevron-down
33354/C0 BV
SMS.W.I./11744/C.0
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
0879-PESR-DD1-23290-4-DE
DNV (Class Rules) chevron-down
TAP00000MM Rev. 3
RINA (Class Rules) chevron-down
MAC322723XG
Pressure Equipment Directive (2014/68/EU) chevron-down
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
Transportable Pressure Equipment Regulation 2009 (TPER 2009) chevron-down
0038/UK/TPER/MUM/PRJ11100534357/2
0038/UK/TPER/MUM/PRJ11100427971/2 Iss. 04
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
0343/TPED/MUM/PRJ11100534357/3
0343/TPED/MUM/PRJ11100427971/4 Iss. 02
ABS (Class Rules) chevron-down
25-0381115-PDA
25-0381115-PDA
092776-7471959-006
Ukraine (Ukraine) chevron-down
UA.276.127.03-26
UA.D.127.04-26

Data sheets

chevron-down
CR_01470_en.pdf

Operating Instructions

chevron-down
HEROSE-Manual-CR_01470-1

Declarations of Conformity

chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
002TTV (EN)
Pressure Equipment Directive (2014/68/EU) chevron-down
002TTV (DE, EN, CN)
002TTV (DE, EN, CZ)
002TTV (DE, EN, ES)
002TTV (DE, EN, FR)
002TTV (DE, EN, IT)
002TTV (DE, EN, NL)
002TTV (DE, EN, PL)
002TTV (DE, EN, RU)
More Information
Type (Series) 01470
Solution H2, LNG, Air Gases
Solution Area Manufacturing, Transport, Storage, Refueling, Processes
SKU CR_01470

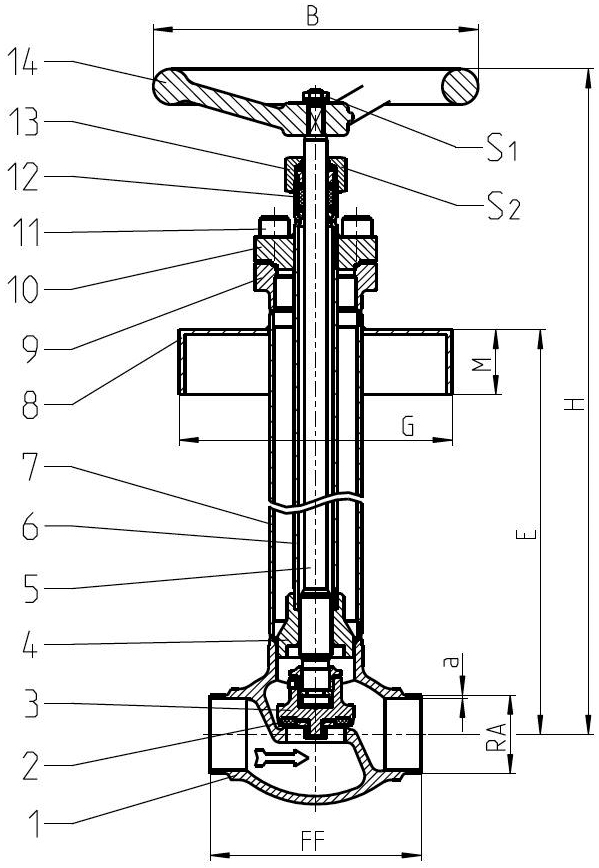

Materials

Materials

DIN EN

ASTM

1

Body

1.4409

A 351 CF3M

2

Valve seal

PCTFE

3

Disc

1.4404

A 276 Grade 316L

4

Guide bush

CW453K

B 103 UNS C52100

5

Stem

1.4404

A 276 Grade 316L

6

Elongation tube

1.4571

A 213TP 316Ti

7

Elongation tube

1.4571

A 213TP 316Ti

8

Cold box feature

1.4571

A 213TP 316Ti

9

Headpiece flange

1.4404

A 276 Grade 316L

10

Headpiece

1.4404

A 276 Grade 316L

11

Bolts

1.4571/A4

similar A 193 B8T

12

Gland packing

Graphite / PTFE / MICA

13

Gland nut

1.4404

A 276 Grade 316L

14

Handwheel

1.4409

A 351 CF3M
Versions

Type 01470 - Standard design

Technical data

Nominal size

DN

65

80

100

Dimension code

.X.

6573

8088

0114

Face-to-face dimension

FF

205

245

280

Height

H

790

840

960

Handwheel-Ø

B

250

315

315

Outside pipe -Ø ASTM A312

RA

73.02

88.90

114.30

Wall thickness pipe ASTM A312

a

dimensions acc. to S10 or S40

Length

A

610

640

750

Length

G

acc. to customer specification

Length

M

acc. to customer specification

Wrench size across flats

S1

13

13

13

Wrench size across flats

S2

41

41

41

Weight

ca. kg

19.6

26.9

37.4

Kvs-Value

m³/h

71.1

104.0

168.0

Cv-Value

gal/min

82.9

121.3

196.0

Stroke

mm

23

25

30
