Type 01473 - Actuated Globe Valve

Datasheet ID: CR_01473

Field of application

chevron-down

Applications:

Approved for hydrogen, air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -255°C / -427°F (18K) up to +120°C / +248°F (393K)

Description

chevron-down

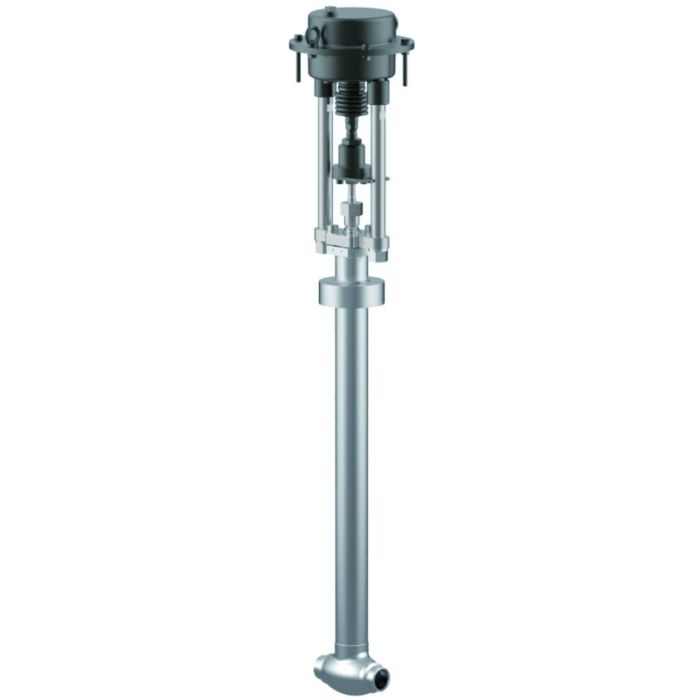

Top Entry Cryogenic-Globe Valves with Pneumatic Actuator, PN50 (DN100=PN40)

Stainless steel body and topwork

"¦live loaded¦" gland packing

"¦cleaned and degreased for oxygen service¦" - the actuator is not cleaned and

degreased for oxygen

Part No. 01473.X.3081

Butt weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312

Available accessories/options - on request only:

· Solenoid valve · Limit switch · Electropneumatic positioner etc.

· Extension H and A acc. to customer specification

· Actuator "¦cleaned and degreased for oxygen service¦"

· Valve with check disc, valve with control disc (tapered design)

Certificates

chevron-down
BV (Class Rules) chevron-down
33354/C0 BV
SMS.W.I./11744/C.0
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
0879-PESR-DD1-23290-4-DE
DNV (Class Rules) chevron-down
TAP00000MM Rev. 3
RINA (Class Rules) chevron-down
MAC322723XG
Pressure Equipment Directive (2014/68/EU) chevron-down
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
Transportable Pressure Equipment Regulation 2009 (TPER 2009) chevron-down
0038/UK/TPER/MUM/PRJ11100534357/2
0038/UK/TPER/MUM/PRJ11100427971/2 Iss. 04
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
0343/TPED/MUM/PRJ11100534357/3
0343/TPED/MUM/PRJ11100427971/4 Iss. 02
ABS (Class Rules) chevron-down
25-0381115-PDA
25-0381115-PDA
092776-7471959-006
Ukraine (Ukraine) chevron-down
UA.276.127.03-26
UA.D.127.04-26

Data sheets

chevron-down
CR_01473_en.pdf

Declarations of Conformity

chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
002TTV (EN)
Pressure Equipment Directive (2014/68/EU) chevron-down
002TTV (DE, EN, CN)
002TTV (DE, EN, CZ)
002TTV (DE, EN, ES)
002TTV (DE, EN, FR)
002TTV (DE, EN, IT)
002TTV (DE, EN, NL)
002TTV (DE, EN, PL)
002TTV (DE, EN, RU)
More Information
Type (Series) 01473
Solution H2, LNG, Air Gases
Solution Area Manufacturing, Transport, Storage, Refueling, Processes
SKU CR_01473

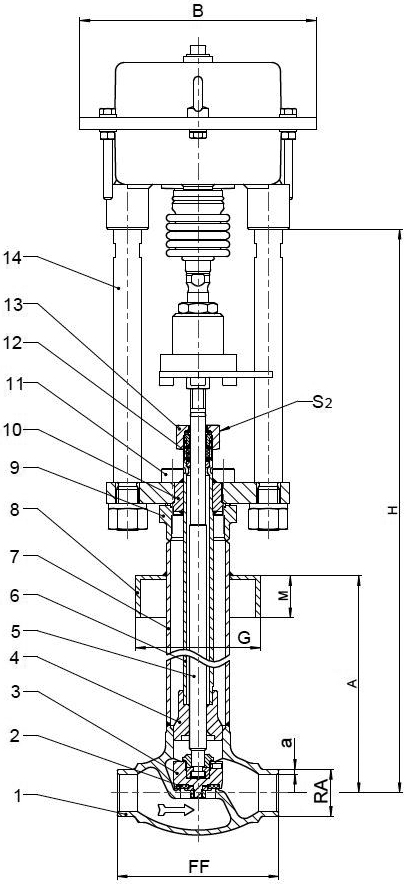

Materials

Materials

DIN EN

ASTM

1

Body

1.4409

A 351 CF3M

2

Valve seal

PCTFE

3

Disc

1.4404

A 276 Grade 316L

4

Guide bush

CW453K

B 103 UNS C52100

5

Stem

1.4404

A 276 Grade 316L

6

Elongation tube

1.4571

A 213TP 316Ti

7

Elongation tube

1.4571

A 213TP 316Ti

8

Cold box feature

1.4571

A 213TP 316Ti

9

Headpiece flange

1.4404

A 276 Grade 316L

10

Headpiece

1.4404

A 276 Grade 316L

11

Bolts

1.4571/A4

similar A 193 B8T

12

Gland packing

Graphite / PTFE / MICA

13

Gland nut

1.4404

A 276 Grade 316L

14

Pillars

1.4404

A 276 Grade 316L
Versions

Type 01473 - Standard design

Technical data

Nominal size

DN

65

80

100

Dimension code

.X.

6573

8088

0114

Face-to-face dimension

FF

205

245

280

Height

H

1105

1110

1290

Actuator-Ø

B

dependent on actuator

Outside pipe-Ø ASTM A312

RA

73.00

89.00

114.30

Wall thickness pipe ASTM A312

a

dimensions acc. to S10 or S40

Length

A

610

640

750

Length

G

acc. to customer specification

Length

M

acc. to customer specification

Wrench size across flats

S2

41

41

41

Stroke

mm

23

23

30

Weight without actuator

ca. kg

28.3

34.3

49.2

*Kvs-Value

m³/h

71.1

104.0

168.0

*Cv-Value

gal/min

82.9

121.3

196.0
?
