Type 01641 - Globe Valve

Datasheet ID: CR_01641_2

Field of application

chevron-down

Applications:

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)

Description

chevron-down

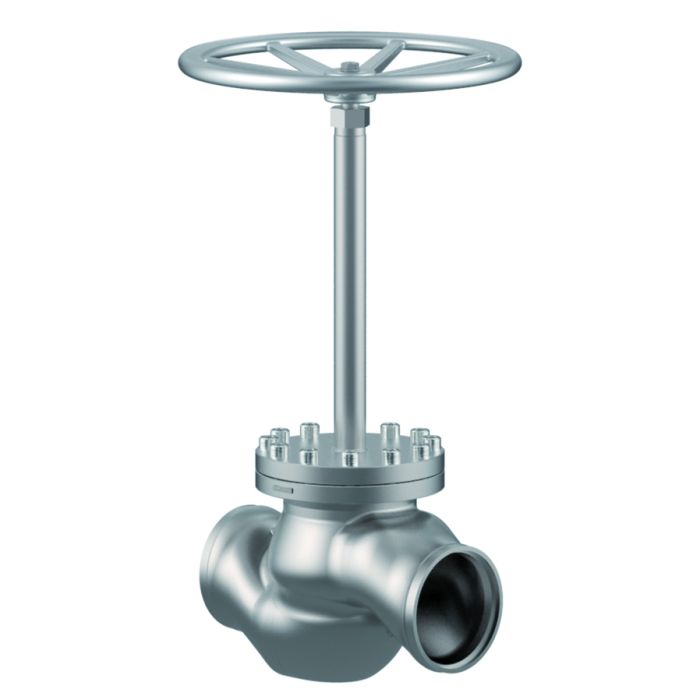

Cryogenic Globe Valves, DN200

“¦Fire safe¦” type test approval acc. to EN ISO 10497

Stainless steel body and topwork

"¦live loaded¦" gland packing

Part No. 01641.0219.001* (H=560), PN20/PN25

Part No. 01641.0219.006* (H=1000), PN20/PN25

*Butt weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312

Part No. 01641.0219.00*4, PN25

Socket weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312

In flow direction, the valve with the nominal size DN200 is conform to tightness class

L1 up to 9 bar maximum differential pressure acc. to DIN 12567 for LNG use.

This standard can also be used for the tightness class of other cryogenic gases.

Available options - on request only

Certificates

chevron-down
type-examination for LNG (DIN EN 12567) chevron-down
LNG-Certificate_01XXX_02XXX_03XXX_05XXX_06XXX_08XXX_09XXX_11XX
LNG-Certificate_DN200-01XXX_03XXX
type-examination fire-safe (DIN EN ISO 10497) chevron-down
FS-Certificate_01XXX_03XXX
Canadian Registration Number (CRN) chevron-down
0C22964.5 - Ontario
0C22964.5N - Nunavut
0C22964.5T - Northwest Territories
0C22964.5Y - Yukon
0C22964.50 - Newfoundland and Labrador
0C22964.51 - British Columbia
0C22964.52 - Alberta
0C22964.53 - Saskatchewan
0C22964.54 - Manitoba
0C22964.56 - Quebec
0C22964.57 - New Brunswick
0C22964.58 - Nova Scotia
0C22964.59 - Prince Edward Island
ClassNK (Class Rules) chevron-down
TA22155M
License of Special Equipment (China) (TS) chevron-down
TSX71000120220016
TSX71000520230057
TS2700G39-2029
DNV (Class Rules) chevron-down
TAP00000MM Rev. 3
Pressure Equipment Directive (2014/68/EU) chevron-down
0045-202-1334-Z-00176-23-D-001(01)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00469/23/D/001(00)
0045/202/1201/Z/00469/23/D/001(00)
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
0879-PESR-B(D)-23290-3-DE
0879-PESR-DD1-23290-4-DE
BV (Class Rules) chevron-down
33354/C0 BV
SMS.W.I./11744/C.0
RINA (Class Rules) chevron-down
MAC322723XG
CCS (Class Rules) chevron-down
HB24PTB00028
HB25PTB00055
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
0343/TPED/MUM/PRJ11100541146/3 Iss. 01
0343/TPED/MUM/PRJ11100427971/4 Iss. 02
Transportable Pressure Equipment Regulation 2009 (TPER 2009) chevron-down
0038/UK/TPER/MUM/PRJ11100541146/2
0038/UK/TPER/MUM/PRJ11100427971/2 Iss. 04
ABS (Class Rules) chevron-down
25-0381115-PDA
25-0381115-PDA
092776-7471959-006
Ukraine (Ukraine) chevron-down
UA.276.127.03-26
UA.D.127.04-26

Data sheets

chevron-down
CR_01641_2_en.pdf

Operating Instructions

chevron-down
HEROSE-Manual-CR_01641_2-1

Declarations of Conformity

chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
TTV (DE, EN, ES)
TTV (DE, EN, CN)
TTV (DE, EN, CZ)
TTV (DE, EN, FR)
TTV (DE, EN, IT)
TTV (DE, EN, NL)
TTV (DE, EN, PL)
TTV (DE, EN, RU)
Pressure Equipment Directive (2014/68/EU) chevron-down
001TTV (DE, EN, CN)
001TTV (DE, EN, CZ)
001TTV (DE, EN, ES)
001TTV (DE, EN, FR)
001TTV (DE, EN, IT)
001TTV (DE, EN, NL)
001TTV (DE, EN, PL)
001TTV (DE, EN, RU)
002TTV (DE, EN, CN)
002TTV (DE, EN, CZ)
002TTV (DE, EN, ES)
002TTV (DE, EN, FR)
002TTV (DE, EN, IT)
002TTV (DE, EN, NL)
002TTV (DE, EN, PL)
002TTV (DE, EN, RU)
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
002TTV (EN)
003TTV (EN)
003TTV (EN)
More Information
Type (Series) 01641
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
SKU CR_01641_2

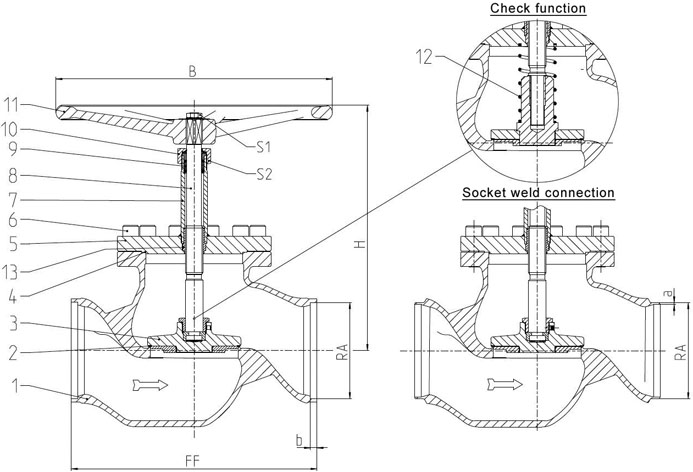

Materials

Materials

DIN EN

ASTM

1

Body

1.4308

A 351 CF8

2

Valve seal

PTFE / Carbon filled (25%)

3

Disc

1.4301

A 276 Grade 304

4

Bonnet gasket

Graphite

5

Headpiece

1.4301

A 276 Grade 304

6

Bolts

1.4301/A2

A 194 B8

7

Elongation tube

1.4541

A 213 TP 321

8

Stem

1.4301

A 276 Grade 304

9

Gland packing

Graphite / PTFE / MICA

10

Gland nut

1.4404

A 276 Grade 316L

11

Handwheel

1.4571

A 313 Grade 316Ti

13

Bush

CW452K

B 159 UNS C51900
Versions

Type 01641 - Standard design

Technical data

Nominal size

DN

200

Dimension code

.X.

0219

Face-to-face dimension

FF

560

Height

H

560

Outside pipe-Ø ISO 1127

RA

219.1

Wall thickness pipe ISO 1127

a

6.3

Outside pipe-Ø ASTM A312

RA

219.1

Wall thickness pipe ASTM A312

a

dimensions acc. to S10 or S40

Socket depth

b

15

Handwheel-Ø

B

630

Wrench size across flats

S1

30

Wrench size across flats

S2

65

Weight

ca. kg

135

Kvs-Value

m³/h

680

Cv-Value

gal/min

793
