HEROSE Type 01653 - Actuated Trailervalve

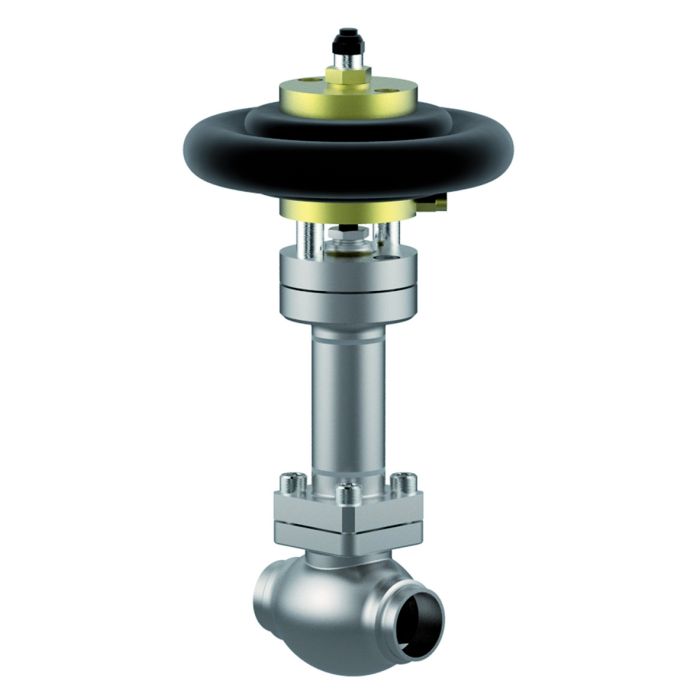

The product shown in the picture may differ from the product sold.

Type 01653 - Actuated Trailervalve

Datasheet ID: CR_01653

Field of application

Applications:

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)

Ambient temperature actuator: -50°C / -58°F (223K) up to +70°C / +158°F (343K)

Description

Cryogenic-Globe Valves with Pneumatic Actuator, PN50

“¦Fire safe¦” type test approval acc. to EN ISO 10497

air pressure for operation 6.0 bar g (maximum 10.0 bar g), push-in connection 8mm

Stainless steel body and topwork,

Actuator - air opens, spring closes

“¦live loaded¦” gland packing

“¦cleaned and degreased for oxygen service¦" - the actuator is not cleaned and degreased for oxygen

maximum working pressure of the valve depending on nominal size

Part No. 01653.X.T0**

* Butt weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312

Part No. 01653.X.T0*4

Socket weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312

Available options - on request only:

· Welded stainless steel stubs acc. to ISO 1127 or ASTM A312 - length FF + 200mm

· Weather protection hood

Certificates

Transportable Pressure Equipment Directive (2010/35/EU)

07/201/1321/Z/0277/17/oD/0002

0045/201/1201/Z/00649/23/oD/001(00)

type-examination for LNG (DIN EN 12567)

LNG-Certificate_01XXX_02XXX_03XXX_05XXX_06XXX_08XXX_09XXX_11XX

type-examination fire-safe (DIN EN ISO 10497)

FS-Certificate_01XXX_03XXX

ClassNK (Class Rules)

TA22155M

License of Special Equipment (China) (TS)

TSX71000120220019

TSX71000520230057

TSF700D36-2029

BV (Class Rules)

33354/C0 BV

SMS.W.I./11744/C.0

Pressure Equipment Safety Regulation 2016 (PESR 2016)

0879-PESR-DD1-23290-4-DE

Pressure Equipment Directive (2014/68/EU)

0045/202/1201/Z/00366/23/D/001(00)

ABS (Class Rules)

25-0381115-PDA

092776-7471959-006

Ukraine (Ukraine)

UA.276.127.03-26

UA.D.127.04-26

Data sheets

CR_01653_en.pdf

Operating Instructions

HEROSE-Manual-CR_01653-1

Declarations of Conformity

Transportable Pressure Equipment Directive (2010/35/EU)

TTV (DE, EN, ES)

TTV (DE, EN, CN)

TTV (DE, EN, CZ)

TTV (DE, EN, FR)

TTV (DE, EN, IT)

TTV (DE, EN, NL)

TTV (DE, EN, PL)

TTV (DE, EN, RU)

Pressure Equipment Safety Regulation 2016 (PESR 2016)

002TTV (EN)

Pressure Equipment Directive (2014/68/EU)

002TTV (DE, EN, CN)

002TTV (DE, EN, CZ)

002TTV (DE, EN, ES)

002TTV (DE, EN, FR)

002TTV (DE, EN, IT)

002TTV (DE, EN, NL)

002TTV (DE, EN, PL)

002TTV (DE, EN, RU)

More Information
Materials
Versions
Product Variants

More Information

Type (Series)	01653
Solution	Air Gases
Solution Area	Transport, Storage, Processes
SKU	CR_01653

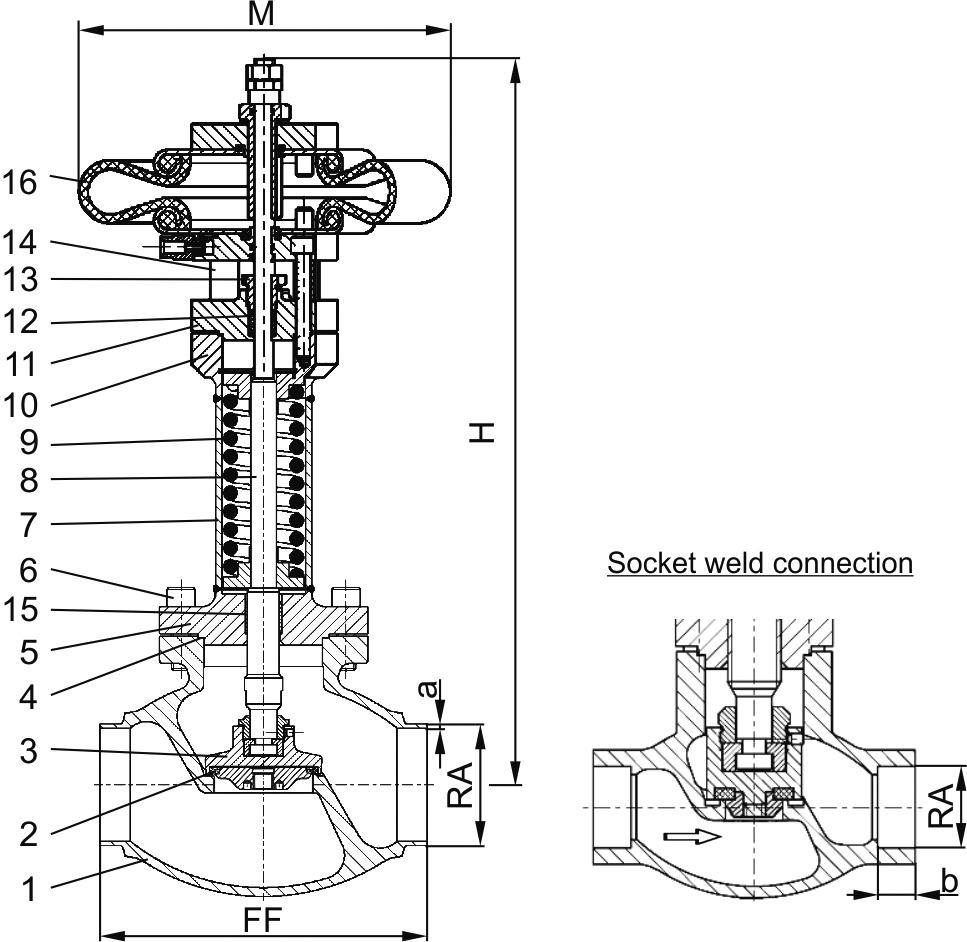

Materials

Materials		DIN EN	ASTM
1	Body	1.4308	A 351 CF8
2	Valve seal	PTFE / Carbon filled (25%)
3	Disc	1.4301	A 276 Grade 304
4	Bonnet gasket	Graphite
5	Headpiece	1.4301	A 276 Grade 304
6	Bolts	1.4301/A2	A 194 B8
7	Elongation tube	1.4306	A 213 TP 304L
8	Stem	1.4301	A 276 Grade 304
9	Spring	1.4571	A 313 Grade 316Ti
10	Flansch	1.4301	A 276 Grade 304
11	Headpiece	1.4301	A 276 Grade 304
12	Gland packing	Graphite / PTFE / MICA
13	Gland nut	1.4571	A 313 Grade 316Ti
14	Pillars	1.4301	A 276 Grade 304
15	Bush	CW452K	B 159 UNS C51900
16	Actuator	Rubber

Versions

Type 01653 - Standard design	Technical data
Nominal size	DN	20	20	25	40	40	50	65	80
Dimension code	.X.	2021	2026	2533	4042	4048	5060	657x	8088
Face-to-face dimension	FF	100	100	115	130	130	155	205	245
Height	H	443	443	444	441	441	420	448	467
Outside pipe-Ø ISO 1127	RA	21.3	26.9	33.7	42.4	48.3	60.3	76.1	88.9
Wall thickness pipe ISO 1127	a	2.0	2.0	2.0	2.0	2.0	2.0	2.9	3.2
Outside pipe-Ø ASTM A312	RA	21.34	26.67	33.40	42.16	48.26	60.33	73.03	88.90
Wall thickness pipe ASTM A312	a	dimensions acc. to S10 or S40
Socket depth	b	10	10	13	13	13	16	16	16
Actuator-Ø	M	229	229	229	229	229	229	229	229
Weight	ca. kg	7.2	7.2	9.1	10.5	10.5	14.5	17.4	22.5
*Kvs-Value	m³/h	4.3	4.3	11.5	22.6	22.6	37.1	71.1	104.0
*Cv-Value	gal/min	5.0	5.0	13.4	23.9	26.3	43.2	82.9	121.3
Stroke	mm	10	10	14	14	14	14	22	25
Δ P max	bar	50	50	50	16	16	10	3	4
Δ P max with special spring	bar	-	-	-	31	31	18	10	-
