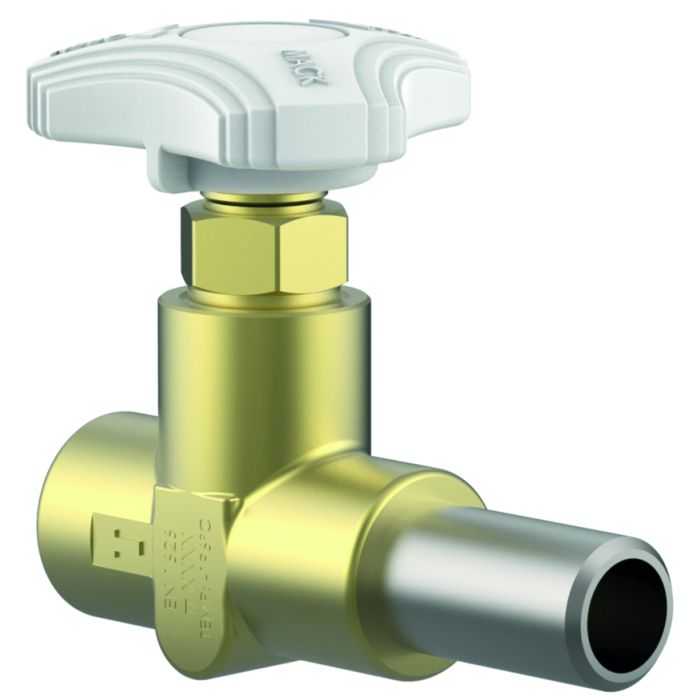

Type 01950 - Globe Valve

Datasheet ID: CR_01950_1

Field of application

chevron-down

Applications:

Approved for air gases, vapours and cryogenic liquefied gases.

Working temperature: -196°C / -321°F (77K) up to +75°C / +167°F (348K)

Description

chevron-down

Liquid Cylinder Valves (LCV), PN42

Brass body and topwork,

42.0 bar (4200 KPa)

"¦cleaned and degreased for oxygen service¦"

Handwheel colors: green, blue or grey

Part No. 01950.T001.XXXXXX (H=73mm)

Part No. 01950.T003.XXXXXX (H=107mm)

Part No. 01950.T005.XXXXXX (H=165mm)

Inlet: stub end, female thread type G (BSPP) or NPT

Outlet: stub end, female thread type G (BSPP) or NPT

Available options - on request only:

· Customised stub length

· Printed hub cap with customised design

· Additional handhweel color

Certificates

chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
0343/TPED/MUM/2110011/1
0343/TPED/MUM/2110011/3
0343/TPED/MUM/2110011/4
0343/TPED/MUM/2110011/5
0343/TPED/MUM/2110011/2

Data sheets

chevron-down
CR_01950_1_en.pdf
More Information
Type (Series) 01950
Solution Air Gases, Industry
Solution Area Transport, Storage, Processes, Compressed Air
SKU CR_01950_1

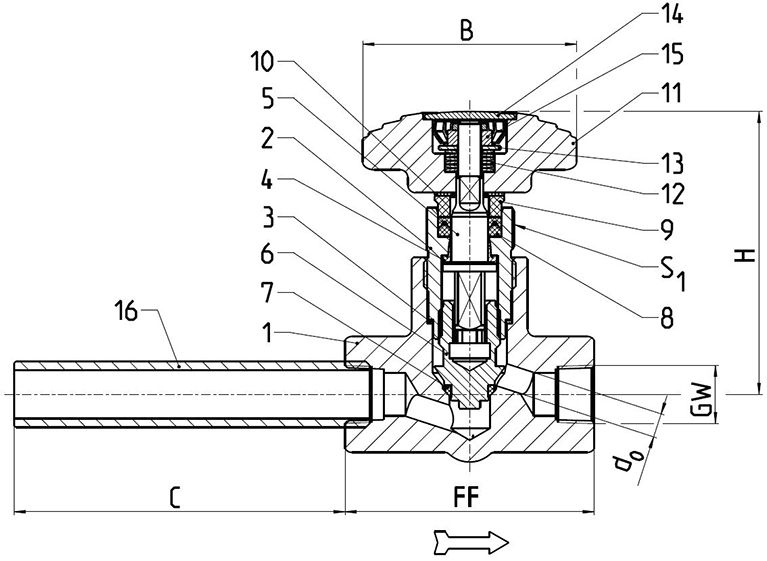

Materials

Materials

DIN EN

ASTM

1

Body

CW617N

B 283 UNS C37700

2

Bonnet

CW614N

B 455 UNS C38500

3

Gasket

Copper

4

Stem seal gasket

PTFE

5

Upper stem

CW614N

B 455 UNS C38500

6

Lower spindle

CW614N

B 455 UNS C38500

7

Disc

PCTFE

8

V packing

PTFE

9

Gland packing

CW614N

B 455 UNS C38500

10

Top washer

PTFE

11

Handwheel

C.Alum. + P.C.

12

Disc washer

1.4301

A 276 Grade 304

13

Flat washer

1.4301

A 276 Grade 304

14

Hub cap

Mild steel zinc plated

powder coating

15

Nyloc nut

1.4301

A 276 Grade 304

16

Stubs

1.4306

A 312 TP 304/304L
Versions

Type 01950 - Standard design

Technical data

Nominal size

DN

6

8

10

15

Thread size

GW

1/8

1/4

3/8

1/2

Face-to-face dimension

FF

64.5

64.5

64.5

64.5

Height

H

73 / 107 / 165

Orifice

d0

6.25

6.25

10.25

10.25

Stub length

C

53.85

53.85

53.85

53.85

Outside pipe-Ø ISO 1127

RA

10.2

13.5

17.2

21.3

Wall thickness pipe ISO 1127

a

1.6

2.0

2.0

2.0

Outside pipe-Ø ASTM A312

RA

10.3

13.7

17.1

21.3

Wall thickness pipe ASTM A312

a

dimensions acc. to S40

Handwheel-Ø

B

67.0

67.0

67.0

67.0

Wrench size across flats

S1

22

22

22

22

Weight

ca. kg

0.65 / 0.75 / 0.83

Kvs-Value

m³/h

0.94

0.94

1.78

1.74

Cv-Value

gal/min

1.09

1.09

2.08

2.01
