Type 01950 - Topwork

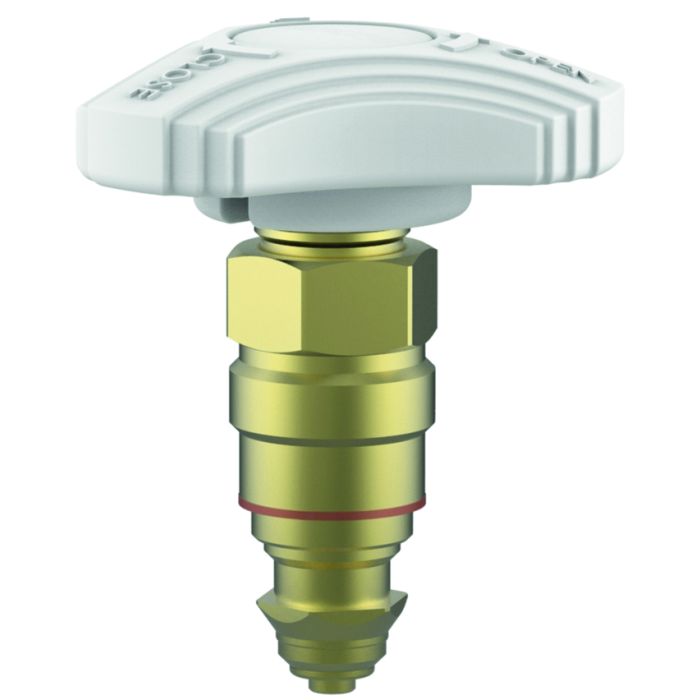

The product shown in the picture may differ from the product sold.
Description
for Liquid Cylinder Valves
"¦cleaned and degreased for oxygen service¦"
Part No. 01950.XXXX.EXXXXX
Handwheel colors: green, blue or grey
Available options - on request only:
· Printed hub cap with customised design
· Additional handhweel color
Certificates
Transportable Pressure Equipment Directive (2010/35/EU)
Data sheets
Live Stock: Out-Of Stock pcs (ON STOCK)
| Type (Series) | 01950 |
|---|---|
| Solution | Air Gases, Industry |
| Solution Area | Transport, Storage, Processes, Compressed Air |
| SKU | CR_01950_2 |

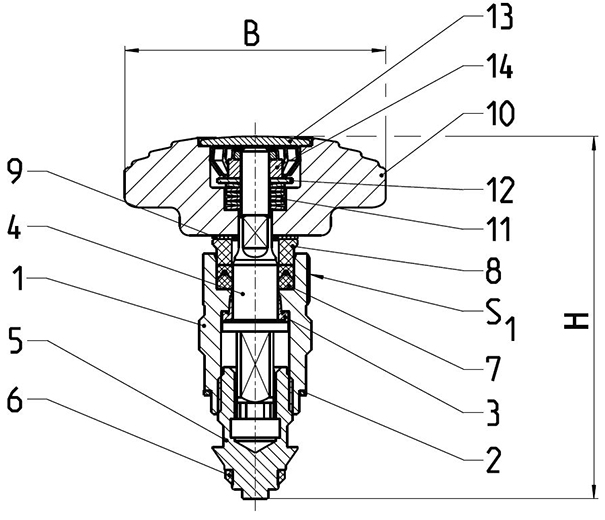

Materials |
DIN EN |
ASTM |
|
|---|---|---|---|
1 |
Bonnet |
CW614N |
B 283 UNS C38500 |
2 |
Gasket |
Copper |
|
3 |
Stem seal gasket |
PTFE |
|
4 |
Upper stem |
CW614N |
B 283 UNS C38500 |
5 |
Lower spindle |
CW614N |
B 283 UNS C38500 |
6 |
Disc |
PCTFE |
|
7 |
V packing |
PTFE |
|
8 |
Gland packing |
PTFE |
|
9 |
Top washer |
PTFE |
|
10 |
Handwheel |
C.Alum. + P.C. |
|
11 |
Disc washer |
1.4301 |
A 276 Grade 304 |
12 |
Flat washer |
1.4301 |
A 276 Grade 304 |
13 |
Hub cap |
Mild steel zinc plated + powder coating |
|
14 |
Nyloc nut |
1.4301 |
A 276 Grade 304 |
Type 01950 |
Technical data |
||||
|---|---|---|---|---|---|
Nominal size |
DN |
6 |
8 |
10 |
15 |
Handwheel-Ø |
B |
67 |
67 |
67 |
67 |
Wrench size across flats |
S1 |
22 |
22 |
22 |
22 |
Weight |
ca. kg |
0.3 |
0.3 |
0.3 |
0.3 |
