Type 01C07 - Globe Valve

Datasheet ID: CR_01C07_1

Field of application

chevron-down

Applications:

Approved for hydrogen (UN 1049), helium (UN 1046), nitrogen (UN 1066)

Working temperature: -40°C / -40°F (233K) bis +65° / 149°F (338K)

Description

chevron-down

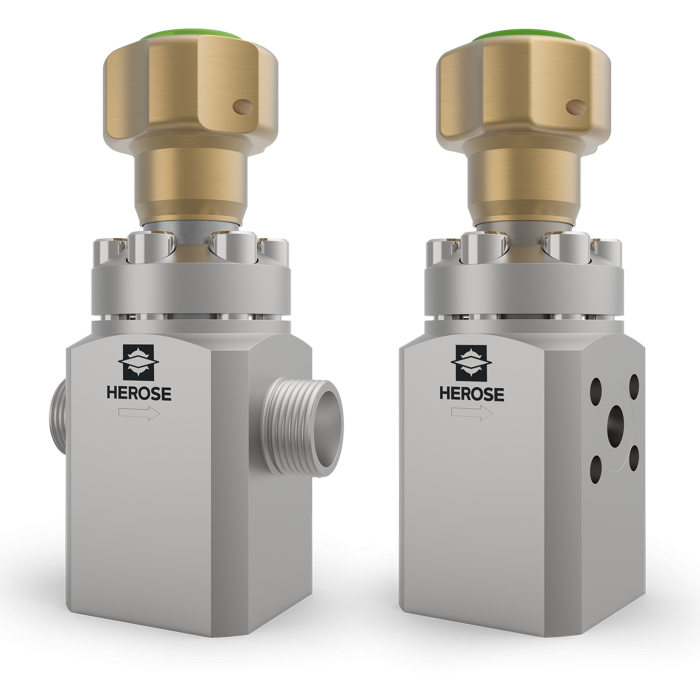

High-Pressure Globe Valve, stainless steel

Unidirectional globe valve, allowing flow in the reverse direction for applications such as MEGC filling

Tested acc. to EN ISO 10297

Approved acc. to TPED and TPER

Working pressure (pw) 500 bar at 15°C (288K)

Materials acc. to EN ISO 11114

Additional material and functional testing with hydrogen

Cleaned acc. to ISO 23208

Cone connection acc. to ISO 8434-1

Flange connection manufacturer specific

Other connection types – on request only

Available accessories:

· Connection kits (welding cone and flange)

Certificates

chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
0343/TPED/MUM/PRJ11100538391/1 Iss. 0
Transportable Pressure Equipment Regulation 2009 (TPER 2009) chevron-down
0038/UK/TPER/MUM/PRJ11100538391/1

Data sheets

chevron-down
CR_01C07_1_en.pdf

Operating Instructions

chevron-down
HEROSE-Manual-CR_01C07_1-1

Declarations of Conformity

chevron-down
Transportable Pressure Equipment Regulation 2009 (TPER 2009) chevron-down
TTV (DE, EN)
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
TTV2 (DE, EN, CN)
TTV2 (DE, EN, CZ)
TTV2 (DE, EN, ES)
TTV2 (DE, EN, FR)
TTV2 (DE, EN, IT)
TTV2 (DE, EN, NL)
TTV2 (DE, EN, PL)
TTV2 (DE, EN, RU)
More Information
Type (Series) 01C07
Solution H2, Air Gases
Solution Area Transport, Storage
SKU CR_01C07_1
Materials

Materials

DIN EN

ASTM

1

Body

1.4404

A 479 316L

2

Top work

1.4571

A 479 316Ti

3

Bonnet

1.4404

A 479 316L

4

Stem

1.4404

A 479 316L

5

Disc

1.4404

A 479 316L

6

Seal

Vespel, LTPU, PE

7

Handwheel

CC493K

B 505 C93200

8

Bolt

1.4301 / A2-70

A 320 B8

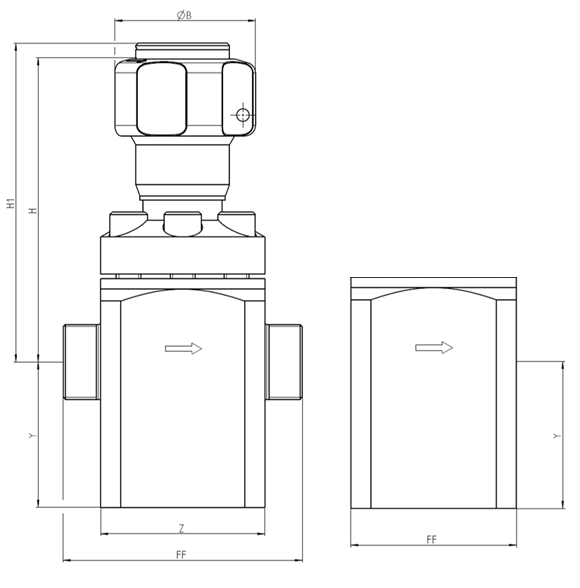

Versions

Type 01C07

Technical Data

Part No.

01C07.A008.000001

01C07.A008.000002

Connection

ISO 8434-1 - S25

Flansch

Nominal size

DN

15

15

Face-to-face dim.

FF [mm]

115

79

Length

Z [mm]

79

79

Hight (open)

H1 [mm]

154

154

Hight (closed)

H [mm]

147

147

Handwheel Ø

B [mm]

70

70

Kvs - value

[m³/h]

3.0 / 3.2

3.0 / 3.2

Cv - value

[gal/min]

3.5 / 3.7

3.5 / 3.7

Weight

[kg]

7.37

7.02
?
