Type 03341 - Globe Valve, ASME B16.5 Flanges

Datasheet ID: CR_03341_4

Field of application

chevron-down

Applications:

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)

Description

chevron-down

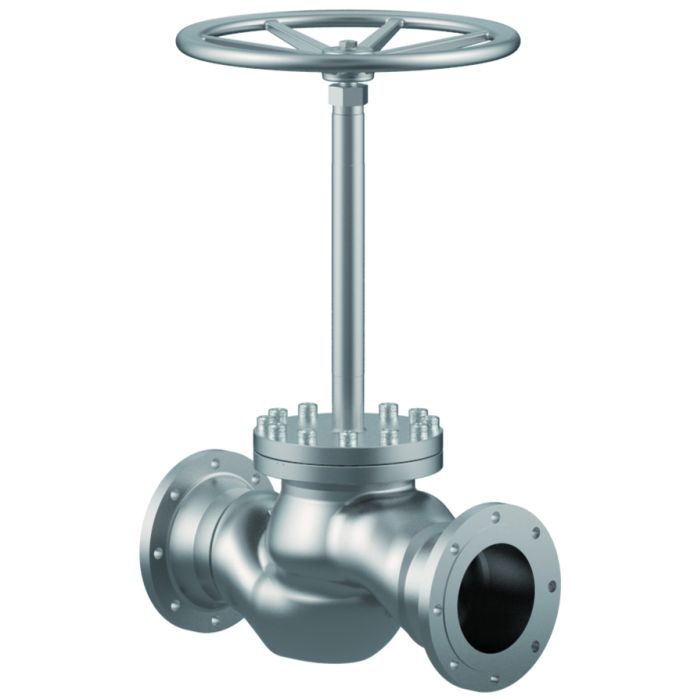

Cryogenic Globe Valves, class 150

Stainless steel body and topwork,

"¦live loaded¦" gland packing

Part No. 03341.8000.0011 (H=560)

Flanged connection acc. to ASME B16.5 class 150

In flow direction, the valve with the nominal size DN200 is conform to tightness class

L1 up to 12 bar maximum differential pressure acc. to DIN 12567 for LNG use.

This standard can also be used for the tightness class of other cryogenic gases.

Available options - on request only

Certificates

chevron-down
type-examination for LNG (DIN EN 12567) chevron-down
LNG-Certificate_01XXX_02XXX_03XXX_05XXX_06XXX_08XXX_09XXX_11XX
LNG-Certificate_DN200-01XXX_03XXX
Canadian Registration Number (CRN) chevron-down
0C22964.5 - Ontario
0C22964.5N - Nunavut
0C22964.5T - Northwest Territories
0C22964.5Y - Yukon
0C22964.50 - Newfoundland and Labrador
0C22964.51 - British Columbia
0C22964.52 - Alberta
0C22964.53 - Saskatchewan
0C22964.54 - Manitoba
0C22964.56 - Quebec
0C22964.57 - New Brunswick
0C22964.58 - Nova Scotia
0C22964.59 - Prince Edward Island
ClassNK (Class Rules) chevron-down
TA22155M
License of Special Equipment (China) (TS) chevron-down
TSX71000120220016
TSX71000520230057
TS2700G39-2029
DNV (Class Rules) chevron-down
TAP00000MM Rev. 3
Pressure Equipment Directive (2014/68/EU) chevron-down
0045-202-1334-Z-00176-23-D-001(01)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00469/23/D/001(00)
0045/202/1201/Z/00469/23/D/001(00)
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
0879-PESR-B(D)-23290-3-DE
0879-PESR-DD1-23290-4-DE
BV (Class Rules) chevron-down
33354/C0 BV
SMS.W.I./11744/C.0
RINA (Class Rules) chevron-down
MAC322723XG
Lloyd's Register (Class Rules) chevron-down
LR2508712TA-02
LR2695076QAES
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
0343/TPED/MUM/PRJ11100541146/3 Iss. 01
0343/TPED/MUM/PRJ11100427971/4 Iss. 02
Transportable Pressure Equipment Regulation 2009 (TPER 2009) chevron-down
0038/UK/TPER/MUM/PRJ11100541146/2
0038/UK/TPER/MUM/PRJ11100427971/2 Iss. 04
ABS (Class Rules) chevron-down
25-0381115-PDA
25-0381115-PDA
092776-7471959-006
Ukraine (Ukraine) chevron-down
UA.276.127.03-26
UA.D.127.04-26

Data sheets

chevron-down
CR_03341_4_en.pdf

Declarations of Conformity

chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
TTV (DE, EN, ES)
TTV (DE, EN, CN)
TTV (DE, EN, CZ)
TTV (DE, EN, FR)
TTV (DE, EN, IT)
TTV (DE, EN, NL)
TTV (DE, EN, PL)
TTV (DE, EN, RU)
Pressure Equipment Directive (2014/68/EU) chevron-down
001TTV (DE, EN, CN)
001TTV (DE, EN, CZ)
001TTV (DE, EN, ES)
001TTV (DE, EN, FR)
001TTV (DE, EN, IT)
001TTV (DE, EN, NL)
001TTV (DE, EN, PL)
001TTV (DE, EN, RU)
002TTV (DE, EN, CN)
002TTV (DE, EN, CZ)
002TTV (DE, EN, ES)
002TTV (DE, EN, FR)
002TTV (DE, EN, IT)
002TTV (DE, EN, NL)
002TTV (DE, EN, PL)
002TTV (DE, EN, RU)
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
002TTV (EN)
003TTV (EN)
003TTV (EN)
More Information
Type (Series) 03341
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
SKU CR_03341_4

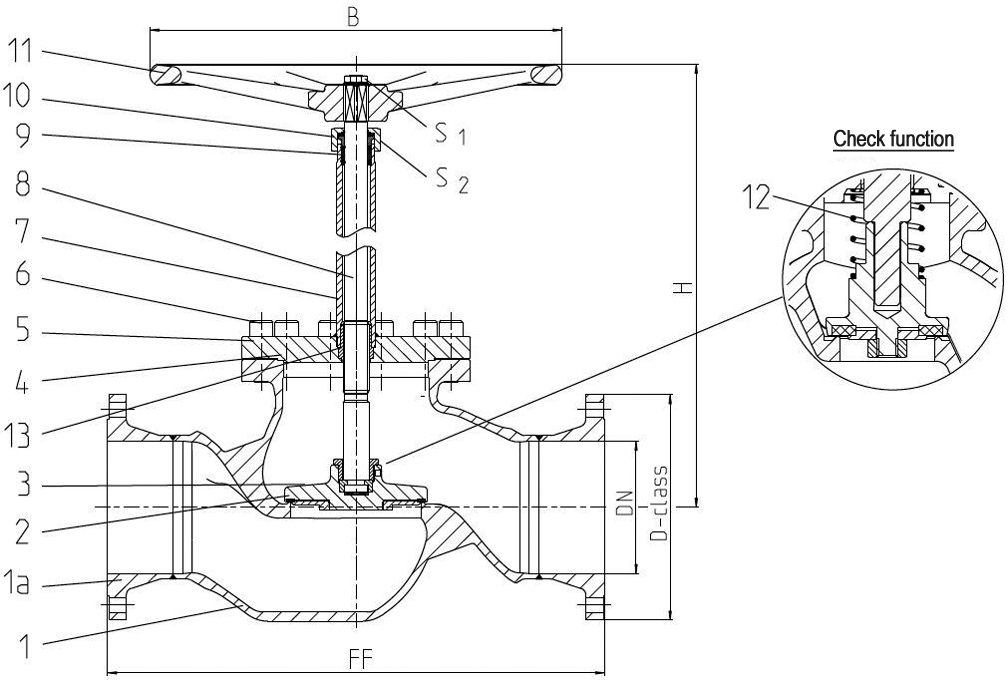

Materials

Materials

DIN EN

ASTM

1

Body

1.4308

A 351 CF8

1a

Flange

1.4301

A 276 Grade 304

2

Valve seal

PTFE

3

Disc

1.4301

A 276 Grade 304

4

Bonnet gasket

PTFE

5

Headpiece

1.4301

A 276 Grade 304

6

Bolts

1.4301/A2

A 194 B8

7

Elongation tube

1.4541

A 213 TP 321

8

Stem

1.4301

A 276 Grade 304

9

Gland packing

Graphite / PTFE / MICA

10

Gland nut

1.4305

A 276 Grade 303

11

Handwheel

1.4571

A 313 Grade 316Ti

12

Spring

1.4310

A 313 Grade 301

13

Bush

CW452K

B 159 UNS C51900
Versions

Type 03341 - Standard design

Technical data

Nominal size

DN

200

Dimension code

.X.

8000

Flange-Ø

D-class

345

Face-to-face dimension

FF

760

Height

H

560

Handwheel-Ø

B

630

Wrench size across flats

S1

30

Wrench size across flats

S2

65

Weight

ca. kg

135

Kvs-Value

m³/h

680

Cv-Value

gal/min

793
?
