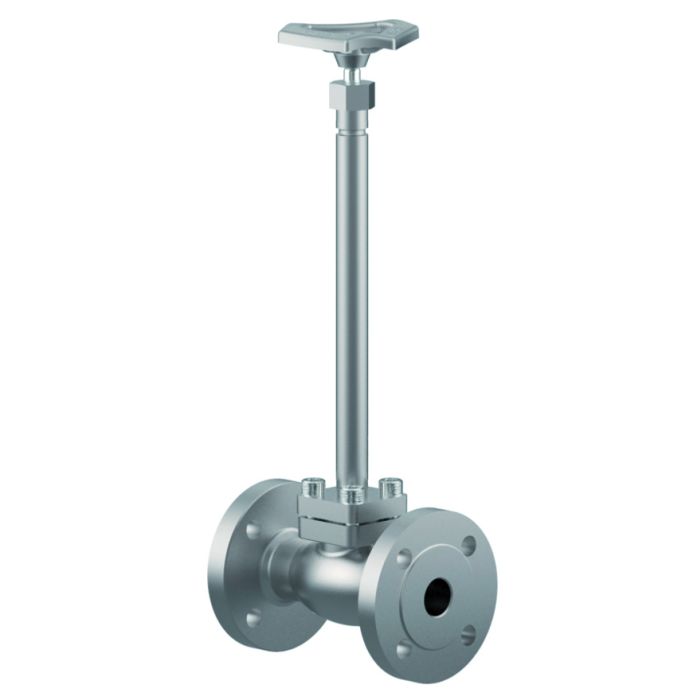

Type 03641 - Globe Valve

Datasheet ID: CR_03641_1

Field of application

chevron-down

Applications:

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)

Description

chevron-down

Cryogenic-Globe and Globe/Check Valves, PN40

“Fire safe” type test approval acc. to EN ISO 10497

Stainless steel body and topwork,

“live loaded” gland packing

“cleaned and degreased for oxygen service"

Part No. 03641.X.0012 (H = 270mm)

Part No. 03641.X.0022 (H = 370mm)

Part No. 03641.X.5012 (H = 270mm) Globe/Check Valve

Part No. 03641.X.5022 (H = 370mm) Globe/Check Valve

Flanged connection acc. to DIN EN 1092-1 PN40

Available options - on request only:

· Extension H up to 900mm

· Valve with control disc (tapered design)

Certificates

chevron-down
type-examination for LNG (DIN EN 12567) chevron-down
LNG-Certificate_01XXX_02XXX_03XXX_05XXX_06XXX_08XXX_09XXX_11XX
LNG-Certificate_DN200-01XXX_03XXX
type-examination fire-safe (DIN EN ISO 10497) chevron-down
FS-Certificate_01XXX_03XXX
ClassNK (Class Rules) chevron-down
TA22155M
DNV (Class Rules) chevron-down
TAP00000MM Rev. 3
Pressure Equipment Directive (2014/68/EU) chevron-down
0045-202-1334-Z-00176-23-D-001(01)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00469/23/D/001(00)
0045/202/1201/Z/00469/23/D/001(00)
0045/202/1201/Z/00199/26/D/001(00)
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
0879-PESR-B(D)-23290-3-DE
0879-PESR-DD1-23290-4-DE
License of Special Equipment (China) (TS) chevron-down
TSX71000520230057
BV (Class Rules) chevron-down
33354/C0 BV
SMS.W.I./11744/C.0
RINA (Class Rules) chevron-down
MAC322723XG
CCS (Class Rules) chevron-down
HB24PTB00028
HB25PTB00055
Lloyd's Register (Class Rules) chevron-down
LR2508712TA-02
LR2695076QAES
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
0343/TPED/MUM/PRJ11100541146/3 Iss. 01
0343/TPED/MUM/PRJ11100427971/4 Iss. 02
Transportable Pressure Equipment Regulation 2009 (TPER 2009) chevron-down
0038/UK/TPER/MUM/PRJ11100541146/2
0038/UK/TPER/MUM/PRJ11100427971/2 Iss. 04
ABS (Class Rules) chevron-down
25-0381115-PDA
25-0381115-PDA
092776-7471959-006
Ukraine (Ukraine) chevron-down
UA.276.127.03-26
UA.D.127.04-26

Data sheets

chevron-down
CR_03641_1_en.pdf

Declarations of Conformity

chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
TTV (DE, EN, ES)
TTV (DE, EN, CN)
TTV (DE, EN, CZ)
TTV (DE, EN, FR)
TTV (DE, EN, IT)
TTV (DE, EN, NL)
TTV (DE, EN, PL)
TTV (DE, EN, RU)
TTV2 (DE, EN, CN)
TTV2 (DE, EN, CZ)
TTV2 (DE, EN, ES)
TTV2 (DE, EN, FR)
TTV2 (DE, EN, IT)
TTV2 (DE, EN, NL)
TTV2 (DE, EN, PL)
TTV2 (DE, EN, RU)
Pressure Equipment Directive (2014/68/EU) chevron-down
001TTV (DE, EN, CN)
001TTV (DE, EN, CZ)
001TTV (DE, EN, ES)
001TTV (DE, EN, FR)
001TTV (DE, EN, IT)
001TTV (DE, EN, NL)
001TTV (DE, EN, PL)
001TTV (DE, EN, RU)
002TTV (DE, EN, CN)
002TTV (DE, EN, CZ)
002TTV (DE, EN, ES)
002TTV (DE, EN, FR)
002TTV (DE, EN, IT)
002TTV (DE, EN, NL)
002TTV (DE, EN, PL)
002TTV (DE, EN, RU)
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
002TTV (EN)
003TTV (EN)
003TTV (EN)
Transportable Pressure Equipment Regulation 2009 (TPER 2009) chevron-down
TTV (DE, EN)
More Information
Type (Series) 03641
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
SKU CR_03641_1

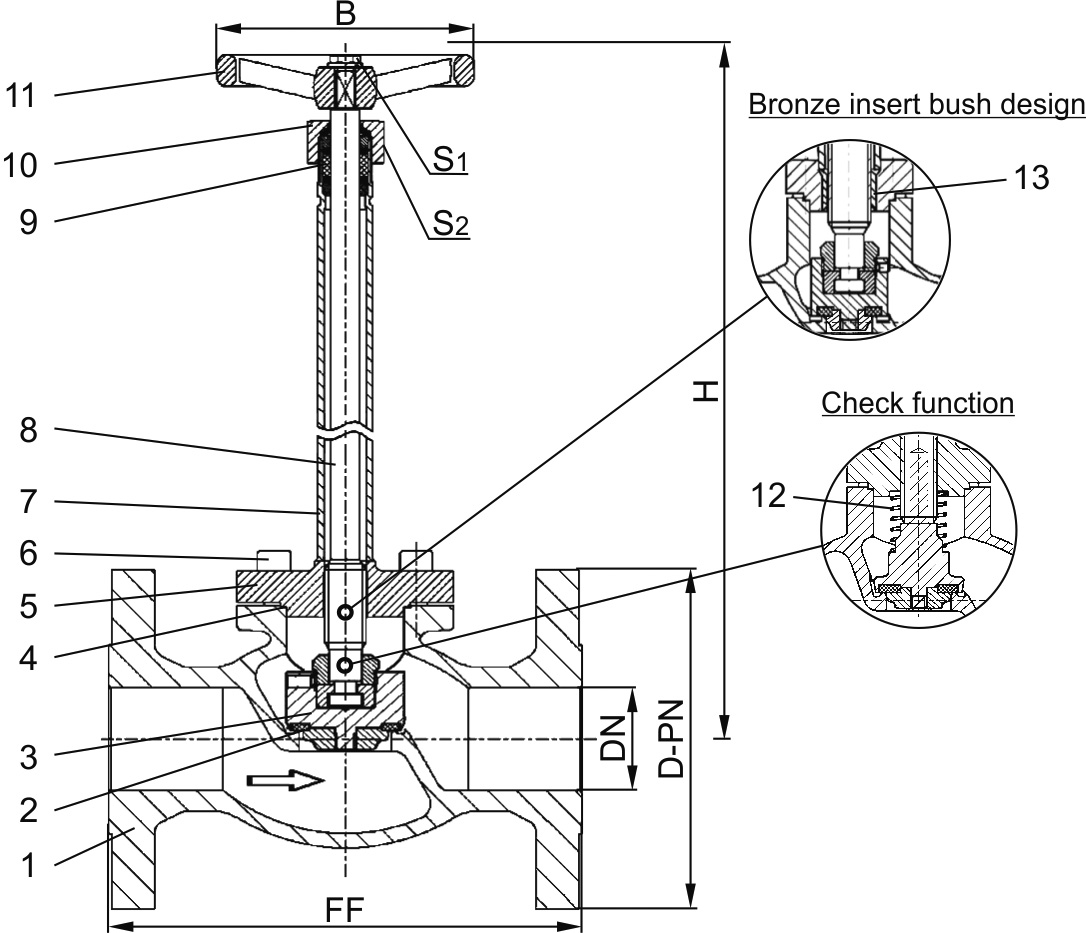

Materials

Materials

DIN EN

ASTM

1

Body

1.4308

A 351 CF8

2

Valve seal

PTFE / Carbon filled (25%)

3

Disc

1.4301

A 276 Grade 304

4

Bonnet gasket

Graphite

5

Headpiece

1.4301 /

1.4308

A 276 Grade 304 /

A 351 CF8

6

Bolts

1.4301/A2

A 194 B8

7

Elongation tube

1.4541

A 213 TP 321

8

Stem

1.4301

A 276 Grade 304

9

Gland packing

Graphite / PTFE / MICA

10

Gland nut

1.4305

A 276 Grade 303

11

Handwheel

1.4409

A 351 CF3M

12

Spring

1.4310

A 313 Grade 301

13

Bush

CW452K

B 159 UNS C51900
Versions

Type 03641 - Standard design

Technical data

Nominal size

DN

15

20

25

40

50

65

80

100

150

Dimension code - Flange EN 1092-1 PN40

.X.

0150

0200

0250

0400

0500

0650

0800

1000

1500

Flange-Ø

D-PN

95

105

115

150

165

185

200

235

300

Face-to-face dimension

FF

140

150

160

200

230

290

310

350

550

Height

H

270 mm or 370 mm

370

420

Handwheel-Ø

B

100

100

100

125

125

200

250

315

360

Wrench size across flats

S1

7

7

7

10

10

10

10

12

15

Wrench size across flats

S2

30

30

30

36

36

36

36

41

41

Weight

ca. kg

3.0

3.5

5.0

9.0

13.0

21.0

28.0

42.0

83.0

Kvs-Value

m³/h

4.3

6.7

11.5

22.6

37.1

71.1

104.0

170.0

350.0

Cv-Value

gal/min

5.0

7.8

13.4

26.3

43.2

82.9

121.3

198.3

408.4
?
