HEROSE Type 03843 - Actuated Globe Valve

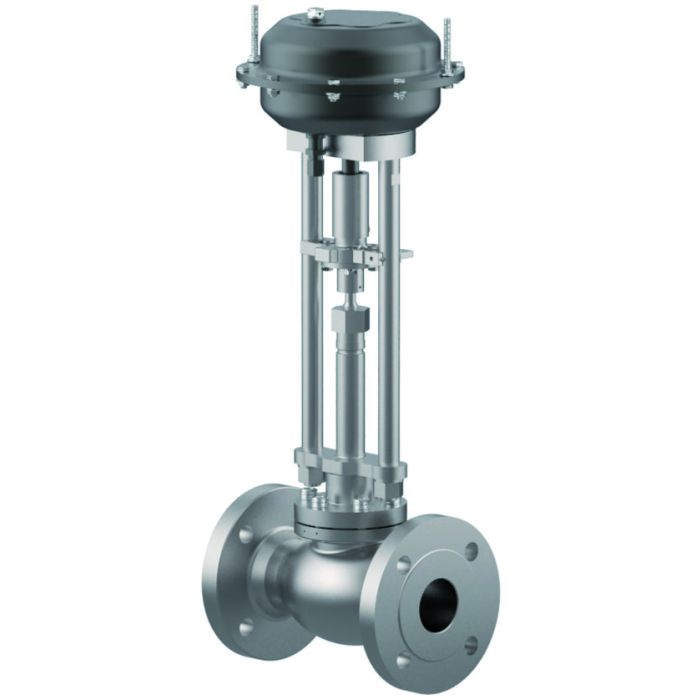

The product shown in the picture may differ from the product sold.

Type 03843 - Actuated Globe Valve

Datasheet ID: CR_03843_3

Field of application

Applications:

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -255°C / -427°F (18K) up to +120°C / +248°F (393K)

Description

Cryogenic-Globe Valves with Pneumatic Actuator, class 300

“ Fire safe ” type test approval acc. to EN ISO 10497

Stainless steel body and topwork

Actuator - air opens, spring closes or vice versa

"¦live loaded¦" gland packing

"¦cleaned and degreased for oxygen service¦" - the actuator is not cleaned and

degreased for oxygen

Part No. 03843.X.*013

Flanged connection acc. to ASME B16.5 class 300

Available accessories:

· Solenoid valve

· Limit switch

· Electropneumatic positioner etc.

Available options - on request only:

· Actuator - "¦cleaned and degreased for oxygen service¦"

· Electric actuator

· Valve with check disc

· Valve with control disc (tapered design)

Certificates

type-examination for LNG (DIN EN 12567)

LNG-Certificate_01XXX_02XXX_03XXX_05XXX_06XXX_08XXX_09XXX_11XX

LNG-Certificate_DN200-01XXX_03XXX

type-examination fire-safe (DIN EN ISO 10497)

FS-Certificate_01XXX_03XXX

ClassNK (Class Rules)

TA22155M

DNV (Class Rules)

TAP00000MM Rev. 3

Pressure Equipment Directive (2014/68/EU)

0045-202-1334-Z-00176-23-D-001(01)

0045/202/1201/Z/00366/23/D/001(00)

Pressure Equipment Safety Regulation 2016 (PESR 2016)

0879-PESR-B(D)-23290-3-DE

0879-PESR-DD1-23290-4-DE

BV (Class Rules)

33354/C0 BV

SMS.W.I./11744/C.0

RINA (Class Rules)

MAC322723XG

CCS (Class Rules)

HB24PTB00028

HB25PTB00055

Lloyd's Register (Class Rules)

LR2508712TA-02

LR2695076QAES

ABS (Class Rules)

25-0381115-PDA

092776-7471959-006

Ukraine (Ukraine)

UA.276.127.03-26

UA.D.127.04-26

Data sheets

CR_03843_3_en.pdf

Declarations of Conformity

Pressure Equipment Directive (2014/68/EU)

001TTV (DE, EN, CN)

001TTV (DE, EN, CZ)

001TTV (DE, EN, ES)

001TTV (DE, EN, FR)

001TTV (DE, EN, IT)

001TTV (DE, EN, NL)

001TTV (DE, EN, PL)

001TTV (DE, EN, RU)

002TTV (DE, EN, CN)

002TTV (DE, EN, CZ)

002TTV (DE, EN, ES)

002TTV (DE, EN, FR)

002TTV (DE, EN, IT)

002TTV (DE, EN, NL)

002TTV (DE, EN, PL)

002TTV (DE, EN, RU)

Pressure Equipment Safety Regulation 2016 (PESR 2016)

002TTV (EN)

003TTV (EN)

More Information
Materials
Versions

More Information

Type (Series)	03843
Solution	LNG, Air Gases
Solution Area	Transport, Storage, Refueling, Processes
SKU	CR_03843_3

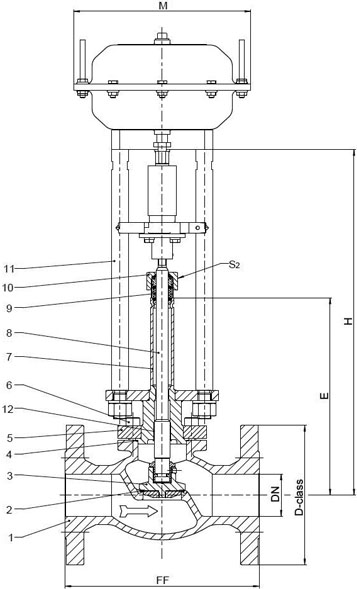

Materials

Materials		DIN EN	ASTM
1	Body	1.4409	A 351 CF3M
2	Valve seal	PTFE / Carbon filled (25%)
3	Disc	1.4404	A 276 Grade 316L
4	Bonnet gasket	Graphite
5	Headpiece	1.4404	A 276 Grade 316L
6	Bolts	1.4571/A4	similar A 194 B8T
7	Elongation tube	1.4571	A 213 TP 316Ti
8	Stem	1.4404	A 276 Grade 316L
9	Gland packing	Graphite / PTFE / MICA
10	Gland nut	1.4404	A 276 Grade 316L
11	Pillars	1.4404	A 276 Grade 316L
12	Bush	CW452K	B 159 UNS C51900

Versions

Type 03843 - Standard design	Technical data
Nominal size	DN	15	20	25	40	50	65	80	100	150
Dimension code - Flange ASME B16.5 class 300	.X.	0400	0600	1000	1400	2000	2400	3000	4000	6000
Flange-Ø	D-class	95	115	125	155	165	190	210	255	320
Face-to-face dimension	FF	140	150	160	200	230	290	310	350	597
Height	H	370	370	375	420	425	510	575	635	685
Length	E	195	200	200	230	235	300	300	300	300
Actuator-Ø	M	dependent on actuator
Wrench size across flats	S₂	30	30	30	36	36	36	36	41	41
Weight w/o actuator	ca. kg	4.6	6.5	8.5	12.0	16.0	30.0	36.0	53.0	100.0
*Kvs - Value	m³/h	4.3	6.7	11.5	22.6	37.1	71.1	104.0	170.0	350.0
*Cv - Value	gal/min	5.0	7.8	13.4	26.3	43.2	82.9	121.3	198.3	408.4
Stroke	mm	10	7	9	11	15	23	23	30	40
