Type 05414 - Check Valve

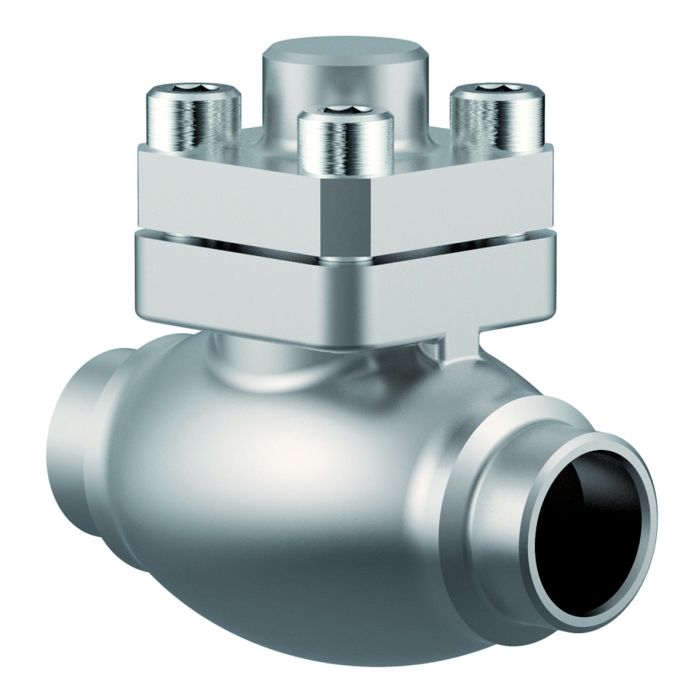

The product shown in the picture may differ from the product sold.
Field of application
Applications:
Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.
Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)
Description
Cryogenic-Check Valves, PN50 (DN150=PN40)
Stainless steel body and cap
with spring, opening pressure ca. 0.1 bar
"¦cleaned and degreased for oxygen service¦"
Part No. 05414.X.000*
* Butt weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312
Part No. 05414.X.0004
Socket weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312
Available options - on request only:
· Welded stainless steel stubs acc. to ISO 1127 or ASTM A312 - length FF + 200mm
· Further pipe wall thicknesses
Certificates
type-examination for LNG (DIN EN 12567)
Canadian Registration Number (CRN)
ClassNK (Class Rules)
License of Special Equipment (China) (TS)
BV (Class Rules)
RINA (Class Rules)
Pressure Equipment Directive (2014/68/EU)
CCS (Class Rules)
DNV (Class Rules)
ABS (Class Rules)
Ukraine (Ukraine)
Data sheets
Operating Instructions
Declarations of Conformity
Pressure Equipment Directive (2014/68/EU)
Pressure Equipment Safety Regulation 2016 (PESR 2016)
Live Stock: Out-Of Stock pcs (ON STOCK)
| Type (Series) | 05414 |
|---|---|
| Solution | LNG, Air Gases |
| Solution Area | Transport, Storage, Refueling, Processes |
| SKU | CR_05414 |

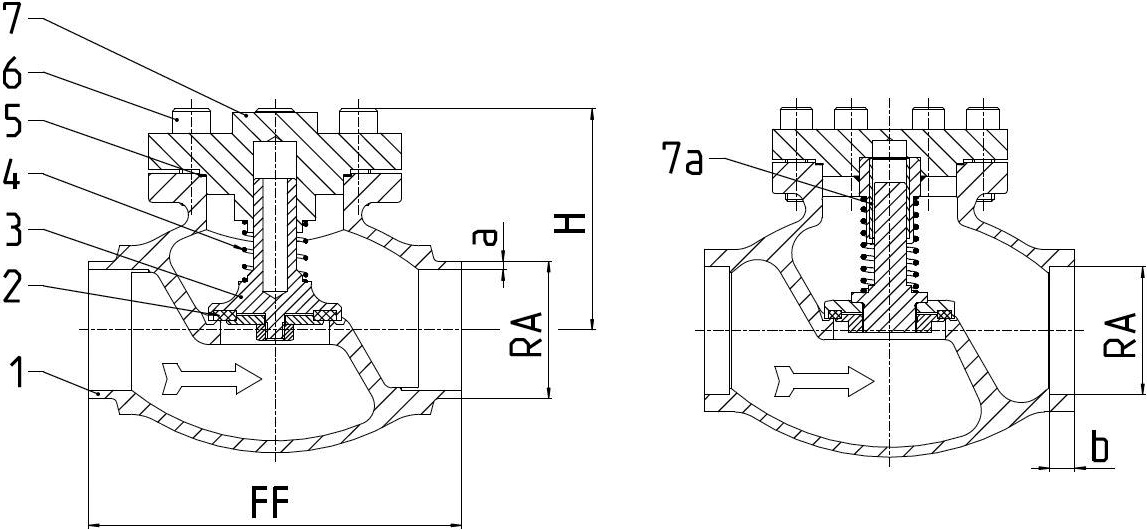

Materials |
DIN EN |
ASTM |
|
|---|---|---|---|
1 |
Body |
1.4308 |
A 351 CF8 |
2 |
Valve seal up to DN50 |
PTFE / Carbon filled (25%) |
|
2a |
Valve seal from DN65 |
PTFE |
|
3 |
Disc |
1.4301 |
A 276 Grade 304 |
4 |
Spring |
1.4571 |
A 313 Grade 316Ti |
5 |
Bonnet gasket |
PTFE |
|
6 |
Bolts |
1.4301/A2 |
A 194 B8 |
7 |
Cap |
1.4301 |
A 276 Grade 304 |
7a |
Bush from DN65 |
PTFE |
Type 05414 - Standard design |
Technical data |
|||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Nominal size |
DN |
10 |
15 |
15 |
20 |
25 |
32 |
40 |
40 |
50 |
65 |
80 |
100 |
150 |
Dimension code |
.X. |
1012 |
1517 |
1521 |
2026 |
2533 |
3238 |
4042 |
4048 |
5060 |
657x |
8088 |
0114 |
0168 |
Face-to-face dimension |
FF |
70 |
85 |
85 |
100 |
115 |
115 |
130 |
130 |
155 |
205 |
245 |
280 |
400 |
Height |
H |
71 |
71 |
71 |
72 |
75 |
87 |
95 |
95 |
95 |
125 |
150 |
185 |
215 |
Outside pipe-Ø ISO 1127 |
RA |
12.0 |
17.2 |
21.3 |
26.9 |
33.7 |
38.0 |
42.4 |
48.3 |
60.3 |
76.1 |
88.9 |
114.3 |
168.3 |
Wall thickness pipe ISO 1127 |
a |
1.0 |
1.6 |
2.0 |
2.0 |
2.0 |
2.0 |
2.0 |
2.0 |
2.0 |
2.9 |
3.2 |
6.0 |
7.1 |
Outside pipe-Ø ASTM A312 |
RA |
13.72 |
17.15 |
21.34 |
26.67 |
33.40 |
- |
42.16 |
48.26 |
60.33 |
73.03 |
88.90 |
114.3 |
168.3 |
Wall thickness pipe ASTM A312 |
a |
dimensions acc. to S10 or S40 |
||||||||||||
Socket depth |
b |
6 |
10 |
10 |
13 |
13 |
- |
13 |
13 |
16 |
16 |
16 |
20 |
20 |
Weight |
ca. kg |
0.7 |
0.95 |
1.0 |
1.3 |
1.6 |
2.4 |
3.9 |
3.9 |
5.7 |
9.6 |
14.6 |
20.0 |
51.0 |
Kvs-Value |
m³/h |
1.6 |
3.8 |
4.3 |
6.7 |
11.5 |
14.0 |
20.6 |
22.6 |
37.1 |
71.1 |
104.0 |
170.0 |
350.0 |
Cv-Value |
gal/min |
1.9 |
4.4 |
5.0 |
7.8 |
13.4 |
16.2 |
23.9 |
26.3 |
43.2 |
82.9 |
121.3 |
198.3 |
408.4 |
