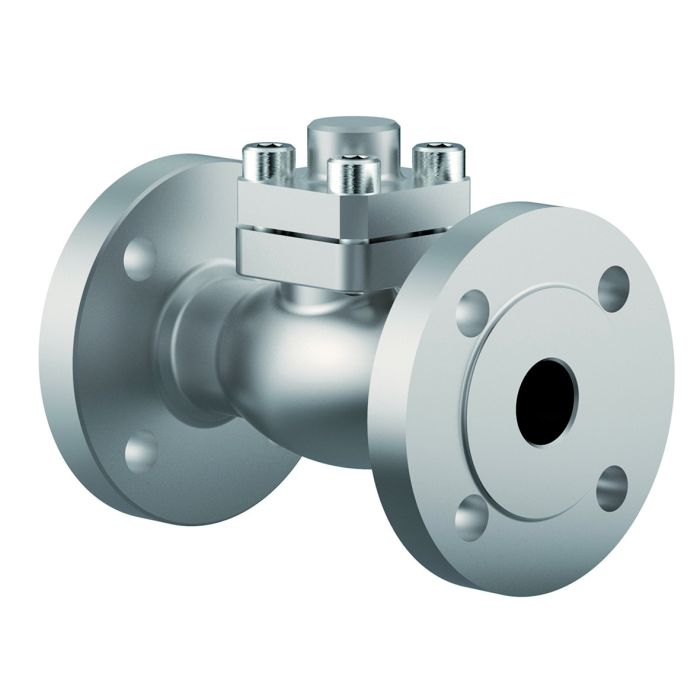

Type 05719 - Check Valve, DIN EN Flanges

Datasheet ID: CR_05719_1

Field of application

chevron-down

Applications:

Approved for hydrogen, air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -255°C / -427°F (18K) up to +120°C / +248°F (393K)

Description

chevron-down

Cryogenic-Check Valves, PN40

Stainless steel body and cap

with spring, opening pressure ca. 0.1 bar

"cleaned and degreased for oxygen service"

Part No. 05719.X.0042

Flanged connection acc. to DIN EN 1092-1 PN40

Disc seal: PTFE / Carbon filled (25%)

Part No. 05719.X.0052

Flanged connection acc. to DIN EN 1092-1 PN40

Disc seal: PTFE

Check valves provide reliable backflow functionality when properly sized.

Based on experience, the minimum operating range of the valve should

be 50% for gases and 40% for liquids in relation to the total capacity of

the valve. Lower flow rates can lead to unstable performance, excessive

noise, and even component failure.

Certificates

chevron-down
type-examination for LNG (DIN EN 12567) chevron-down
LNG-Certificate_01XXX_02XXX_03XXX_05XXX_06XXX_08XXX_09XXX_11XX
LNG-Certificate_DN200-05XXX_08XXX
ClassNK (Class Rules) chevron-down
TA22155M
License of Special Equipment (China) (TS) chevron-down
TSX71000520230058
TS2700G39-2029
BV (Class Rules) chevron-down
33515/C1 BV
SMS.W.I./11744/C.0
RINA (Class Rules) chevron-down
MAC322723XG
Pressure Equipment Directive (2014/68/EU) chevron-down
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1334/Z/00399/24/D/001(00)
0045/202/1201/Z/00469/23/D/001(00)
0045/202/1201/Z/00469/23/D/001(00)
0045/202/1201/Z/00199/26/D/001(00)
CCS (Class Rules) chevron-down
HB24PTB00028
HB25PTB00055
Lloyd's Register (Class Rules) chevron-down
LR25294732TA
LR2695076QAES
DNV (Class Rules) chevron-down
TAP00000K3
ABS (Class Rules) chevron-down
25-0381115-PDA
25-0381115-PDA
092776-7471959-006
Ukraine (Ukraine) chevron-down
UA.276.127.03-26
UA.D.127.04-26

Data sheets

chevron-down
CR_05719_1_en.pdf

Operating Instructions

chevron-down
HEROSE-Manual-CR_05719_1-1

Declarations of Conformity

chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
001TTV (DE, EN, CN)
001TTV (DE, EN, CZ)
001TTV (DE, EN, ES)
001TTV (DE, EN, FR)
001TTV (DE, EN, IT)
001TTV (DE, EN, NL)
001TTV (DE, EN, PL)
001TTV (DE, EN, RU)
002TTV (DE, EN, CN)
002TTV (DE, EN, CZ)
002TTV (DE, EN, ES)
002TTV (DE, EN, FR)
002TTV (DE, EN, IT)
002TTV (DE, EN, NL)
002TTV (DE, EN, PL)
002TTV (DE, EN, RU)
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
002TTV (EN)
003TTV (EN)
More Information
Type (Series) 05719
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
SKU CR_05719_1

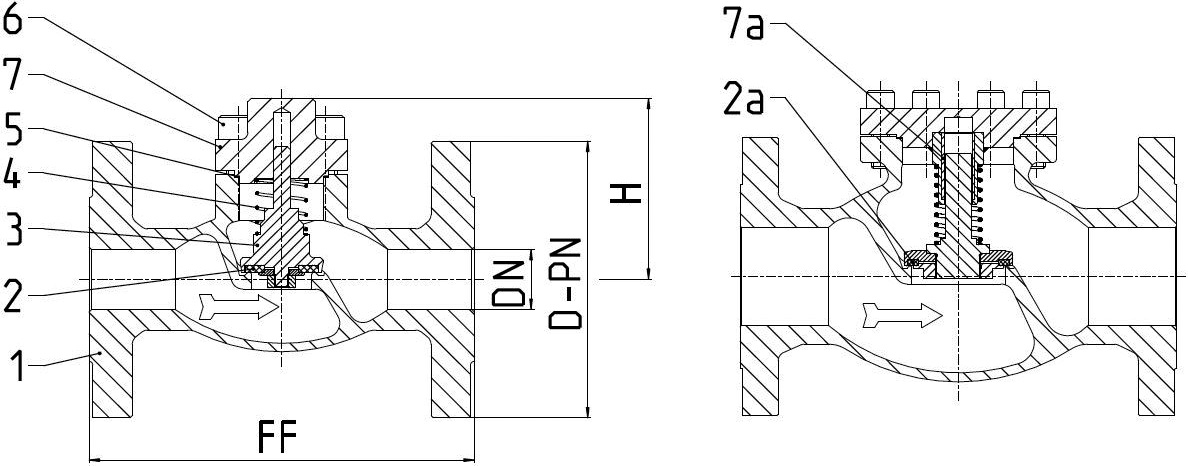

Materials

Materials

DIN EN

ASTM

1

Body

1.4409

A 351 CF3M

2

Valve seal up to DN50

PTFE / Carbon filled (25%)

2a

Valve seal from DN65

PTFE

3

Disc

1.4404

A 276 Grade 316L

4

Spring

1.4571

A 313 Grade 316Ti

5

Bonnet gasket

Graphite

6

Bolts

1.4571/A4

similar A 194 B8T

7

Cap

1.4404

A 276 Grade 316L

7a

Bush from DN65

PTFE

Versions

Type 05719 - Standard design

Technical data

Nominal size

DN

15

20

25

40

50

65

80

100

150

Dimension code - Flange EN 1092-1 PN40

.X.

0150

0200

0250

0400

0500

0650

0800

1000

1500

Flange-Ø

D-PN

95

105

115

150

165

185

200

235

300

Face-to-face dimension

FF

140

150

160

200

230

290

310

350

550

Height

H

70

75

75

95

92

125

150

166

215

Weight

ca. kg

2.9

3.4

4.4

6.4

11.6

19.2

25.2

39.8

72.7

Kvs-Value

m³/h

4.3

6.7

11.5

22.6

37.1

71.1

104.0

170.0

350.0

Cv-Value

gal/min

5.0

7.8

13.4

26.3

43.2

82.9

121.3

198.3

408.4
