Type 05719 - Check Valve, DIN EN Flanges

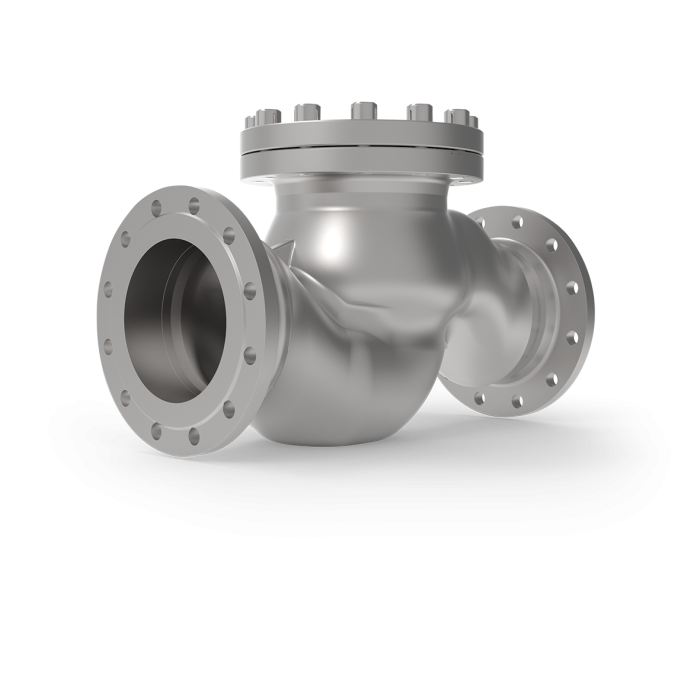

The product shown in the picture may differ from the product sold.
Field of application
Applications:
Approved for hydrogen, air gases, vapours and cryogenic liquefied gases incl. LNG.
Working temperature: -255°C / -427°F (18K) up to +120°C / +248°F (393K)
Description
Cryogenic-Check Valves, PN25
Stainless steel body and cap
with spring, opening pressure ca. 0.1 bar
"¦cleaned and degreased for oxygen service¦"
Part-No. 05719.X.0052
Flanged connection acc. to DIN EN 1092-1 PN25
Disc seal: PTFE
Certificates
type-examination for LNG (DIN EN 12567)
ClassNK (Class Rules)
License of Special Equipment (China) (TS)
BV (Class Rules)
RINA (Class Rules)
Pressure Equipment Directive (2014/68/EU)
CCS (Class Rules)
Lloyd's Register (Class Rules)
DNV (Class Rules)
ABS (Class Rules)
Ukraine (Ukraine)
Data sheets
Declarations of Conformity
Pressure Equipment Directive (2014/68/EU)
Pressure Equipment Safety Regulation 2016 (PESR 2016)
Live Stock: Out-Of Stock pcs (ON STOCK)
| Type (Series) | 05719 |
|---|---|
| Solution | LNG, Air Gases |
| Solution Area | Transport, Storage, Refueling, Processes |
| SKU | CR_05719_4 |

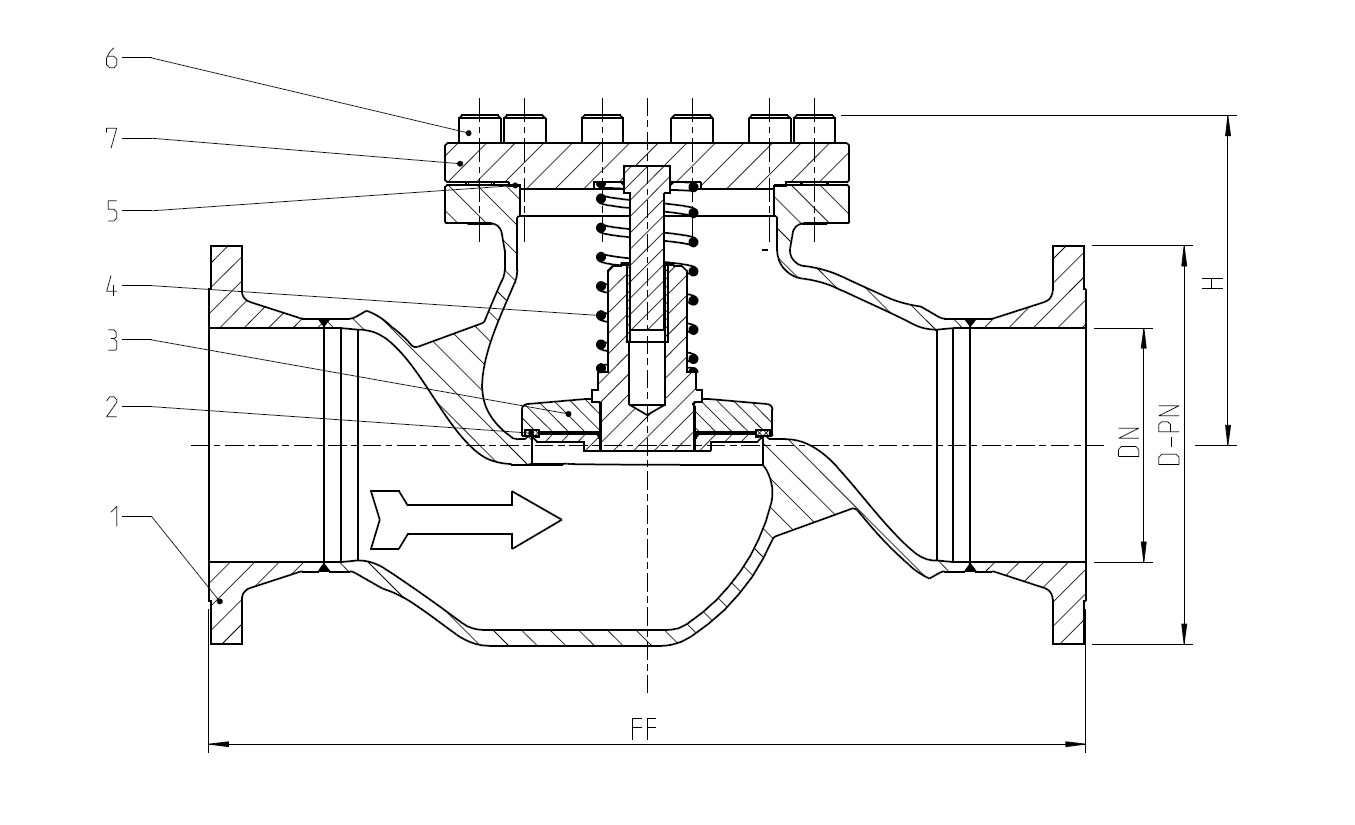

Materials |
DIN EN |
ASTM |
|
|---|---|---|---|
1 |
Body |
1.4409 |
A 351 CF3M |
2 |
Valve seal |
PTFE |
|
3 |
Disc |
1.4404 |
A 276 Grade 316L |
4 |
Spring |
1.4571 |
A 313 Grade 316Ti |
5 |
Bonnet gasket |
Graphite |
|
6 |
Bolts |
1.4571/A4 |
similar A 194 B8T |
7 |
Cap |
1.4404 |
A 276 Grade 316L |
7a |
Bush from DN65 |
PTFE |
Type 05719 - Standard design |
Technical data |
|
|---|---|---|
Nominal size |
DN |
200 |
Dimension code - Flange EN 1092-1 PN25 |
.X. |
0219 |
Flange-Ø |
D-PN |
340 |
Face-to-face dimension |
FF |
760 |
Height |
H |
285 |
Weight |
ca. kg |
146 |
Kvs-Value |
m³/h |
680.0 |
Cv-Value |
gal/min |
793.0 |
