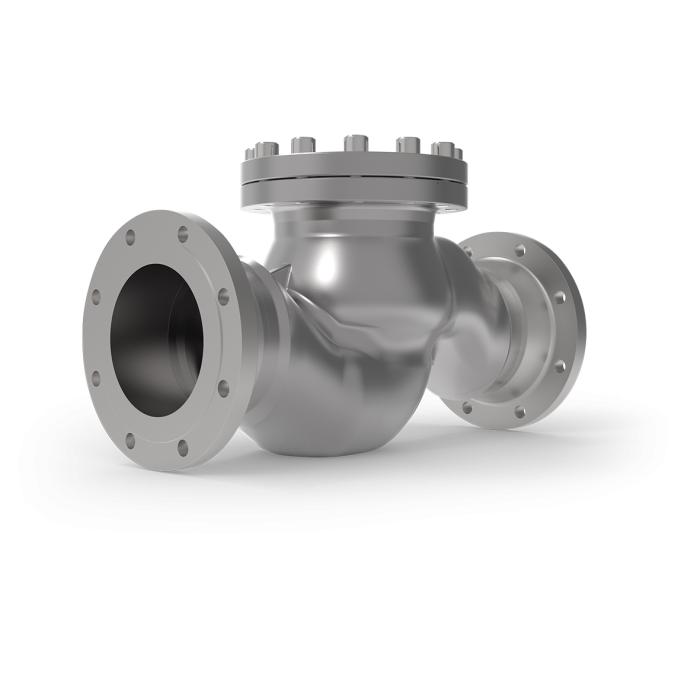

Type 05719 - Check Valve, ASME B16.5 Flanges

Datasheet ID: CR_05719_6

Field of application

chevron-down

Applications:

Approved for hydrogen, air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -255°C / -427°F (18K) up to +120°C / +248°F (393K)

Description

chevron-down

Cryogenic-Check Valves, class 300 (max. PN25)

Stainless steel body and cap

with spring, opening pressure ca. 0.1 bar

"¦cleaned and degreased for oxygen service¦"

Part-No. 05719.X.0051

Flanged connection acc. to ASME B16.5 class 300

Disc seal: PTFE

Certificates

chevron-down
type-examination for LNG (DIN EN 12567) chevron-down
LNG-Certificate_01XXX_02XXX_03XXX_05XXX_06XXX_08XXX_09XXX_11XX
LNG-Certificate_DN200-05XXX_08XXX
ClassNK (Class Rules) chevron-down
TA22155M
License of Special Equipment (China) (TS) chevron-down
TSX71000520230058
TSX71000120220017
TS2700G39-2029
BV (Class Rules) chevron-down
33515/C1 BV
SMS.W.I./11744/C.0
RINA (Class Rules) chevron-down
MAC322723XG
Pressure Equipment Directive (2014/68/EU) chevron-down
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1334/Z/00399/24/D/001(00)
0045/202/1201/Z/00469/23/D/001(00)
0045/202/1201/Z/00469/23/D/001(00)
CCS (Class Rules) chevron-down
HB24PTB00028
HB25PTB00055
Lloyd's Register (Class Rules) chevron-down
LR25294732TA
LR2695076QAES
DNV (Class Rules) chevron-down
TAP00000K3
ABS (Class Rules) chevron-down
25-0381115-PDA
25-0381115-PDA
092776-7471959-006
Ukraine (Ukraine) chevron-down
UA.276.127.03-26
UA.D.127.04-26

Data sheets

chevron-down
CR_05719_6_en.pdf

Declarations of Conformity

chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
001TTV (DE, EN, CN)
001TTV (DE, EN, CZ)
001TTV (DE, EN, ES)
001TTV (DE, EN, FR)
001TTV (DE, EN, IT)
001TTV (DE, EN, NL)
001TTV (DE, EN, PL)
001TTV (DE, EN, RU)
002TTV (DE, EN, CN)
002TTV (DE, EN, CZ)
002TTV (DE, EN, ES)
002TTV (DE, EN, FR)
002TTV (DE, EN, IT)
002TTV (DE, EN, NL)
002TTV (DE, EN, PL)
002TTV (DE, EN, RU)
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
002TTV (EN)
003TTV (EN)
More Information
Type (Series) 05719
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
SKU CR_05719_6

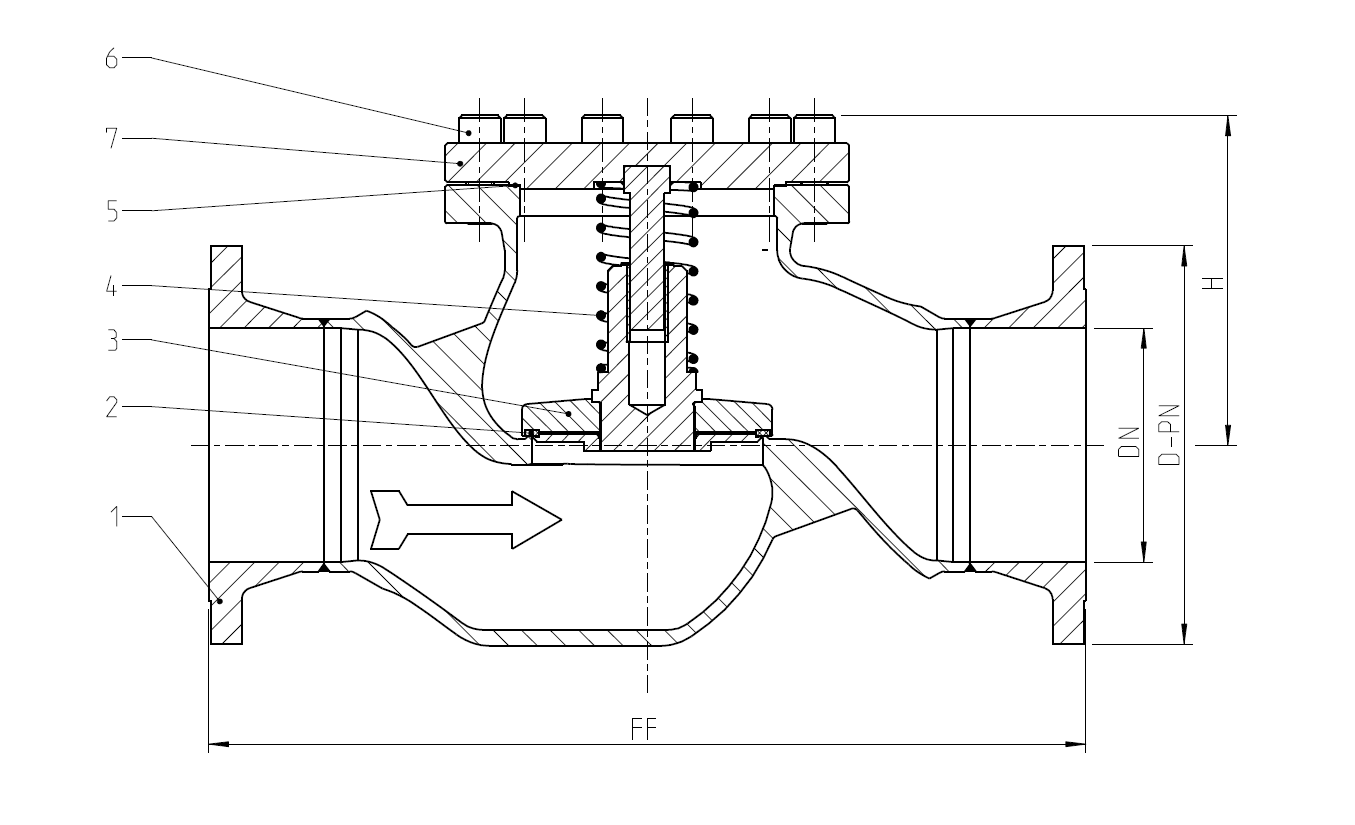

Materials

Materials

DIN EN

ASTM

1

Body

1.4409

A 351 CF3M

2

Valve seal

PTFE

3

Disc

1.4404

A 276 Grade 316L

4

Spring

1.4571

A 313 Grade 316Ti

5

Bonnet gasket

Graphite

6

Bolts

1.4571/A4

similar A 194 B8T

7

Cap

1.4404

A 276 Grade 316L

7a

Bush from DN65

PTFE

Versions

Type 05719 - Standard design

Technical data

Nominal size

DN

200

Dimension code - Flange ASME B16.5 class 300

.X.

0219

Flange-Ø

D-class

345

Face-to-face dimension

FF

760

Height

H

285

Weight

ca. kg

146

Kvs-Value

m³/h

680.0

Cv-Value

gal/min

793.0
?
